ATTAX-MANUAL
ENGLISH
-5
0
+5
0
5
10
MIDLEAD GAIN BASS
-5
0
+5 -5
0
+5
0
5
10 0
5
10 0
5
10
DRY WET
MAINS
LEAD
MODE 2
TREBLE FX MIX MASTER
MIDI
TREBLE LEAD MASTER
MASTER
REVERB
FX LOOP
+5 -5
0
+5

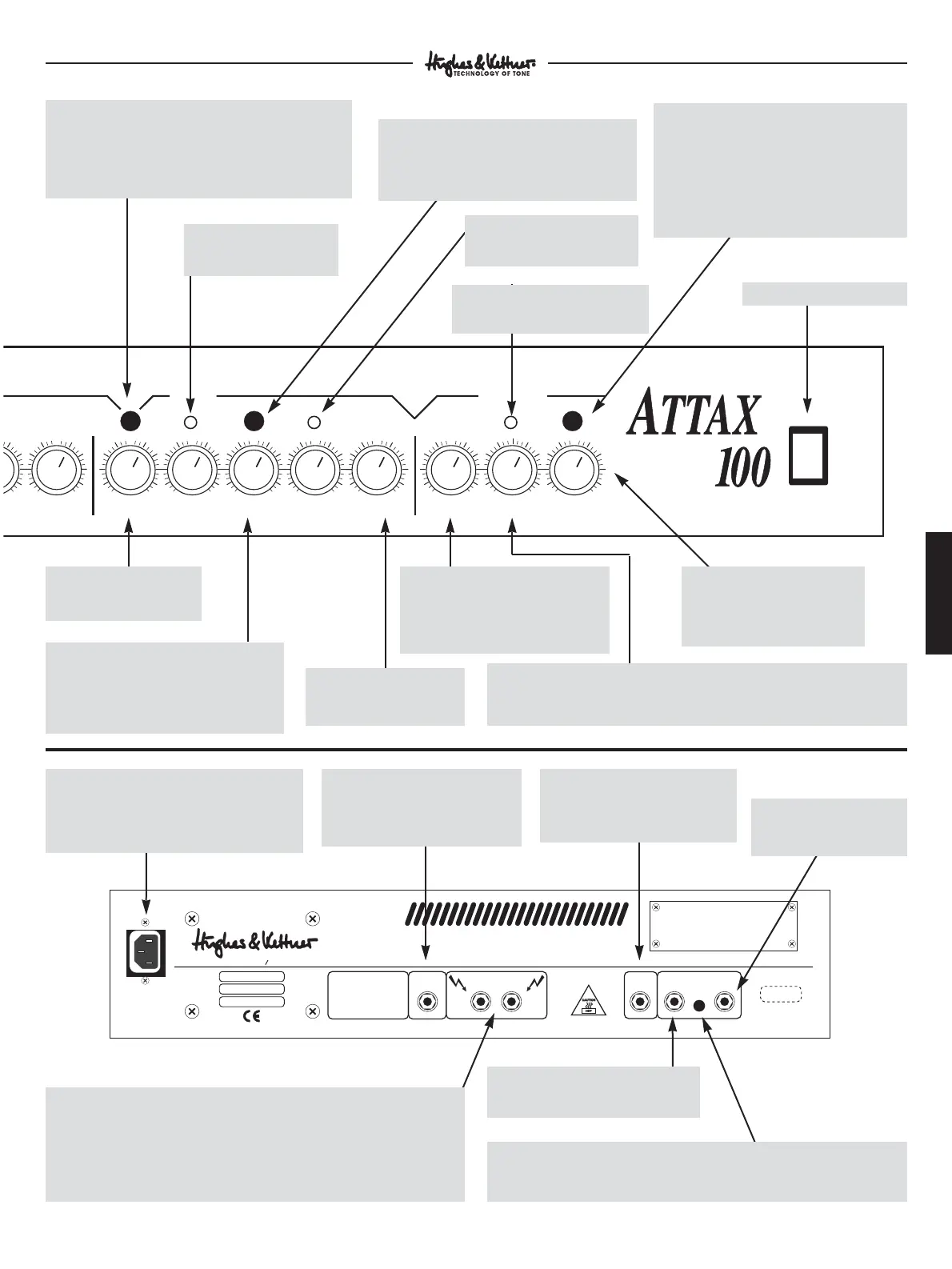

EQ SECTION: Active BASS, passive MID
and TREBLE tone controls for the LEAD
channel. Here too, MID and TREBLE
influence each other for the widest possi-
ble range of subtle tonal variations.
LEAD SELECTOR SWITCH: Switches back and forth
between the CLEAN/CRUNCH section and the LEAD
channel. The LEAD channel is active when the but-
ton is pressed. Once the MSM-1 Module has been
installed, this switching function can be executed via
MIDI
LEAD GAIN: Determines
the amount of distortion
in the LEAD channel.
LEAD MASTER: Controls
the volume of the LEAD
channel.
REVERB: Controls how much inte-
grated reverb is added to the signal.
Reverb is automatically adjusted for
each channel when you switch
channels.
RED MODE 2 LED: This red
LED illuminates when the
LEAD 2 mode is active.
MASTER: Determines the over-
all output level of the ATTAX
100. The level of the RECOR-
DING OUT signal is unaffec-
ted by the MASTER control.
FX MIX: This control lets you decide how much of the processed signal
is mixed in with the original signal. Determines the original signal's volu-
me and its relationship to that of the connected effects device's processed
signal. DRY = original signal only, WET = processed signal only.
MODE 2: Selects either the LEAD 1 or LEAD
2 modes. LEAD 2 is active when the button
is pressed. Once the MSM-1 Module has
been installed, this switching function can
be executed via MIDI.
RED LEAD LED: The red
LED illuminates when the
LEAD channel is active.
GREEN FX LED: Lights when the
ATTAX 100 FX LOOP is active.
MAINS: AC power switch.
MIDI LEARN: Installation of the MSM-1
MIDI Module is a prerequisite for MIDI
capability. After installation, pressing the
MIDI button saves the current
CHANNEL/FX LOOP configuration.
Installation takes just a few minutes and
does not require soldering. Talk to your
Hughes & Kettner dealer for details.
TO INSTALL MIDI MODULE:
DISCONNECT AC POWER CORD
BEFORE REMOVING THIS COVER
Max. power
consumption
240 VA
OUTPUT 120 WATTS
MIN. IMP. 4 Ohms
CAUTION!
TO PREVENT THE RISK OF FIRE AND
SHOCK HAZARD DON´T EXPOSE
THIS APPLIANCE TO MOISTURE OR
RAIN. DO NOT OPEN CASE;
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
LEAVE ENOUGH SPACE FOR PROPER VENTILATION!
FX-LOOP
SENDRETURN
REC
OUT
Ser. No.
MADE IN ST. WENDEL GERMANY
50 - 60 Hz
230 V~
117 V~
100 V~
HEAD
PHONES
-10 dB
SPEAKERS: 1/4" jacks for connecting speakers. The two jacks are a paral-
lel circuit. For these outputs, ensure the overall impedance for the
connected speakers is not lower than 4 ohms! For the ATTAX 100 combo
version, you can connect an additional 60-watt cabinet in parallel to the
internal speaker. Make sure this cabinet has a rating of at least 8 ohms.
For the head version, you can connect one cabinet with a minimum
rating of 120 watts/4 ohms, or two 8-ohm cabinets.
RETURN: Connect this jack to the
OUTPUT jack of your effects pro-
cessor.
- 10 dB SWITCH: This switch allows you to reduce the signal level being
sent to external effects devices. Press this switch for instrument level pro-
cessors (e.g. stomp boxes).
MAINS: Connect the included Euro-norm
mains cord to this socket. Ensure the amp's
voltage rating matches your local AC voltage
rating before you plug the cord into the wall
socket.
HEADPHONES: 1/4" headphone
jack. The speaker is automatically
switched off when a plug is inser-
ted into this jack.
SEND: Connect your pro-
cessor's INPUT to this
jack.
RECORDING OUT: Feeds a
mixing console, DI box or addi-
tional power amp and speaker
cabinet.
