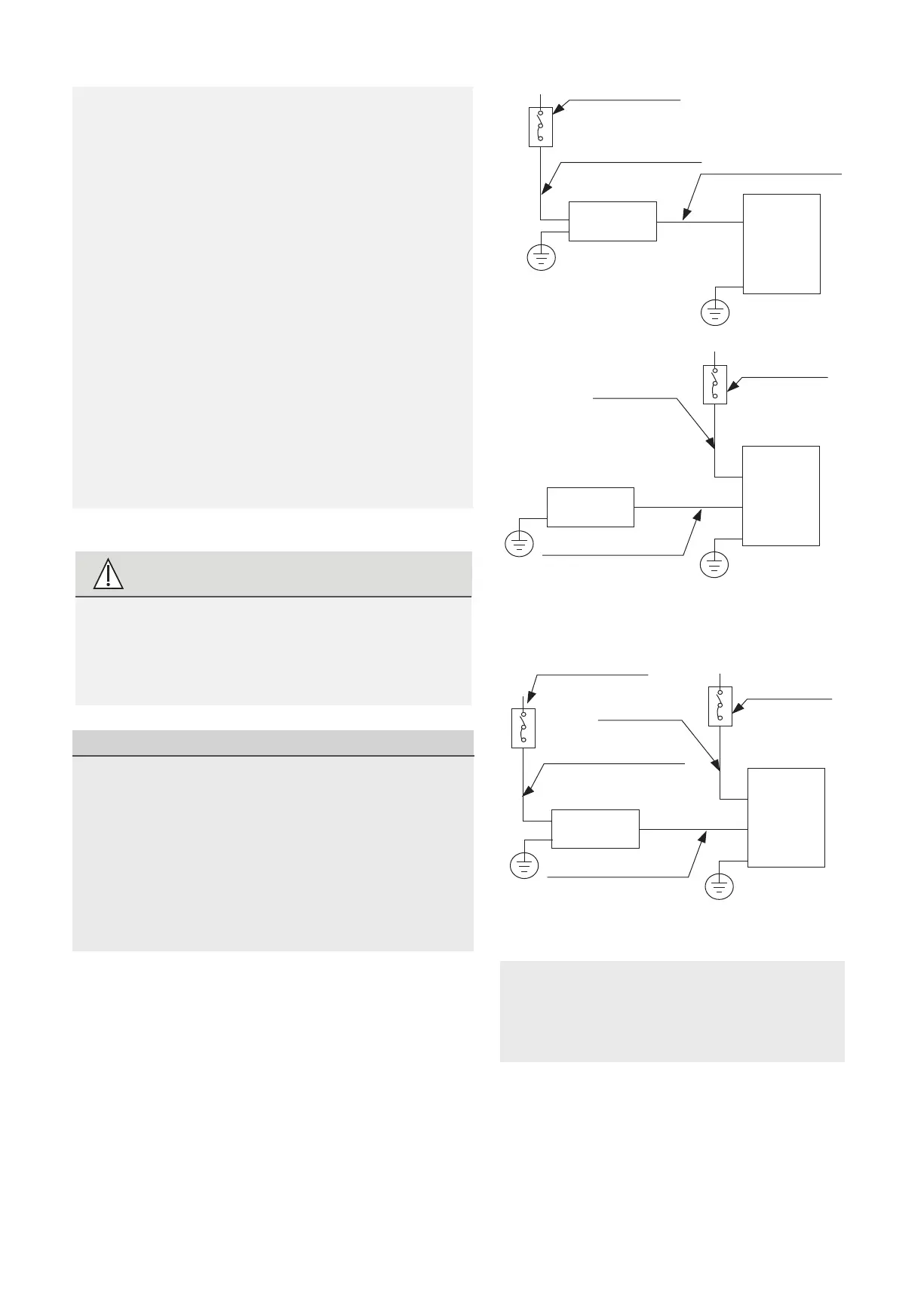

NOTE: The cographs are for explanation
purpose only. Your machine may be
slightly different. The actual shape shall
prevail.
13. Make sure that you do not cross your
electrical wiring with your signal wiring.This
may cause distortion and interference.
14. The unit must be connected to the main
outlet. Normally, the power supply must
have a impedance of 32 ohms.
15. No other equipment should be connected to
the same power circuit.
16. Connect the outdoor wires before connecting
the indoor wires.
To avoid getting an electric shock, never touch
the electrical components soon after the
power supply has been turned off.
After turning off the power, always wait 10
minutes or more before you touch the
electrical components.
11.
12.
WARNING
BEFORE PERFORMING ANY
ELECTRICAL OR WIRING WORK,
TURN OFF THE MAIN POWER TO
THE SYSTEM.
NOTE ON AIR SWITCH
When the maximum current of the air conditioner
is more than 16A, an air switch or leakage
protection switch with protective device shall be
used(purchased seperately) .
When the maximum current of the air conditioner
is less than 16A, the power cord of air conditioner
shall be equipped with plug (purchased
seperately) .
Indoor unit
Outdoor unit
Air switch
(purchased seperately)
(purchased seperately)
Outdoor unit power wires
Indoor & Outdoor
connective wires
(A)
Indoor unit
Outdoor unit
Air switch
(purchased
seperately)
Air switch
(purchased seperately)
(purchased seperately)
Indoor unit power wires
Indoor & Outdoor
connective wires
Outdoor unit power wires
Indoor unit
Outdoor unit
Air switch
(purchased
seperately)
(purchased seperately)
Indoor unit power wires
Indoor & Outdoor
connective wires
(B)
(C)
31
