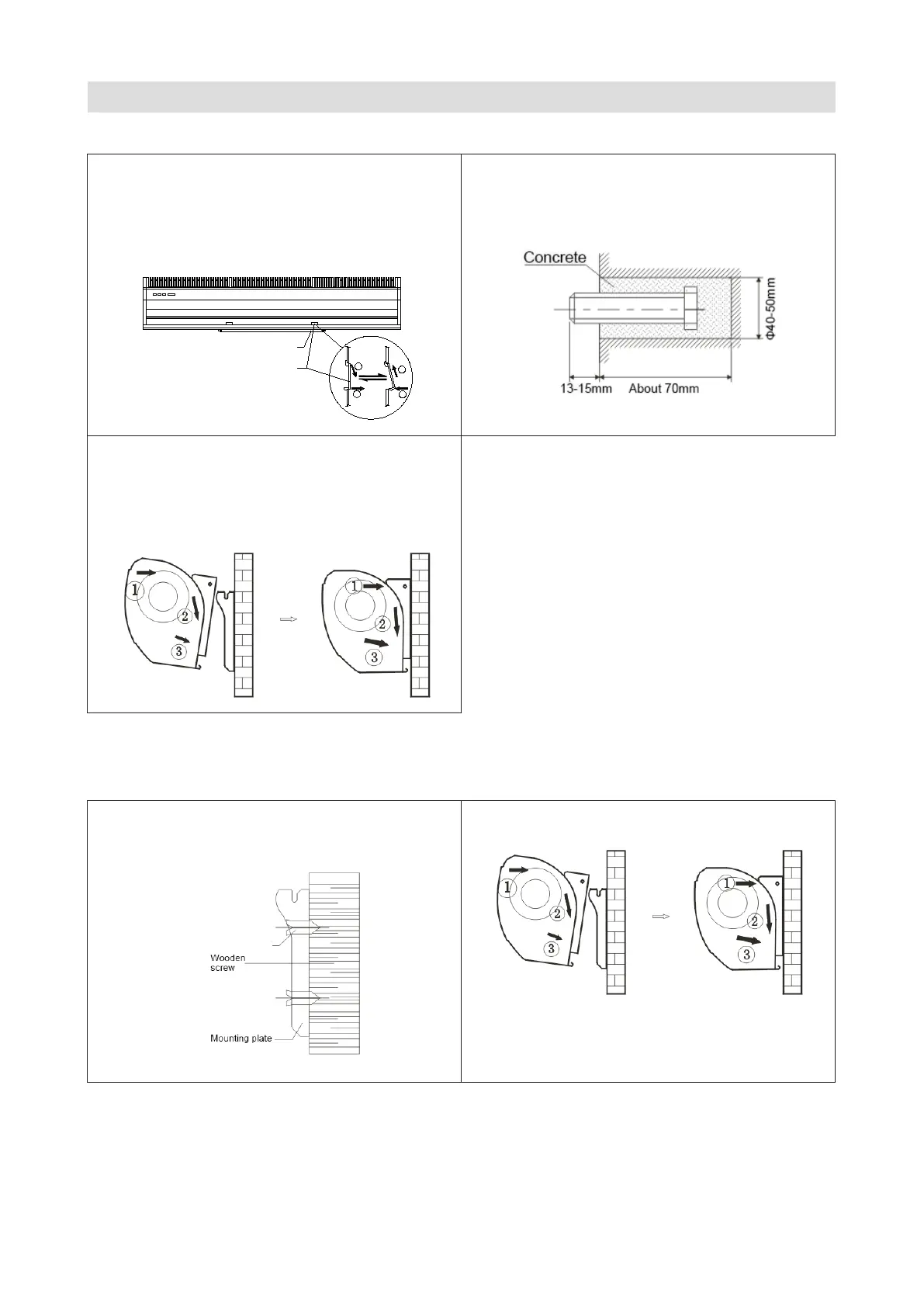

6. INSTALLATION
A. Installing on the concrete wall:
B. Installing on the wooden wall
4.1.1 Removed the mounting plate
Remove the plastic parts, unclamping the
xed screws on the back of main body to re-
move the mounting plate.
1
2
MOUNTING PLATE
2
1
PLASTIC PARTS
4.1.2 Fix the bolts in the proper position (x
the position with the mounting plate and pour
cement into the bolt holes.)
4.1.3 Install the main body
Set the main body onto the upper end of the
mounting plate, and clamp it as below. Make
sure it’s well xing
4.2.1 Fix the mounting plate in the proper po-
sitions with tapping screw.
4.2.2 Same as the step 4.1.4.
4
