5. If it is necessary to replace the display enclosure or any of the display assembly internal
components, remove the following screw covers and screws:

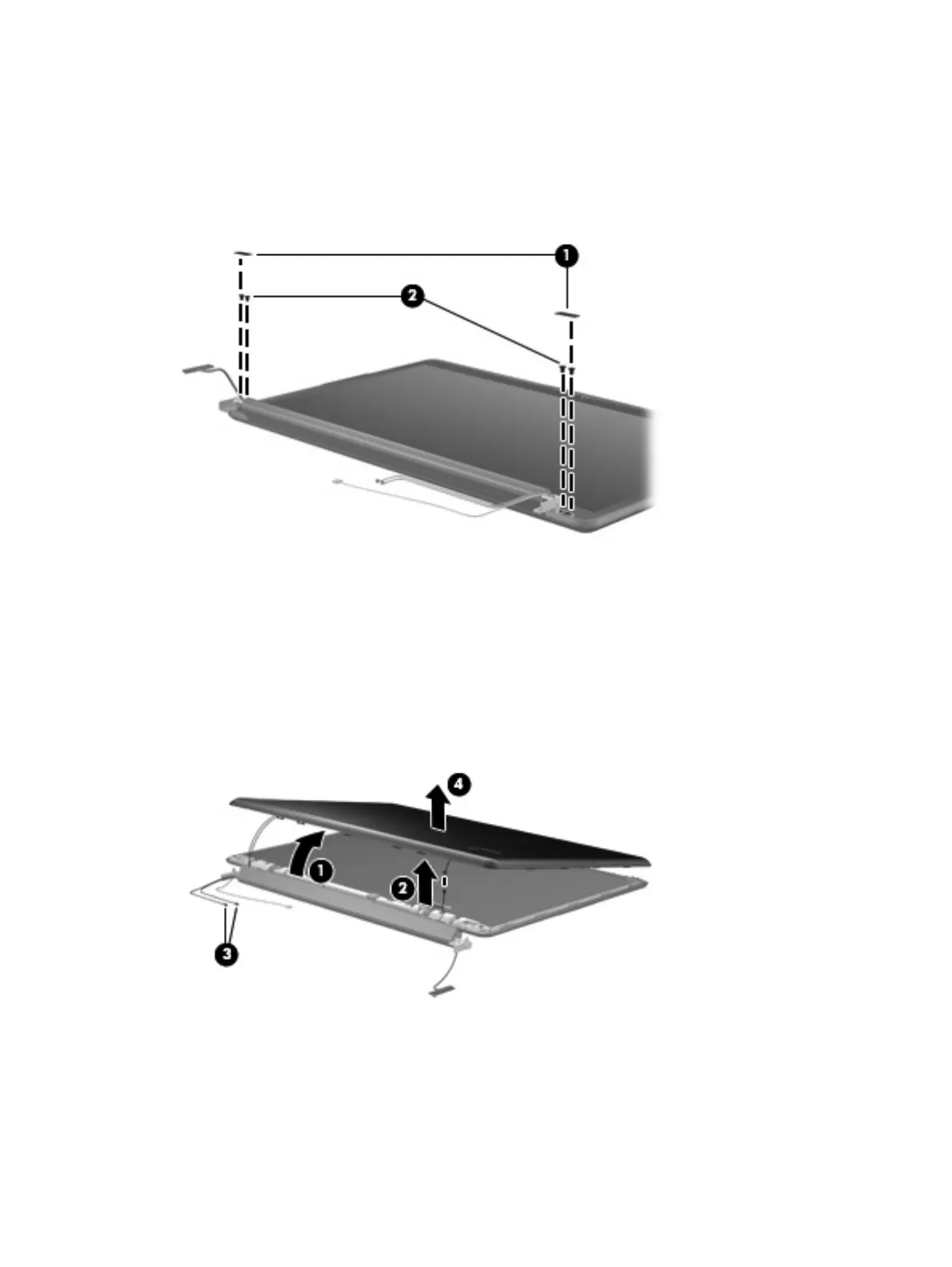

(1) Two rubber screw covers on the display bezel bottom edge. The display rubber screw covers
are included in the Display Rubber Kit, spare part number 516446-001.
(2) Four Phillips PM2.5×7.0 screws.
6. Turn the display assembly upside down, with the bottom toward you.
7. Lift and release the bottom of the display enclosure (1).
8. Disconnect the display logo cable (2) from the display panel cable.
9. Route the webcam cable and antenna cables (3) through the hinge channel.
10. Remove the display enclosure (4). The display enclosure is available using spare part number
516443-001, and includes the display logo LED board and the wireless antenna transceivers and
cables.
66 Chapter 4 Removal and replacement procedures
