3.

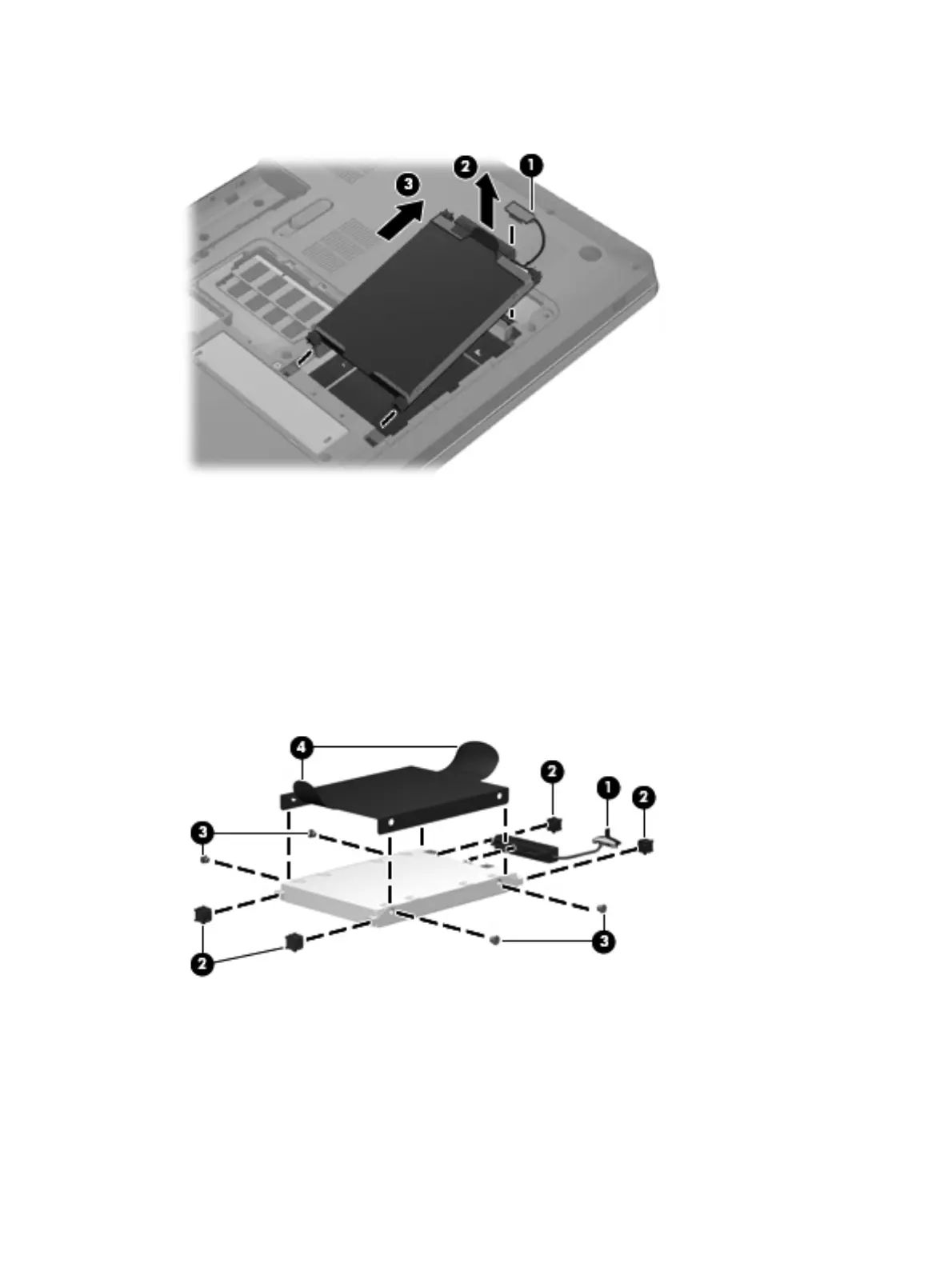

Use the Mylar tab to lift the hard drive up (2), and then slide it to the right (3) to release it from the
hard drive bay.
4. Remove the hard drive from the hard drive bay.
5. To replace the hard drive bracket or any of the hard drive bracket components, remove the
following:
●
Hard drive connector cable (1)
●
Four rubber isolators (2)
●
Four screws (3) that secure the hard drive bracket rails and Mylar cover to the hard drive
●
Left and right hard drive bracket rails with mylar cover tabs (4)
Reverse this procedure to reassemble and install the hard drive.
56 Chapter 4 Removal and replacement procedures
