4–38 Maintenance and Service Guide
Removal and replacement procedures

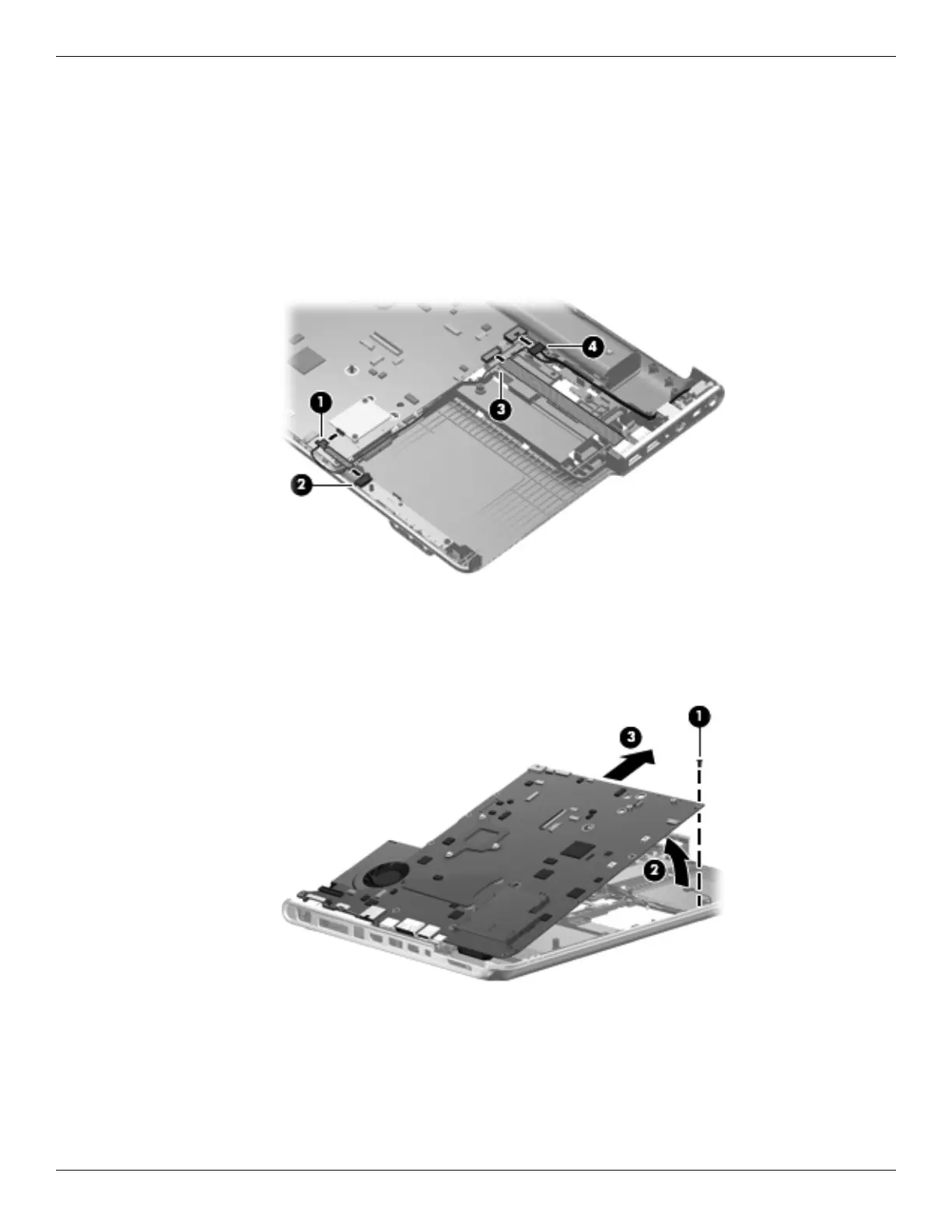

Remove the system board:
1. Disconnect the following cables from the system board:
1 Modem module cable
2 Audio/infrared board cable
✎
The audio/infrared board cable connects to a LIF connector on the system board.
3 USB board cable
✎
The USB board cable connects to a LIF connector on the system board.
4 Power connector cable
2. Remove the Phillips PM2.5×7.0 screw 1 that secures the system board to the base enclosure.
3. Lift up on the right side 2 of the system board until it rests at approximately a 45-degree angle.
4. Lift the system board to the right and up and out of the base enclosure 3.
Reverse this procedure to install the system board.
