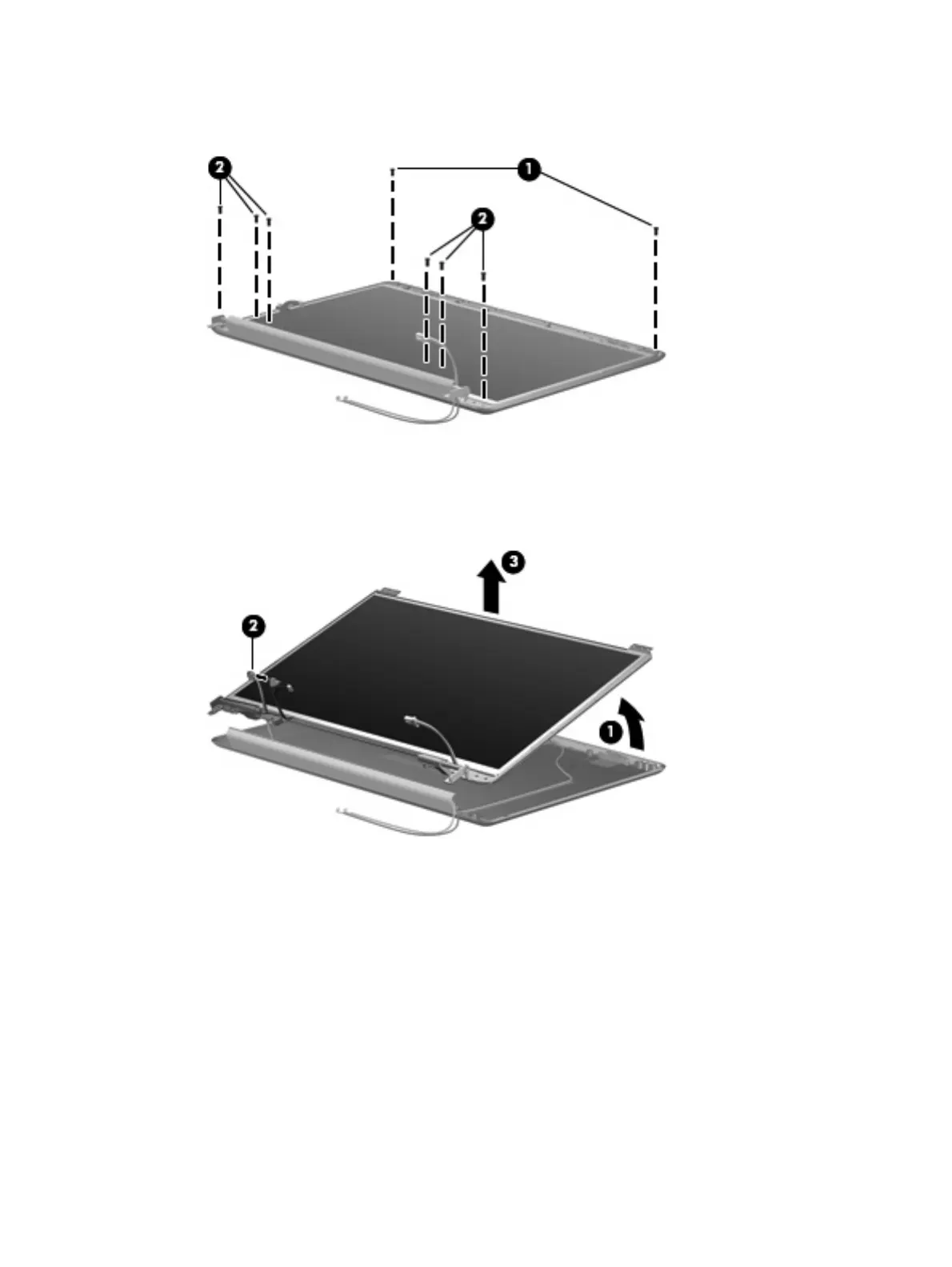

29. If it is necessary to replace the display panel, remove the two Phillips PM2.5×5.0 screws (1) from
the top corners and the six Phillips PM2.5×5.0 screws (2) from the display hinges.
30. Flex the bottom (1) of the display panel back and release the display hinges. Disconnect the display
LED cable (2) from the display panel cable. Remove the display panel (3). Display panels are
available using spare part number 511868-001 (16-inch WXGA BrightView display panel) or
512363-001 (15.6-inch WXGA BrightView display panel).
31. If it is necessary to replace the display hinges, remove the two Phillips PM2.0×3.0 screws (1) that
secure each display hinge to the display panel.
Component replacement procedures 89
