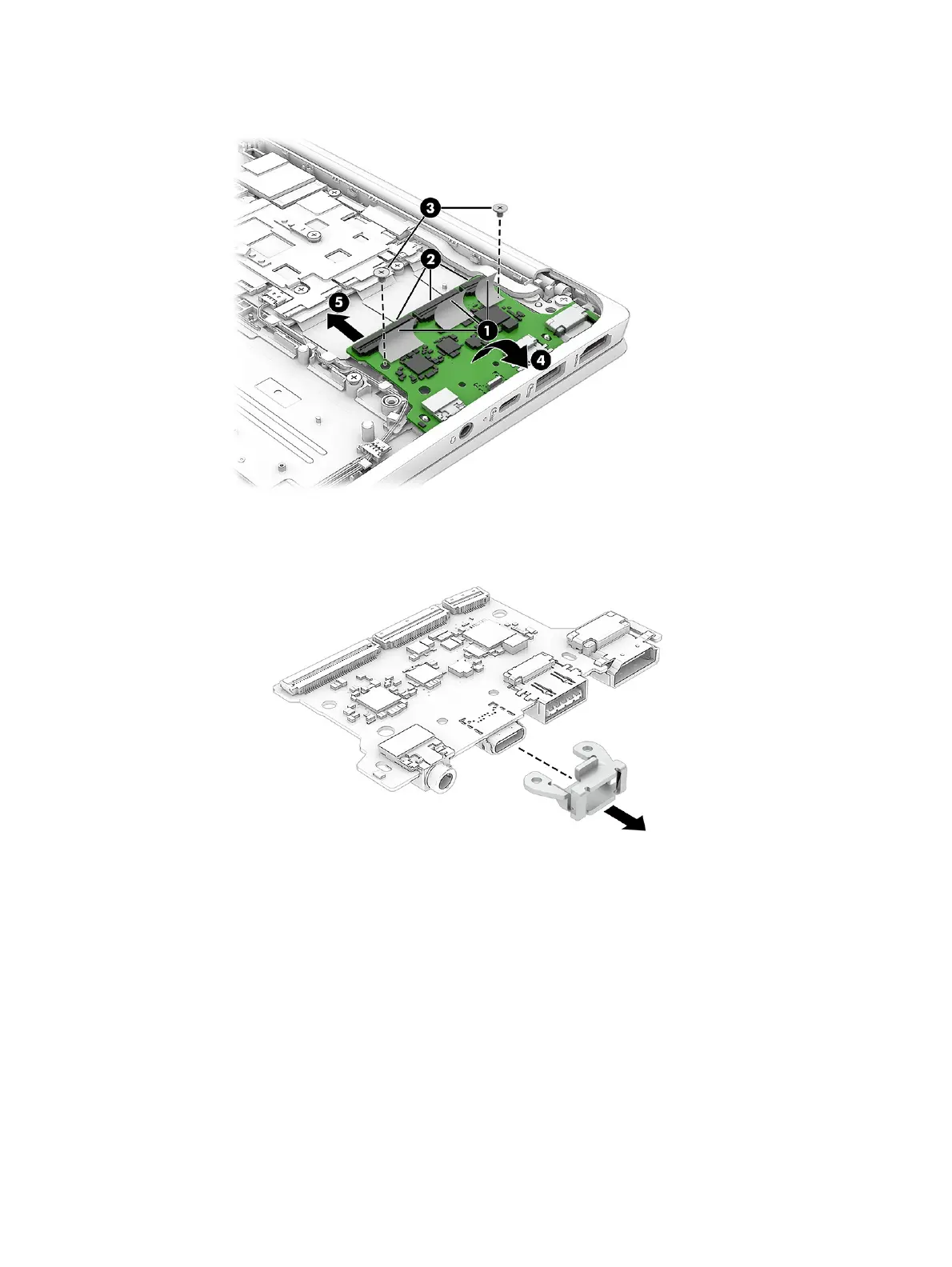

g. Lift the inside of the board (4) up, and then pull the board (5) into the computer to remove it.
h. Pull the USB bracket off the board. Be sure to install the bracket on the replacement board.
2. To remove the small I/O board:
a. Lift (do not remove) the tape (1) from the connector on the board.
b. Disconnect the cable from the ZIF connector (2) on the board.
c. Remove the two Phillips M2.0 × 2.5 screws (3) from the bracket on the board, and then remove
the bracket (4).
I/O boards
39
