Removal and replacement procedures

Maintenance and Service Guide 4–41

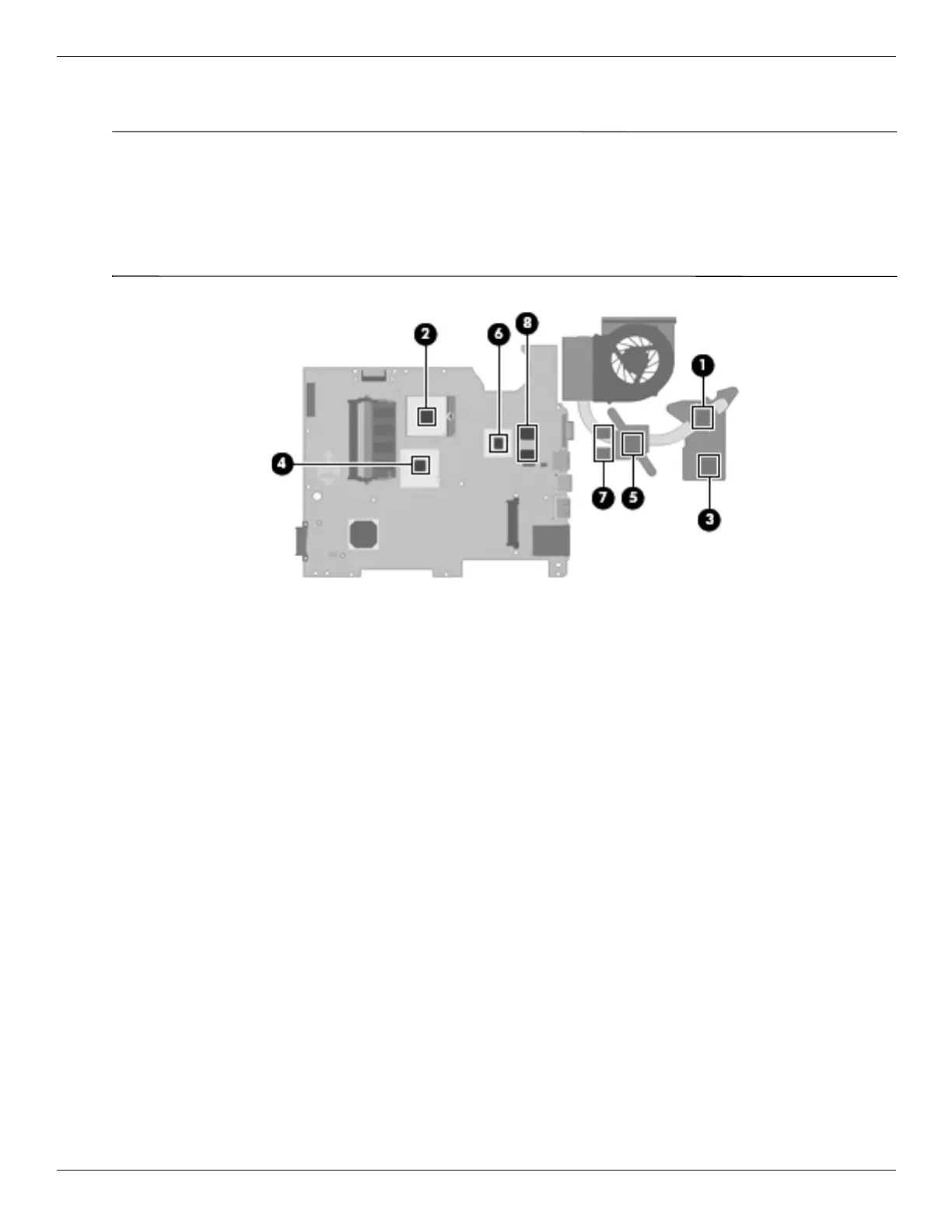

The following illustration shows the replacement thermal material locations for computer models equipped with

graphics subsystems with discrete memory.

✎

The thermal material must be thoroughly cleaned from the surfaces of the fan/heat sink assembly and the system

board components each time the fan/heat sink assembly is removed. Thermal grease is located on the section of

the fan/heat sink assembly 1 that services the processor 2. A thermal pad is located on the section of the

fan/heat sink assembly 3 that services the Northbridge chip 4. Thermal pads are also located on intermediate

sections of the fan/heat sink assembly 5 and 7 that service components 6 and 8 on the system board.

Replacement thermal grease and pads are included with all system board, fan/heat sink assembly, and processor

spare part kits.

Reverse this procedure to install the fan/heat sink assembly.
