Removal and replacement procedures 4–46

Power connector cable

Before removing the power connector cable, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on,

and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then

unplugging the AC adapter from the computer.

4. Remove the following components:

a. Remove the battery (see “Battery” on page 4-7).

b. Optical drive (see “Optical drive” on page 4-8)

c. Hard drive (see “Hard drive” on page 4-10)

d. Keyboard (see “Keyboard” on page 4-17)

e. Keyboard cover (see “Keyboard cover” on page 4-20)

f. Power button board (see “Power button board” on page 4-22)

g. Display assembly (see “Display assembly” on page 4-23)

h. Top cover (see “Top cover” on page 4-30)

i. Bluetooth module (see “Bluetooth module” on page 4-35)

j. System board (see “System board” on page 4-38)

✎

The power cable connector was released from its mounting clip in the base assembly during system

board removal.

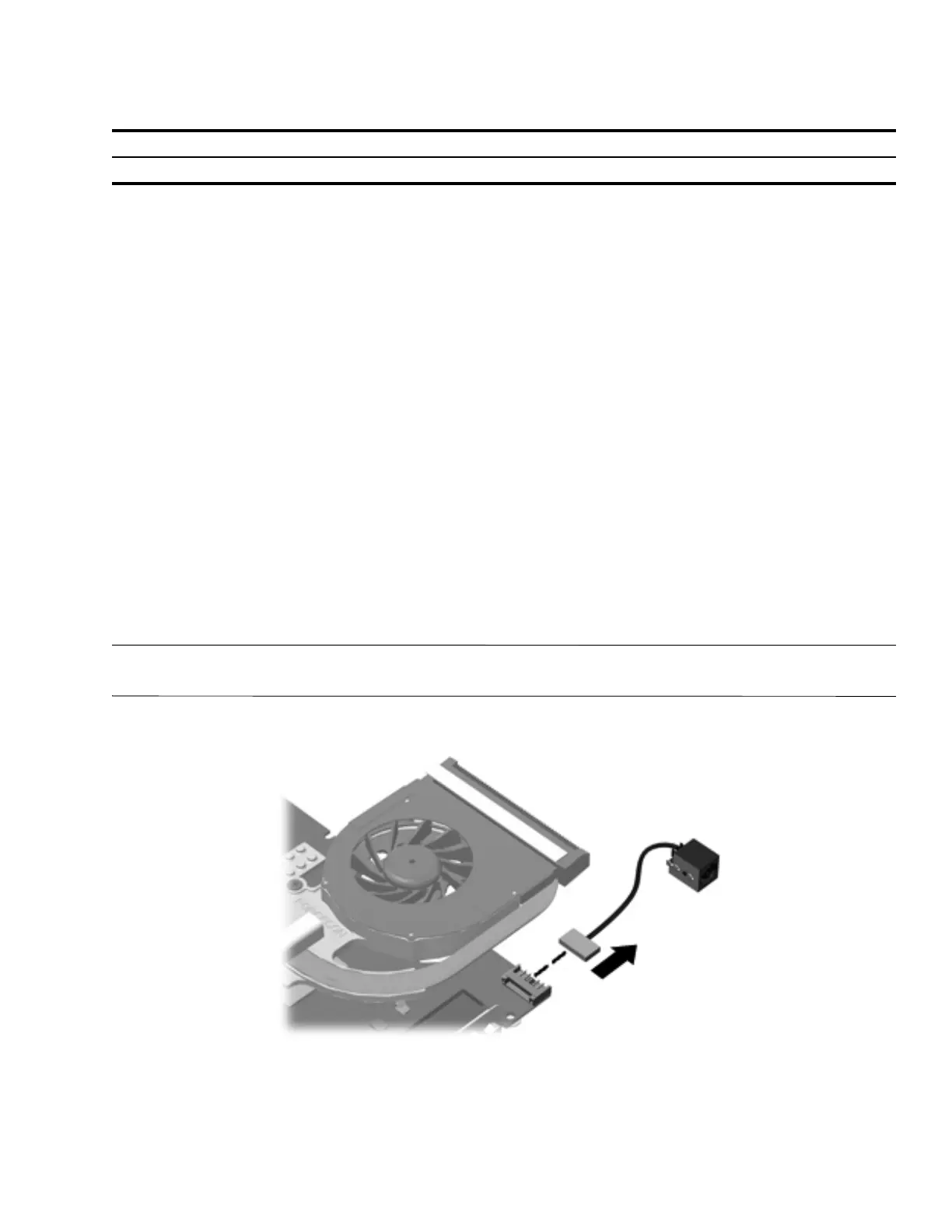

To remove the power connector cable, disconnect the cable connector from the system board.

Reverse this procedure to install the power connector cable.

Description Spare Part Number

Power connector cable 496835-001
