Removal and replacement procedures 4–45

g. Display assembly (see “Display assembly” on page 4-23)

h. Top cover (see “Top cover” on page 4-30)

i. Bluetooth module (see “Bluetooth module” on page 4-35)

j. System board (see “System board” on page 4-38)

k. Fan/heat sink assembly (see “Fan/heat sink assembly” on page 4-41)

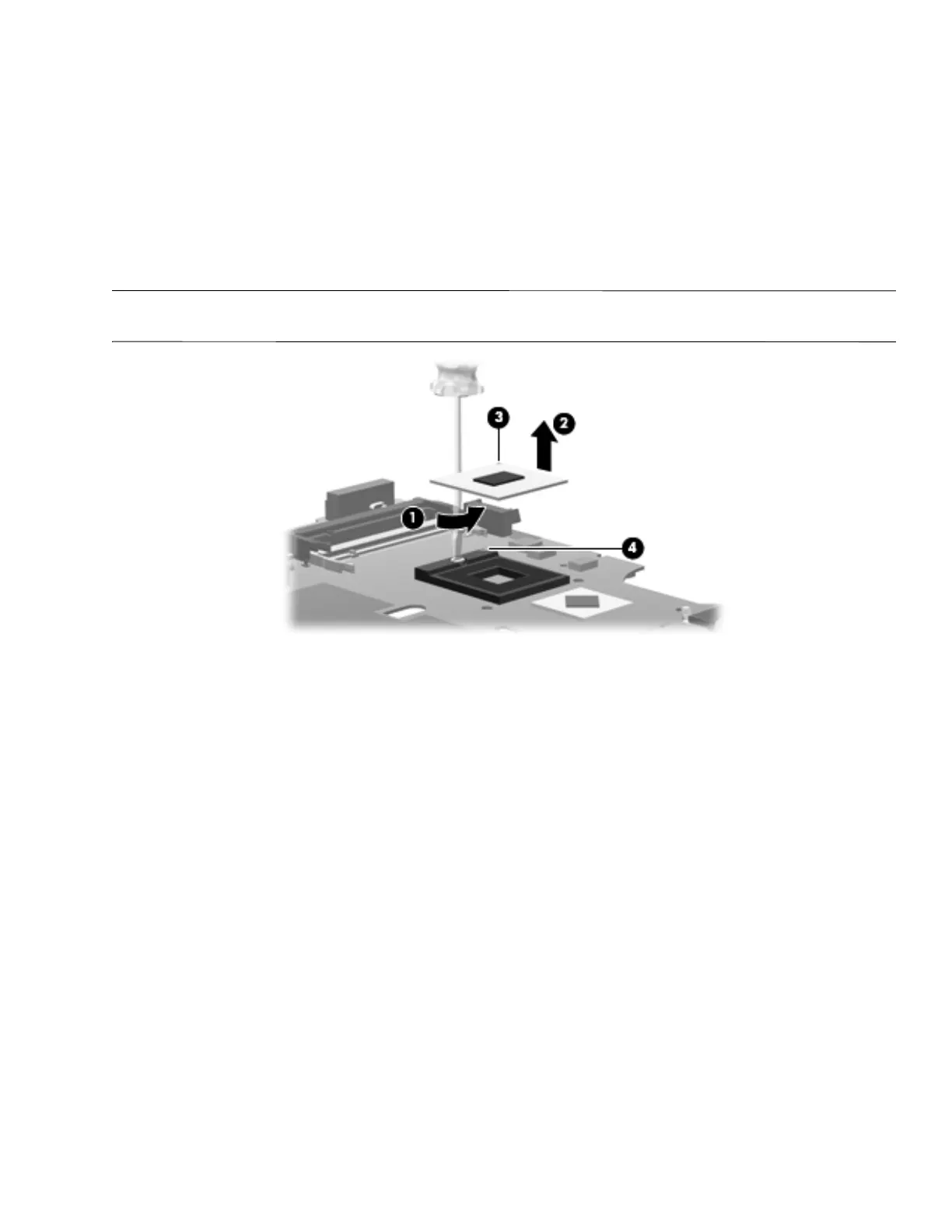

Remove the processor:

1. Use a flat-bladed screwdriver to turn the processor locking screw 1 one-half turn counterclockwise until you

hear a click.

2. Lift the processor 2 straight up and remove it.

✎

When you install the processor, the gold triangle on the processor 3 must be aligned with the triangle embossed

on the processor slot 4.

Reverse this procedure to install the processor.
