Removal and replacement procedures 4–31

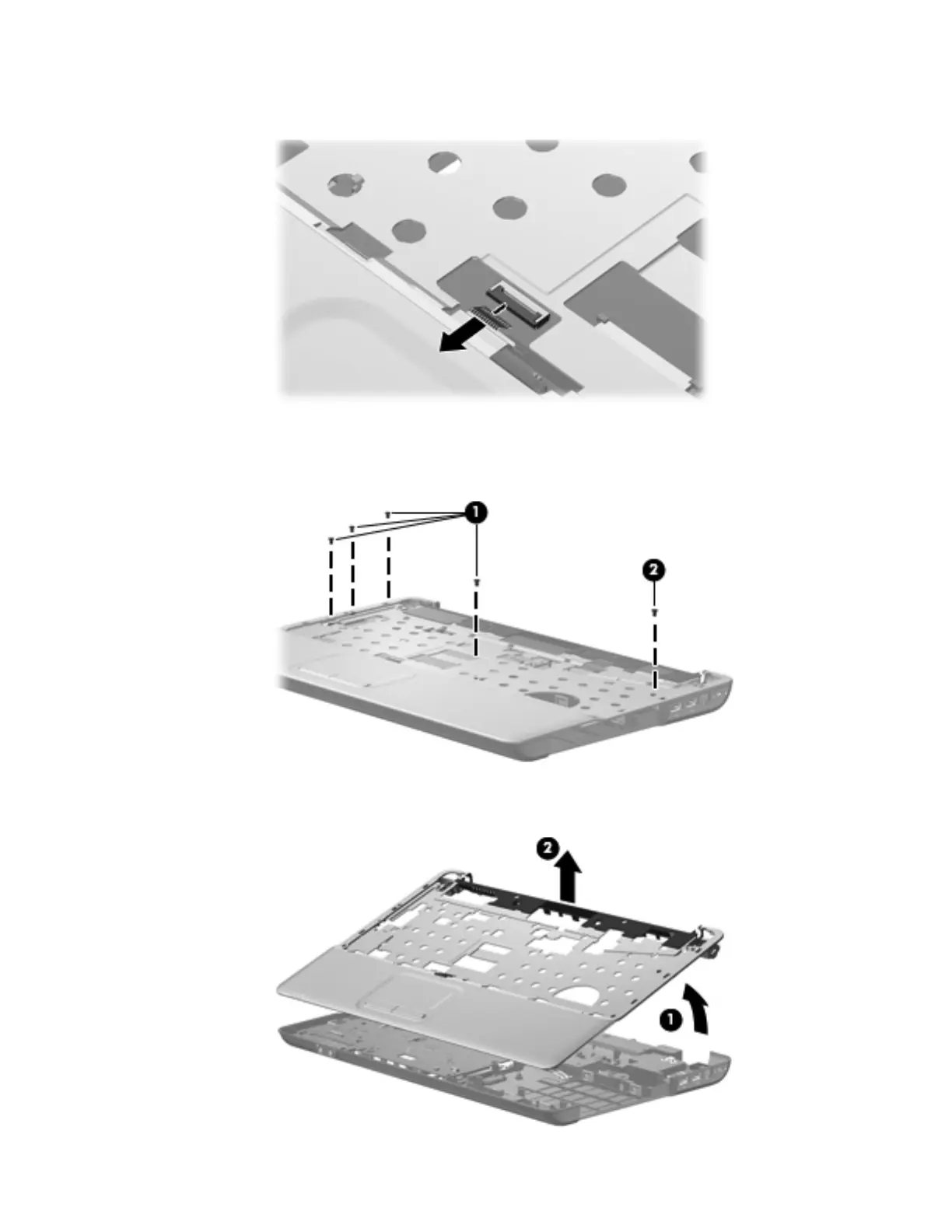

4. Turn the computer right-side up, with the front facing you.

5. Release the ZIF connector to which the TouchPad cable is attached, and disconnect the TouchPad cable from

the system board.

6. Remove the following screws:

a. Four Phillips PM2.0x6.0 screws 1

b. One Phillips PM2.0x4.0 screw 2

7. Lift the rear edge of the top cover 1 until the top cover disengages from the base enclosure.

8. Remove the top cover 2.

Reverse this procedure to install the top cover.
