Removal and replacement procedures 4–29

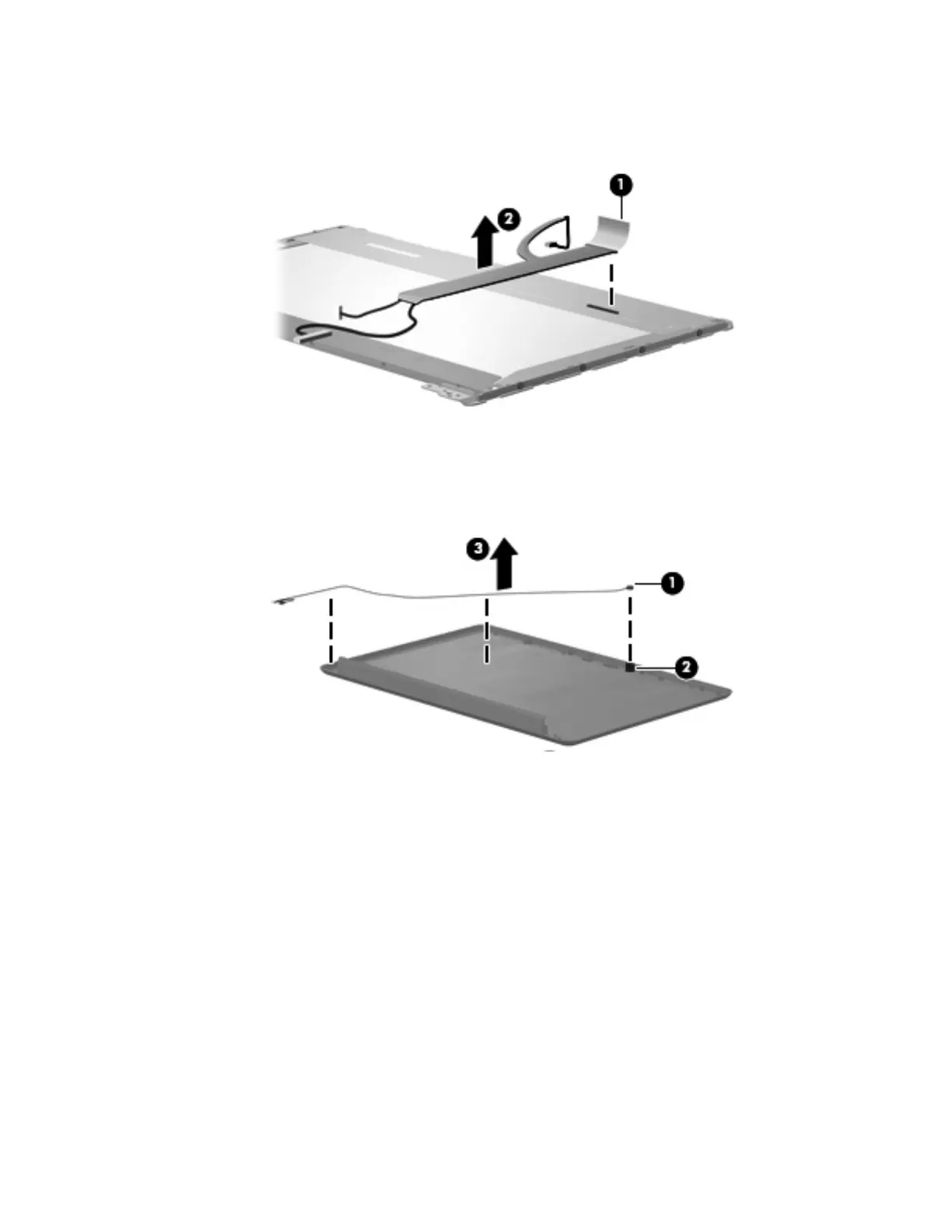

20. If it is necessary to replace the display panel cable, which is attached to the back of the display panel with clear

adhesive tape, remove the tape 1 to release the cable from its connector. The display panel cable includes the

camera module cable. The display panel cable with webcam cable is available using spare part number

496841-001.

21. Remove display panel cable 2.

22. If it is necessary to replace the microphone 1, release the microphone from its mounting clip 2 at the top of

the display enclosure.

23. Pull the microphone cable through the left hinge opening, and release the microphone cable from the foil

tab 3. The microphone with cable is available using spare part number 496840-001.

Reverse this procedure to reassemble and install the display assembly.
