Removal and replacement procedures 4–9

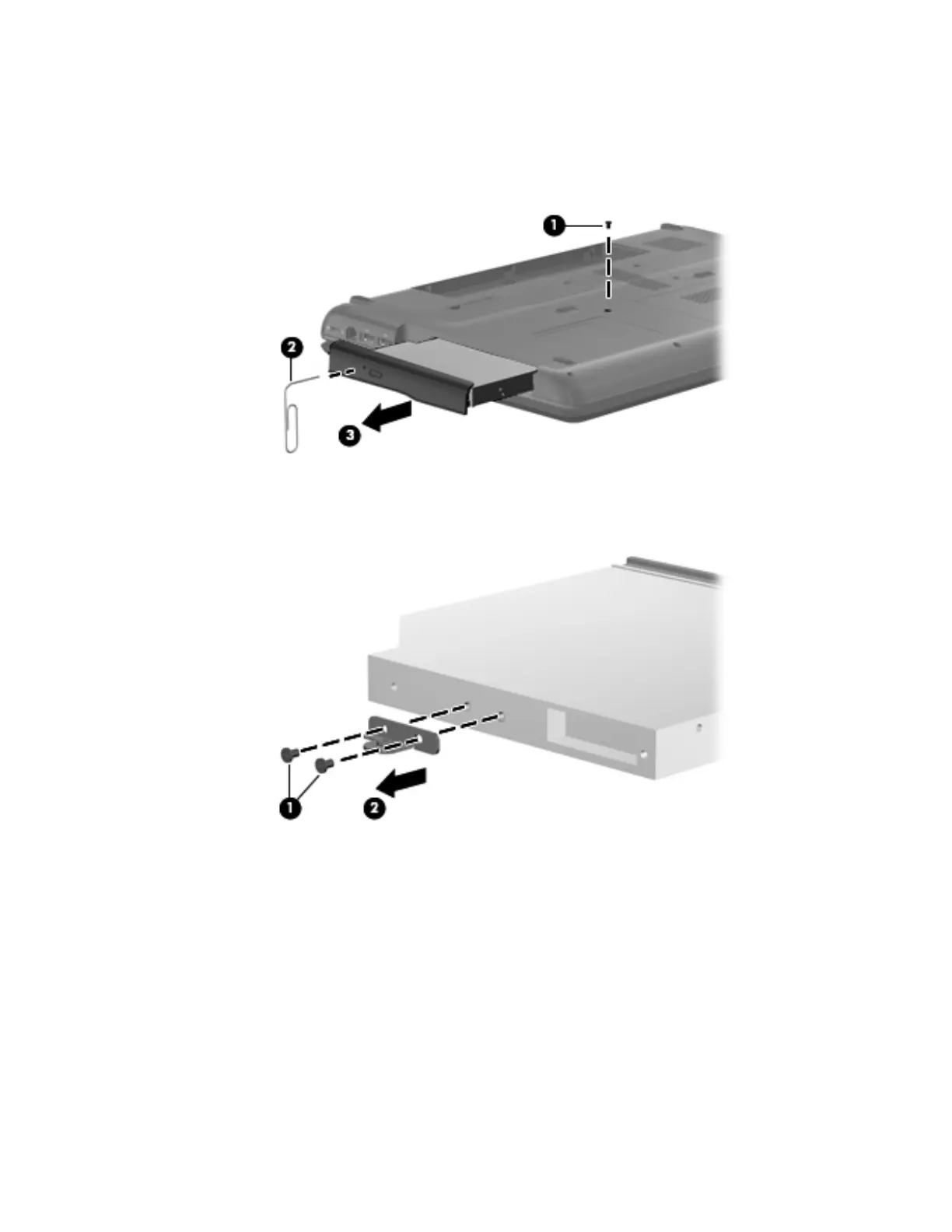

Remove the optical drive:

1. Position the computer with the left side toward you.

2. Remove the Phillips PM2.5×9.0 screw 1 that secures the optical drive to the computer.

3. Insert a thin tool, such as a paper clip 2, into the release access. (The disc tray is partially ejected from the

optical drive.)

4. Grasp the bezel and slide the optical drive 3 out of the computer.

5. If it is necessary to replace the optical drive bracket, position the optical drive with the rear toward you.

6. Remove the 2 Phillips PM2.0×4.0 screws 1 that secure the optical drive bracket to the optical drive.

7. Remove the optical drive bracket 2.

Reverse this procedure to reassemble and install an optical drive.
