Connector pin assignments 9–3

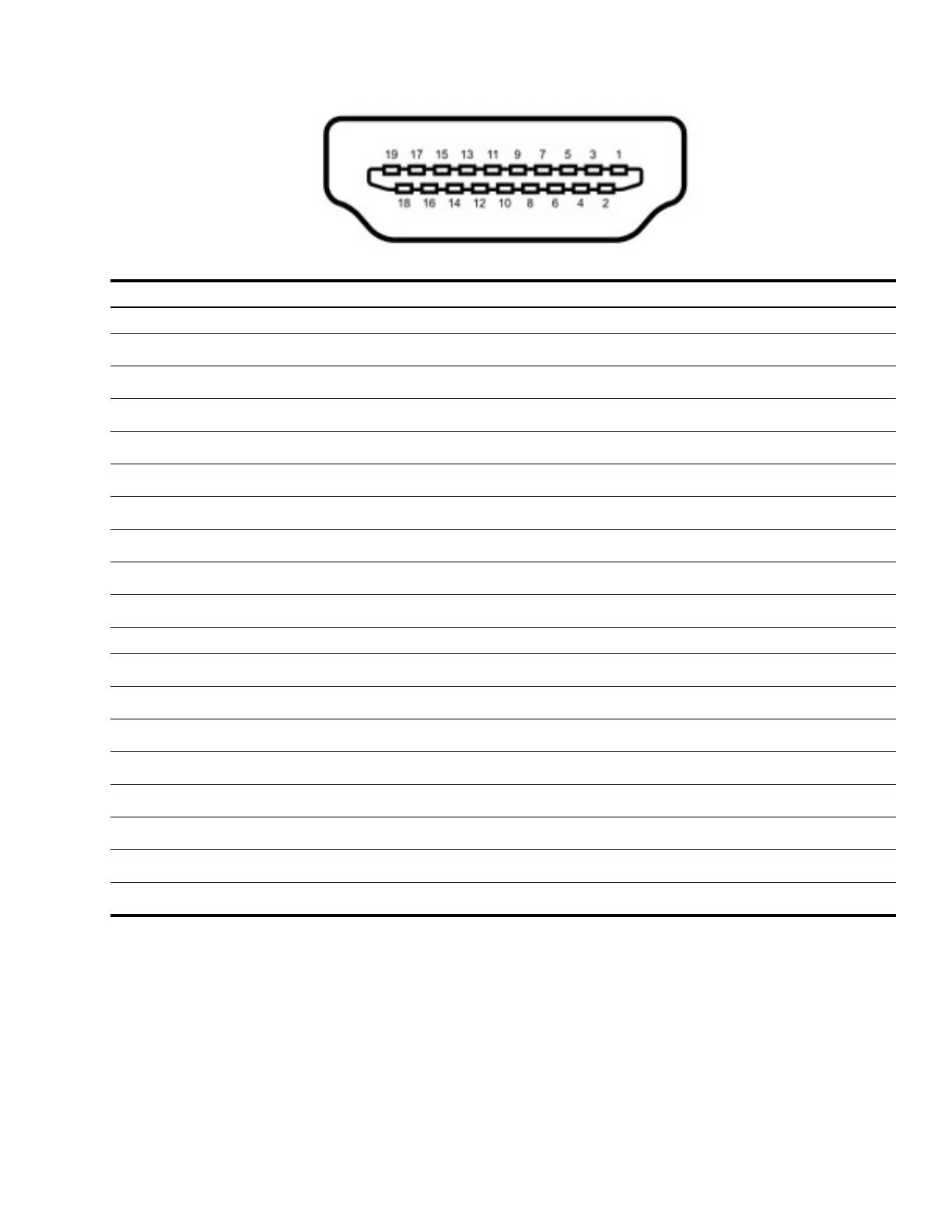

HDMI

Pin Signal

1 Transition minimized differential signal (TDMS) data 2+

2

Transition minimized differential signal (TDMS) data 2 shield

3

Transition minimized differential signal (TDMS) data 2-

4

Transition minimized differential signal (TDMS) data 1+

5

Transition minimized differential signal (TDMS) data 1 shield

6

Transition minimized differential signal (TDMS) data 1 shield

7

Transition minimized differential signal (TDMS) data 0+

8

Transition minimized differential signal (TDMS) data 0 shield

9

Transition minimized differential signal (TDMS) data 0-

10

Transition minimized differential signal (TDMS) clock +

11 Transition minimized differential signal (TDMS) data clock shield

12

Transition minimized differential signal (TDMS) data clock-

13

Consumer electronics control (CEC)

14

Not connected

15

Display data channel (DDC) clock

16

Display data channel (DDC) data

17

Ground

18

+5V Power

19

Hot plug detect
