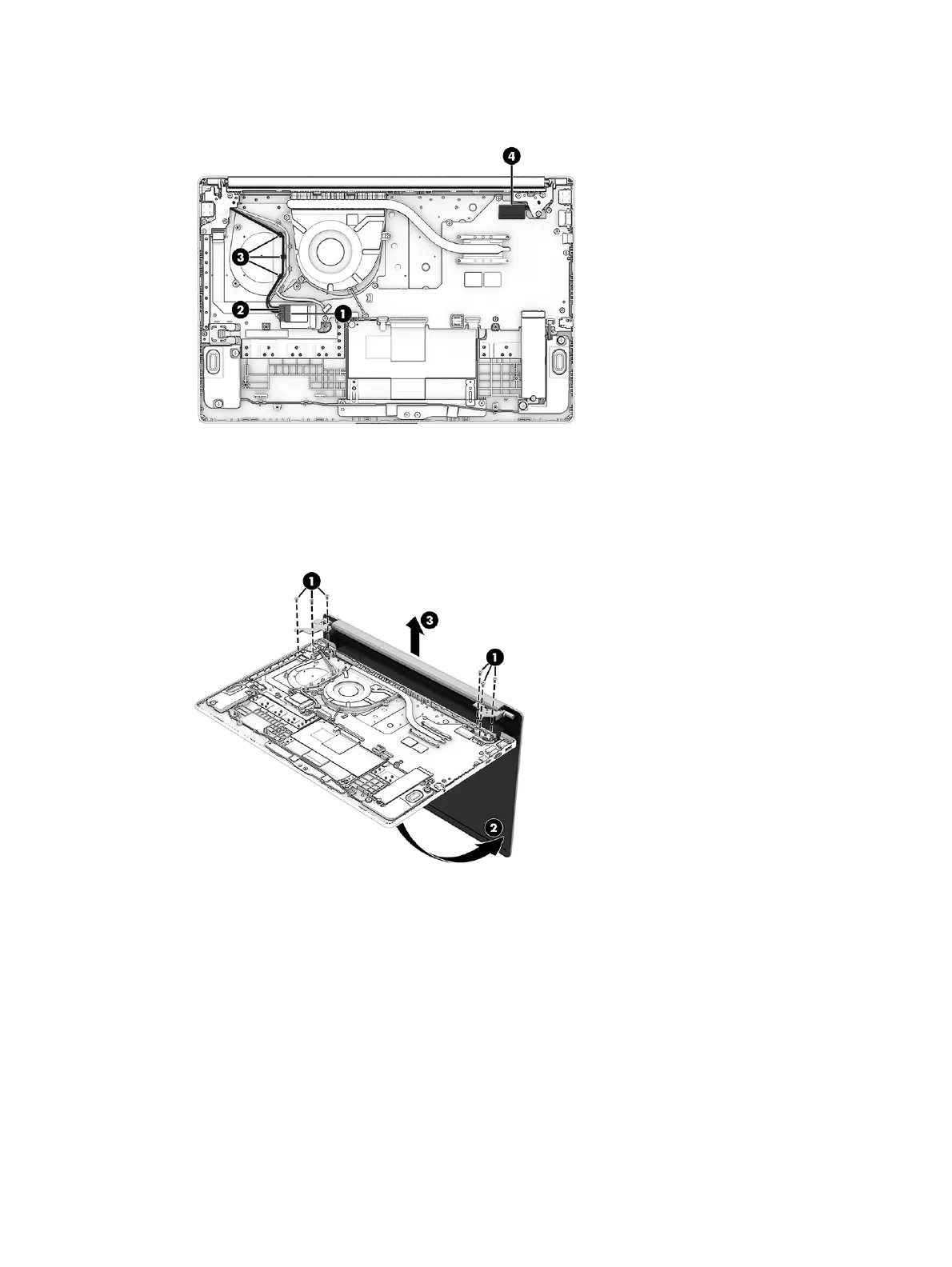

4. Disconnect the display panel cable (4) from the ZIF connector on the system board.
5. Remove the six Phillips M2.5 × 5.0 screws (1) that secure the display assembly to the computer.
6. Open the display to 90° to open the hinges (2).
7. Separate the display from the computer (3).
8. To remove the display bezel:
a. Release the top, left and right sides of the display bezel (1) from the display assembly.
b. Insert a flat, nonmarking tool into the seam at the bottom of the bezel (2) to release the bottom
edge of the bezel (3) from the display assembly.
c. Remove the display bezel (4) from the display assembly.
Bezel adhesive is available in the Adhesive Kit as spare part number P31856-001.
The bezel is available as the following spare part numbers:
N41355-001: Turbo silver, plastic
56
Chapter 6 Removal and replacement procedures for authorized service provider parts
