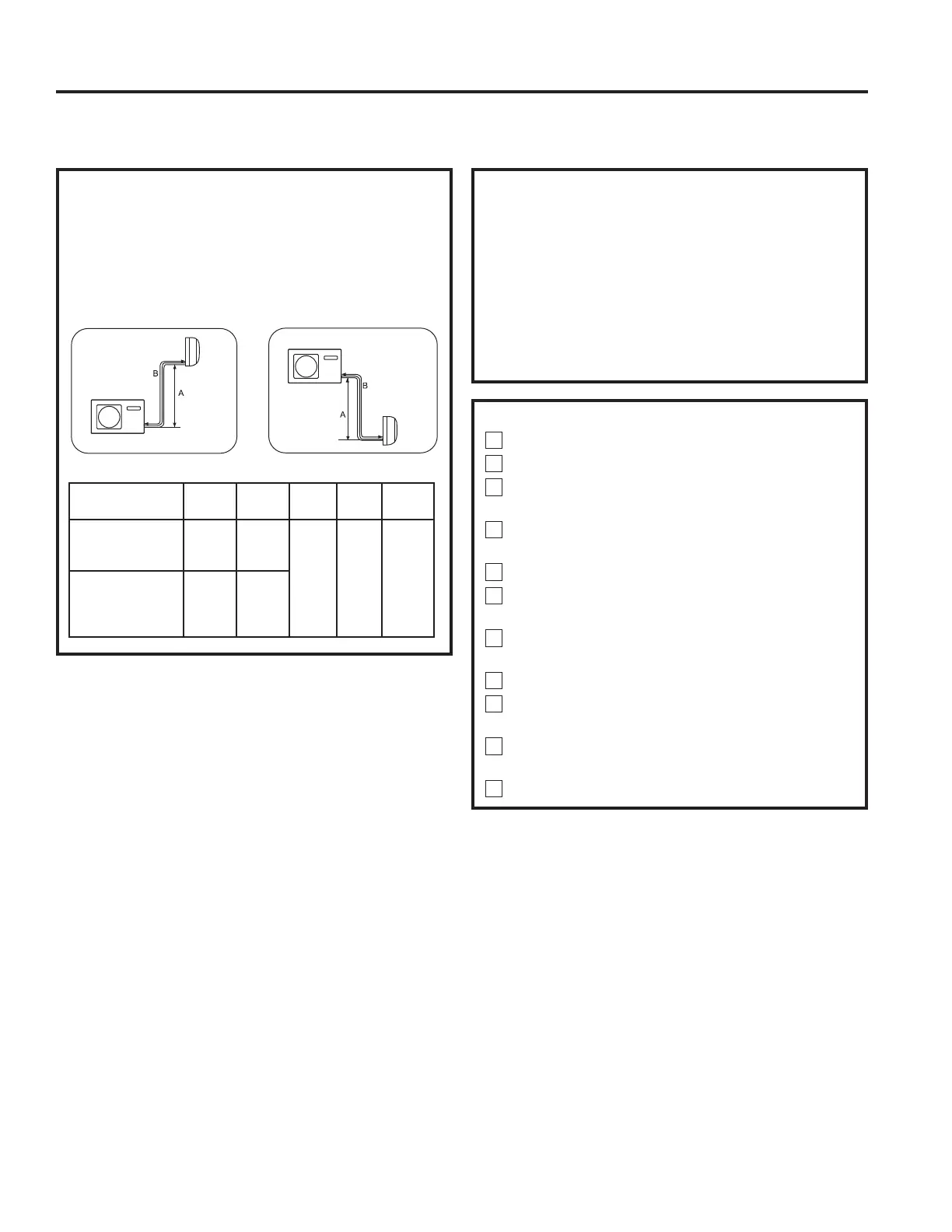

31-5000884 Rev. 6 21
INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS
Step 4 - Final Check
Check Items for Test Run
No gas leak from linesets?
Are the linesets insulated properly?
Are the connecting wirings of indoor and outdoor
firmly inserted to the terminal block?
Is the connecting wiring of indoor and outdoor
fixed?
Is condensate draining correctly?
Is the ground wire securely connected? Is the
indoor unit securely fixed?
Is power source voltage correct according to local
code?
Is there any odd noise?
Does the cooling temperature drop between
20-30°F?
Does the heating temperature raise between
35-40°F?
Is the room temperature display accurate?
Explaining Operation To the End User
• Using the User Manual, explain to the user how
to use the air conditioner/heat pump, (the remote
controller, adding/removing the air filters, placing
or removing the remote controller from the remote
control holder, cleaning methods, precautions for
operation, etc.)
• Review precautions for operation.
• Recommend that the user read the Operating
Instructions carefully.
Step 3 - Installation of the Outdoor
Unit (Cont.)
CAUTION
• Max. Elevation: A max
• Max. Length: B max
• Min. Length: B min
• In case the pipe length B is more than C ft, the
refrigerant should be charged, according to D oz/ft.
Outdoor Unit
A max
(ft)
B max
(ft)
B min
(ft)
C (ft)
D (oz/
ft)
1H09HN2DA*
1H12HN2CA*
1H12HN2DA*
33 66
10 25 1/5
1H18HN2CA*
1H18HN2DA*
1H24HN2CA*
1H24HN2DA*
50 83
Outdoor Unit
Outdoor Unit
Indoor
Unit
Indoor
Unit
