EN / 33

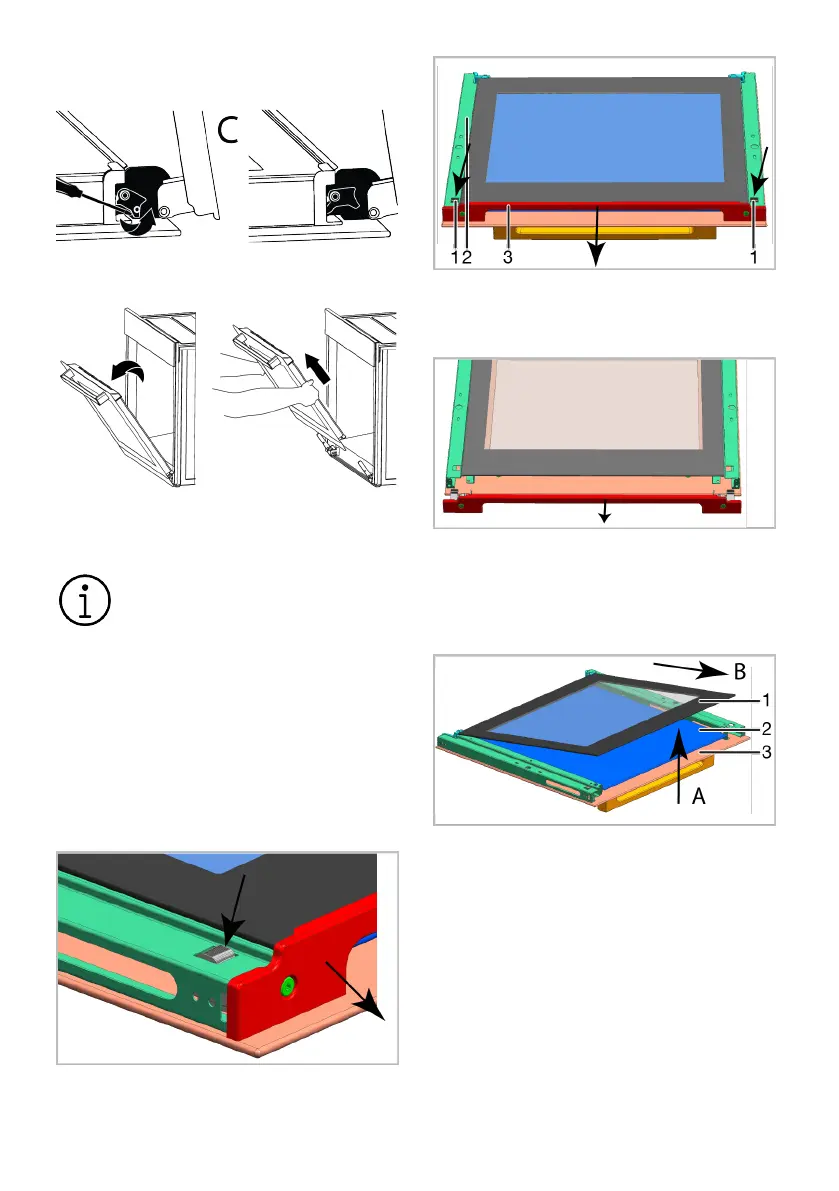

6. (C) type hinge is available in soft open-
ing/closing door types.
7. Get the oven door to a half-open posi-
tion.
8. Pull the removed door upwards to re-
lease it from the right and left hinges
and remove it.
To reattach the door, the proced-
ures applied when removing it must
be repeated from the end to the be-
ginning, respectively. When in-
stalling the door, be sure to close
the clips on the hinge socket.
9.8 Removing the Inner Glass of The
Upper Oven Door
Inner glass of the product's front upper
oven door may be removed for cleaning.
1. Open the oven door.
1 Tab
2 Frame
3 Profile
2. As illustrated in the figures above, press
on the tabs (1) and pull the profile (3) to-
wards yourself simultaneously to re-
move the profile attached to the upper
side of the front door.
1 Innermost glass panel
2 Inner glass panel*
3 Outer glass panel
* It varies depending on the product model. It
may not be available on your product.
3. As illustrated in the figure, raise the in-
nermost glass panel (1) slightly in direc-
tion “A” and pull it out in direction “B”
4. If your product is equipped with an inner
glass panel; Pull the glass holder con-
necting elements in the middle as illus-
trated in the figure to free them from the
glass panels.
