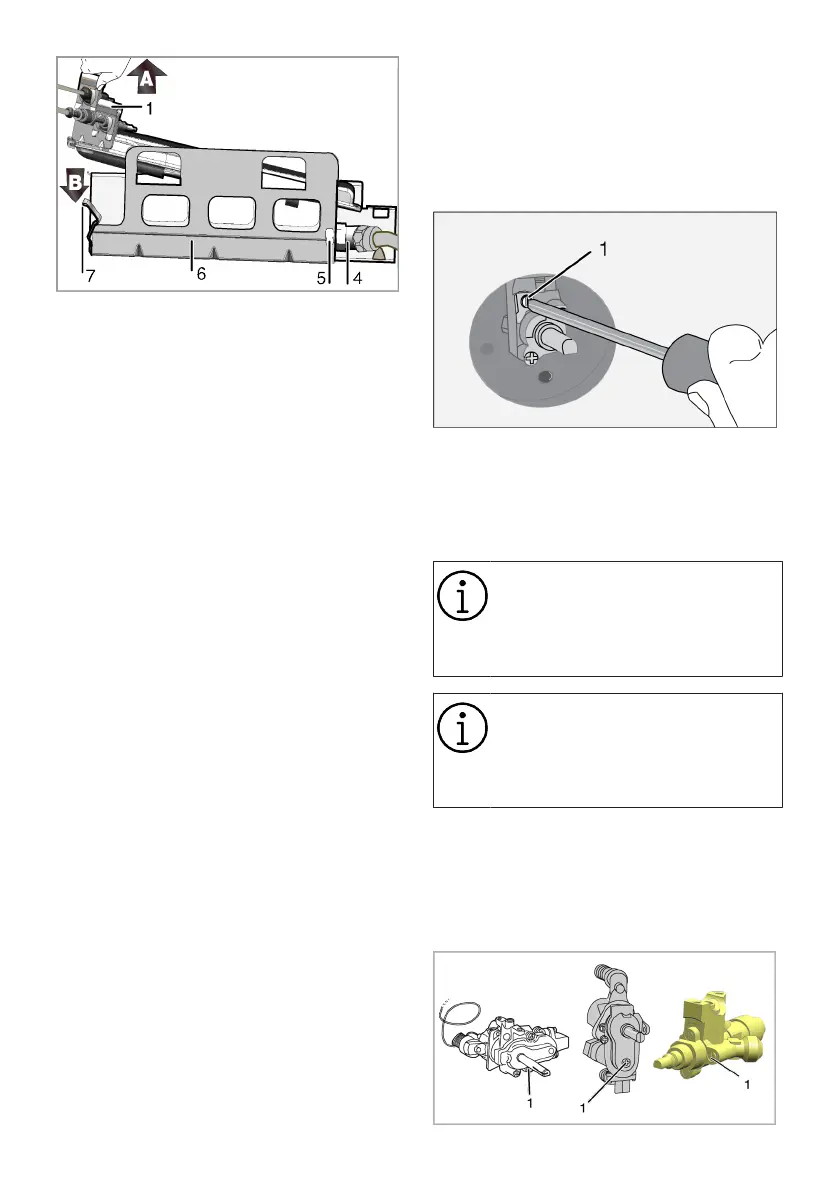

1. Turn all control knobs to off positions
on the control panel.
2. Shut off the gas supply.
3. Unscrew the 3 screws (2) to remove the
furnace burner (1) and the oven burner
holder (7).
4. Gently pull up burner and holder in “A”
direction- be careful with gas connec-
tion tube and thermocouple.
5. Push the clips (7) in “B” direction to dis-
assemble oven burner (1) and its
holder(6).
6. Unscrew the injector (5) and replace it
with appropriate injector, see injector
table.
7. After replacing the injector, check for
leaks.
8. Assemble the oven burner (1) to its
holder (6) by pushing the burner on the
clips (7) in “B” direction.
9. Mount the oven burner (1) and holder
(6) as a group to the cavity by screwing
3 screws (2).
Reduced flow adjustment for the gas oven
For the appropriate functioning of the oven
re-checking the by-pass adjustment is ex-
tremely important. In order to provide max-
imum security to the user these operations
have to be done with care.
1. Ignite the burner that is to be adjusted
and turn the knob to the high flame posi-
tion.
2. Close the oven door and wait for 10 to
15 minutes until the oven becomes
ready for adjustment.
3. Take out the knob
4. After 15 minutes, adjust the oven to the
lowest flame position.
5. Set the flame length to 2 to 3 mm by
means of the screw (1) on the oven tap.
Turning in clockwise direction reduces
the flame, turning counter-clockwise in-
creases the flame.
If gas flow rate of oven cannot be
set with removing knob, please re-
move the needed oven parts (con-
trol panel, burner plate etc.) and
then set the gas flow rate of oven.
If the temperature of the oven in-
creases excessively, turn off the
oven and call the authorised ser-
vice to have oven thermostat re-
paired.
Adjust the fire to the optimum height as in
the figure by rotating the screw 1 on the
oven gas cock by means of a screwdriver.
Rotating clockwise will increase the fire
height, and rotating counter-clockwise will
decrease the fire height.
