EN / 14
3 Handle
4 Door
5 Bottom part

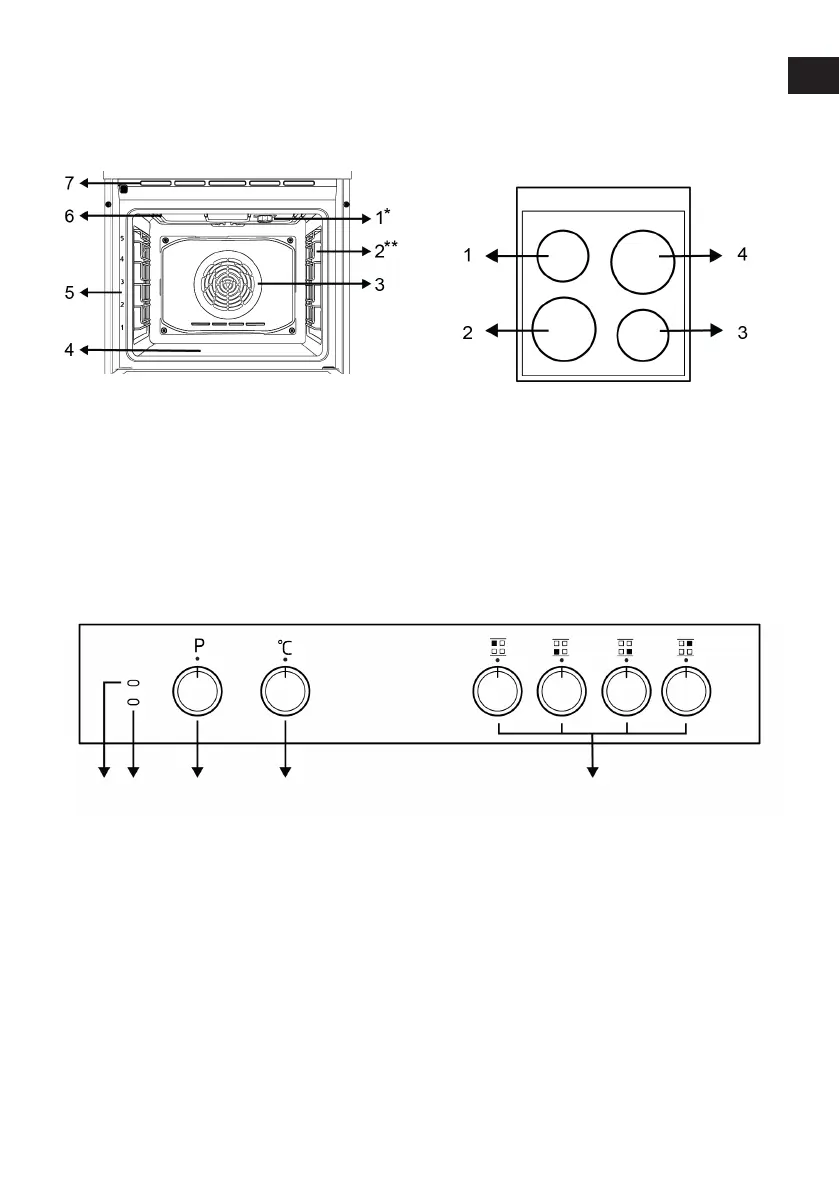

3.1.1 Cooking unit
1 Lamp
2 Wire shelves
3 Fan motor (behind the steel plate)
4 Lower heater (under the steel plate)
5 Shelf positions
6 Upper heater
7 Ventilation holes
* Varies depending on the model. Your product
may not be equipped with a lamp, or the type
and location of the lamp may differ from the il-
lustration.
** Varies depending on the model. Your product
may not be equipped with a wire rack. In the im-
age, a product with wire rack is shown as an ex-
ample.
3.1.2 Hob section
1 Rear left - Single cooking zone
2 Front left - Single cooking zone
3 Front right - Single cooking zone
4 Rear right - Single cooking zone
3.2 Introduction of the oven control
panel
1 2 3 4 5
1 Active hob warning lamp 2 Thermostat lamp
3 Function selection knob 4 Temperature knob
5 Hob control knobs
If there are knob(s) controlling your
product, in some models this/these knob(s)
may be so that they come out when pushed
(buried knobs). For settings to be made
with these knobs, first push the relevant
knob in and pull out the knob. After making
your adjustment, push it in again and re-
place the knob.
Function selection knob
You can select the oven operating func-
tions with the function selection knob. Turn
left / right from closed (top) position to se-
lect.
