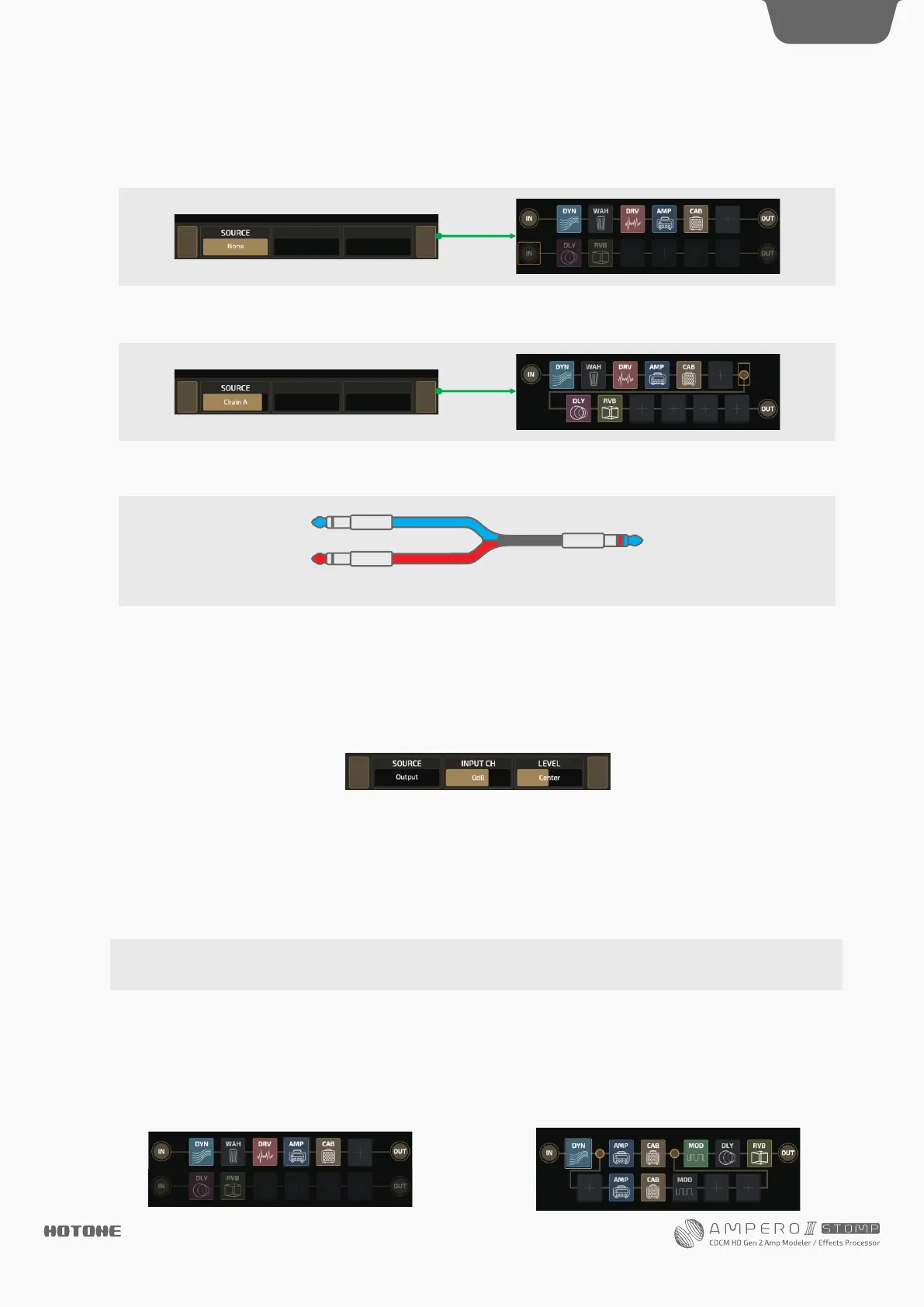

There are two selections available for chain B only:

•None: no input, then chain B will turn gray to indicate chain B not working:

•Chain A: Receives outputs from chain A, in this case, the chain A and B connects in series (see Effects Chain Types section

on for details):page 14

INPUT CH lets you select the signal input channel:

•L/R: For FX loop return jack, the left channel is connected to tip conductor and the right channel is connected to ring:

For USB outputs, even number stands for left channel (3, 5, 7) and odd number stands for right channel (4, 6, 8)

•Sum: Sums input signal to mono

•Stereo: Receives L/R stereo inputs

LEVEL lets you adjust input level from Mute~-60dB~+20dB. Default is set to 0dB (unity gain).

Output Node Setup

Select an input node and the parameters will come up as shown below:

OUTPUT TO lets you decide where the output signal goes:

•Output: Sets the signal output to unit’s output jacks (and phones jack)

•FX SND: Sets the signal output to unit’s FX loop send jack

•Chain B: For chain A only, which lets you connect chain A and B in series (see Effects Chain Types section on for details) page 14

•None: For chain B only, in this case, chain B’s output node won’t work

OUT LEVEL lets you adjust output level from Mute~-60dB~+20dB. Default is set to 0dB.

PAN lets you adjust output signal stereo panning. The range is L50~Center~R50, default is set to Center.

Parallel

The chain A and B are fully parallel (won’t affect each other),

When you load an empty patch, the default effects chain

type is a special parallel state that only chain A is working.

Split-Mix

An input signal will be split into two and sent to both chain A

and B, then mixed into one and sent to one output:

Effects Chain Types

Ampero II Stomp supports various effects chain types:

Customizing Your Ampero II Stomp

DESIGN INSPI R AT I O N

Note: When you set OUTPUT TO to FX SND, the VOLUME knob will not work. In this case, use OUTPUT LEVEL to

control the output volume.

FX loop wiring diagram: blue stands for left channel (tip), and red stands for right channel (ring)
