24
12) Remove the lower hinge bracket. See Fig. 29. Be sure to leave the thrust washer in
place.
13) Install the lower hinge bracket in its new location. Be sure the lower hinge bracket is
pushed all the way in and the thrust washer is in its original position.

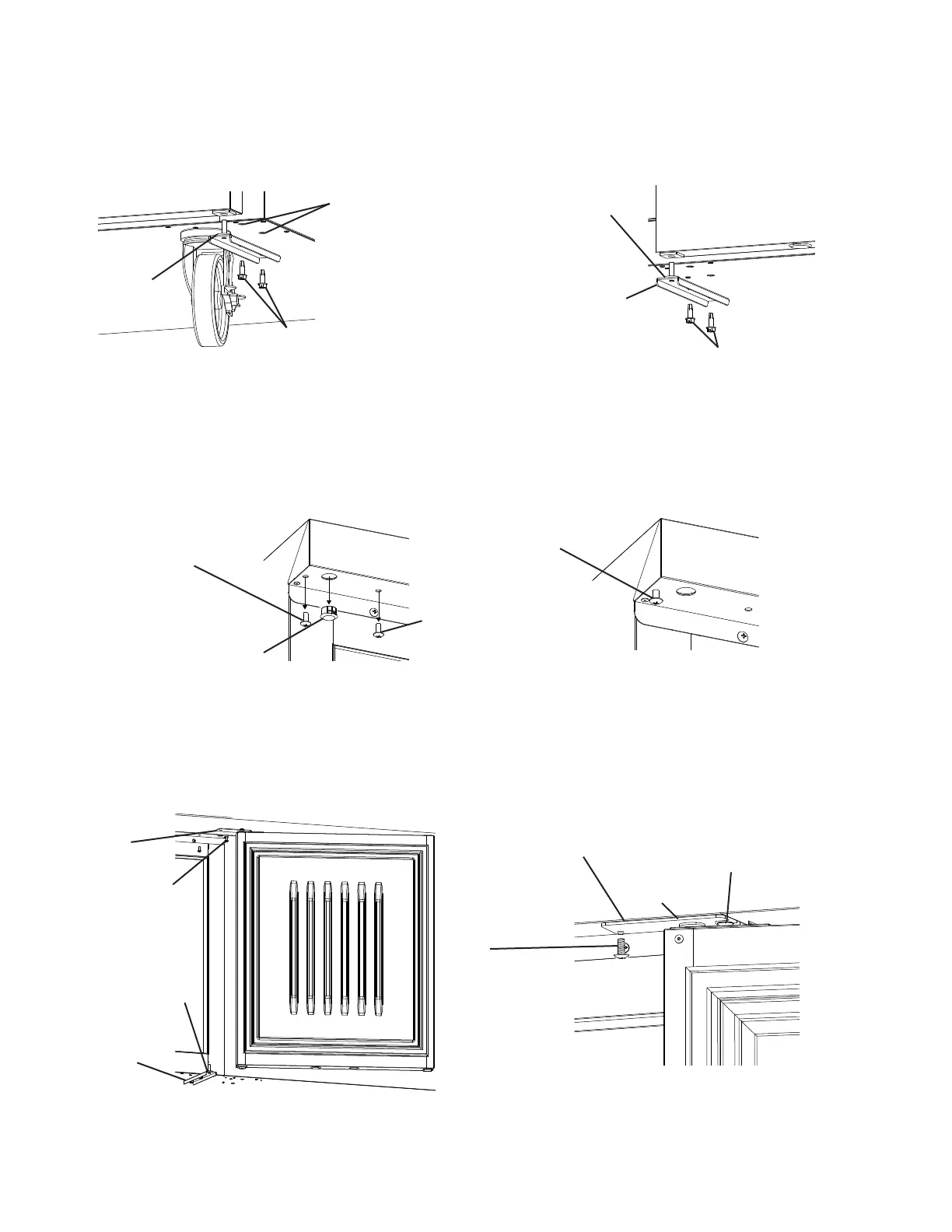

Fig. 29
WARNING! Upper
hinge bracket may
spring closed
Door Fully
Open
Upper Hinge Bracket
Outer Screw
Upper Hinge
Bracket Inner
Screw
Lower Hinge
Bracket
Mounting Holes
Lower Hinge
Bracket
Lower Hinge
Bracket
Thrust Washer
Thrust
Washer
Bolts
Bolts
Black Plastic Filler Cap
Fig. 30
Fig. 31
Door Fully Open
Upper Hinge
Bracket Outer
Screw
Upper Hinge
Bracket
Upper Hinge
Bracket
Upper Hinge
Bracket Inner
Screw
Upper Hinge
Bracket Outer
Screw
Upper Hinge
Bracket Outer
Screw
Thrust Washer
Lower Hinge
Bracket
14) Remove the black plastic ller cap located from the hole above where the spring
cartridge screw will line up. Note: The black plastic ller cap is not reusable.
15) Remove the upper hinge bracket screws from the new location and apply Loctite
Threadlocker Blue 242 or 243 to the threads. Next, start the upper hinge bracket outer
screw into the appliance. Rotate a few threads into the appliance; do not tighten the
screw. See Fig. 30.
16) Be sure the lower hinge bracket thrust washer is in place, then place the door on the
lower hinge bracket in the fully open position. Slide the door upper hinge bracket outer
slot onto the upper hinge bracket outer screw. See Fig. 31.
17) Install the upper hinge bracket inner screw and tighten.
