Pilaster and Inner Brackets Relocation
5) Remove the shelf from the door section, then remove the pilasters. See Fig. 23.

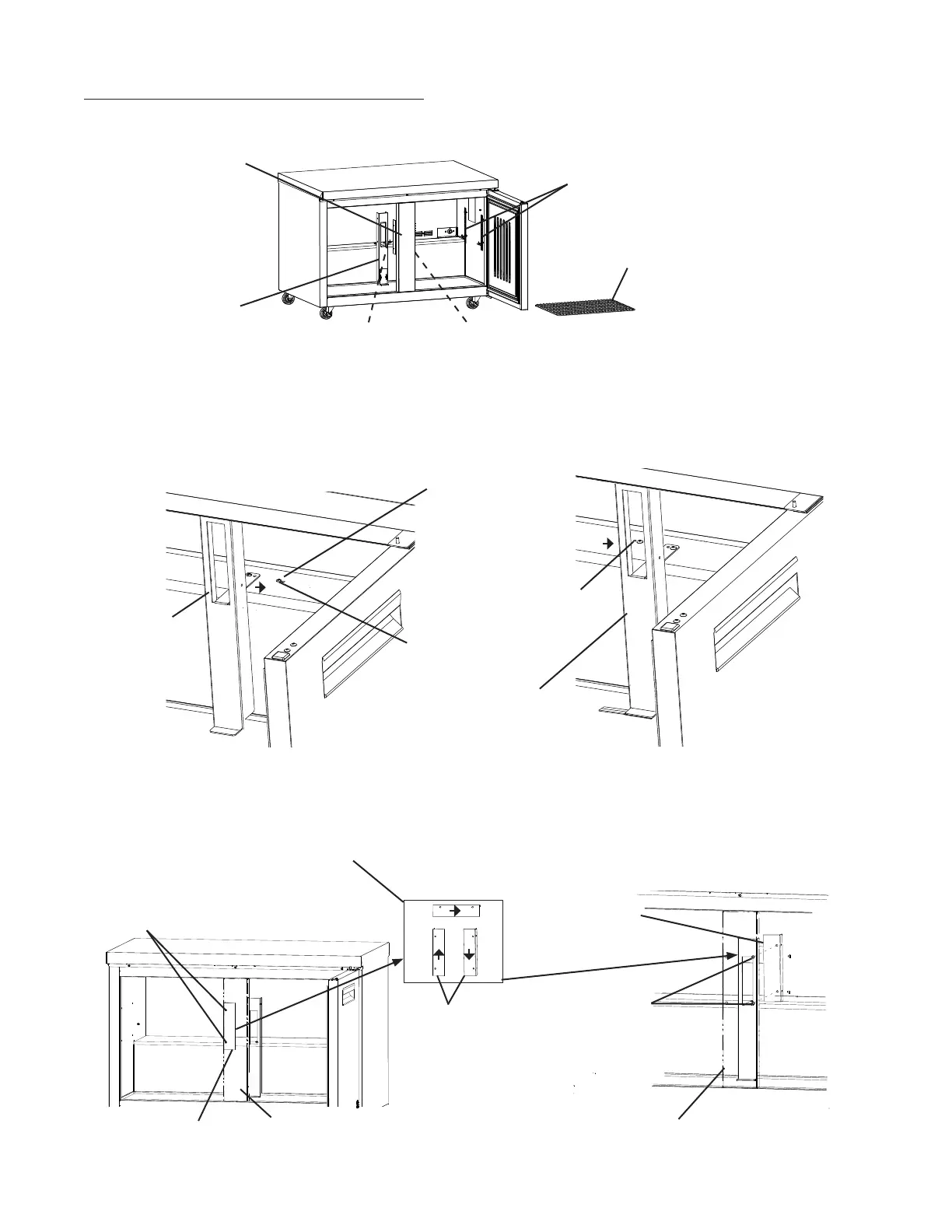

Fig. 23
Fig. 24
Fig. 25
Shelf
Vertical Mullion
Pilaster
Right Side Pilasters
Center Rear
Drawer Frame
Bracket
Center Rear
Pilaster
Vertical Mullion
Filler Screw
Center Rear
Drawer Frame
Bracket
New Center Rear
Drawer Frame
Bracket Location
Center Rear
Drawer Frame
Bracket
Vertical Mullion
Filler Screw
Vertical Mullion
Vertical Mullion Bracket Rotation
Vertical Mullion
Left Mounting
Holes
Vertical Mullion
Bracket
Vertical
Mullion
Bracket
Vertical Mullion
Right Mounting
Holes
Vertical Mullion
Bracket
6) Remove the center rear drawer frame bracket and the ller screw. See Fig. 24. Slide the
center rear drawer frame bracket over to the new location and secure it. Place the ller
screw in the former center rear drawer frame bracket hole.
7) Remove the vertical mullion bracket. Rotate 180 degrees and mount it in the vertical
mullion right mounting holes. See Fig. 25.
