Right Drawer Frame Relocation
23) Place the right rear bracket in place on the right side panel with the hex-bolts removed
in step 4. Leave loose, do not tighten at this time. See Fig. 35.
24) Place the right front bracket in place on the right side panel with the hex-bolts removed
in step 4. Leave loose, do not tighten at this time. See Fig. 35.

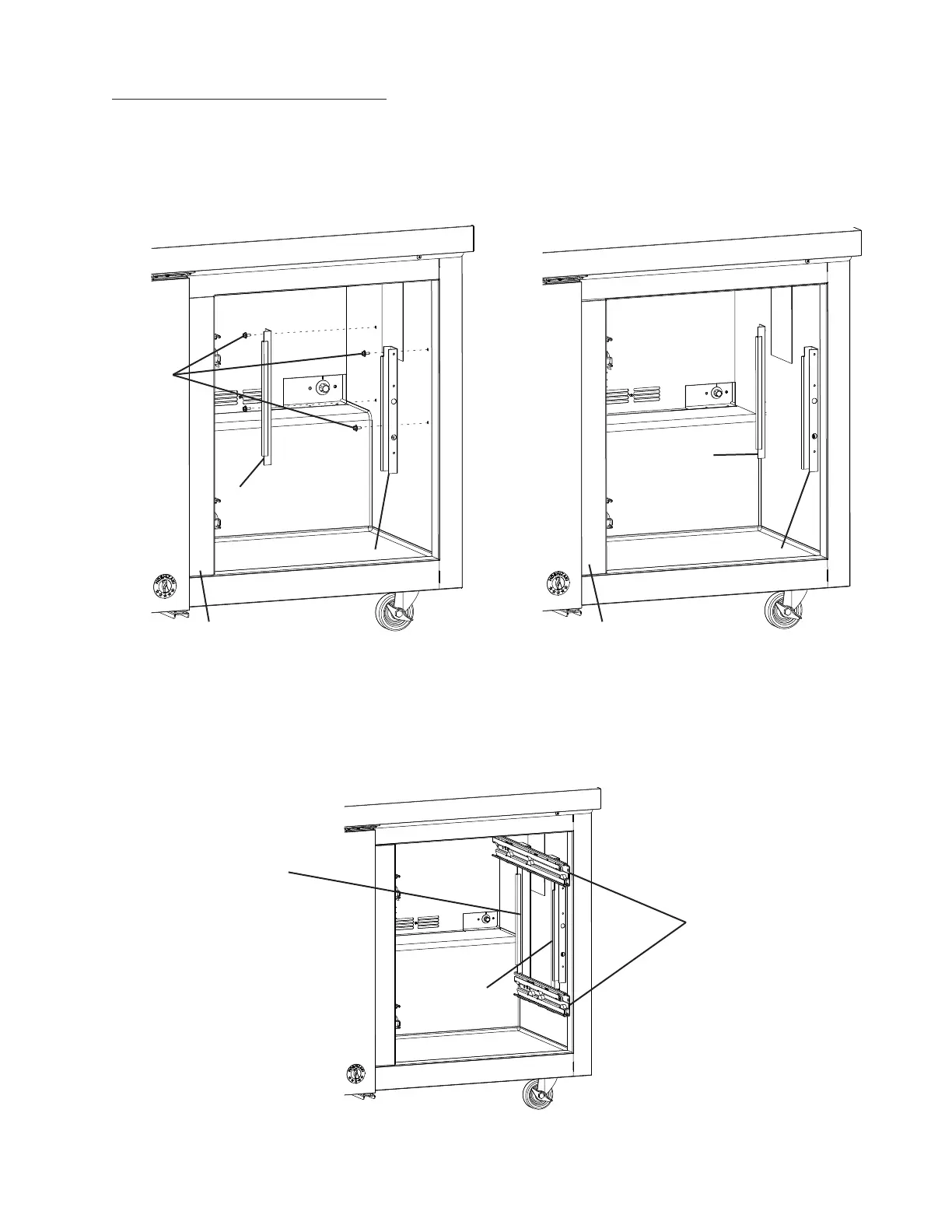

Fig. 36
Hex-Bolts
Right Rear
Bracket
Right Front Bracket
Vertical Mullion
Right Rear
Bracket
Right Front Bracket
Vertical Mullion
Fig. 35
Right Rear
Bracket Lip
Right Front
Bracket Lip
Right Drawer Frame
25) Place the right drawer frame in the appliance and align under the right rear bracket and
tighten, then align under the right front bracket and tighten. See Fig. 36.
Note: Be sure the right drawer frame is under both the right rear bracket lip and right
front bracket lip.
