Drawer Relocation

Left Drawer Frame Relocation

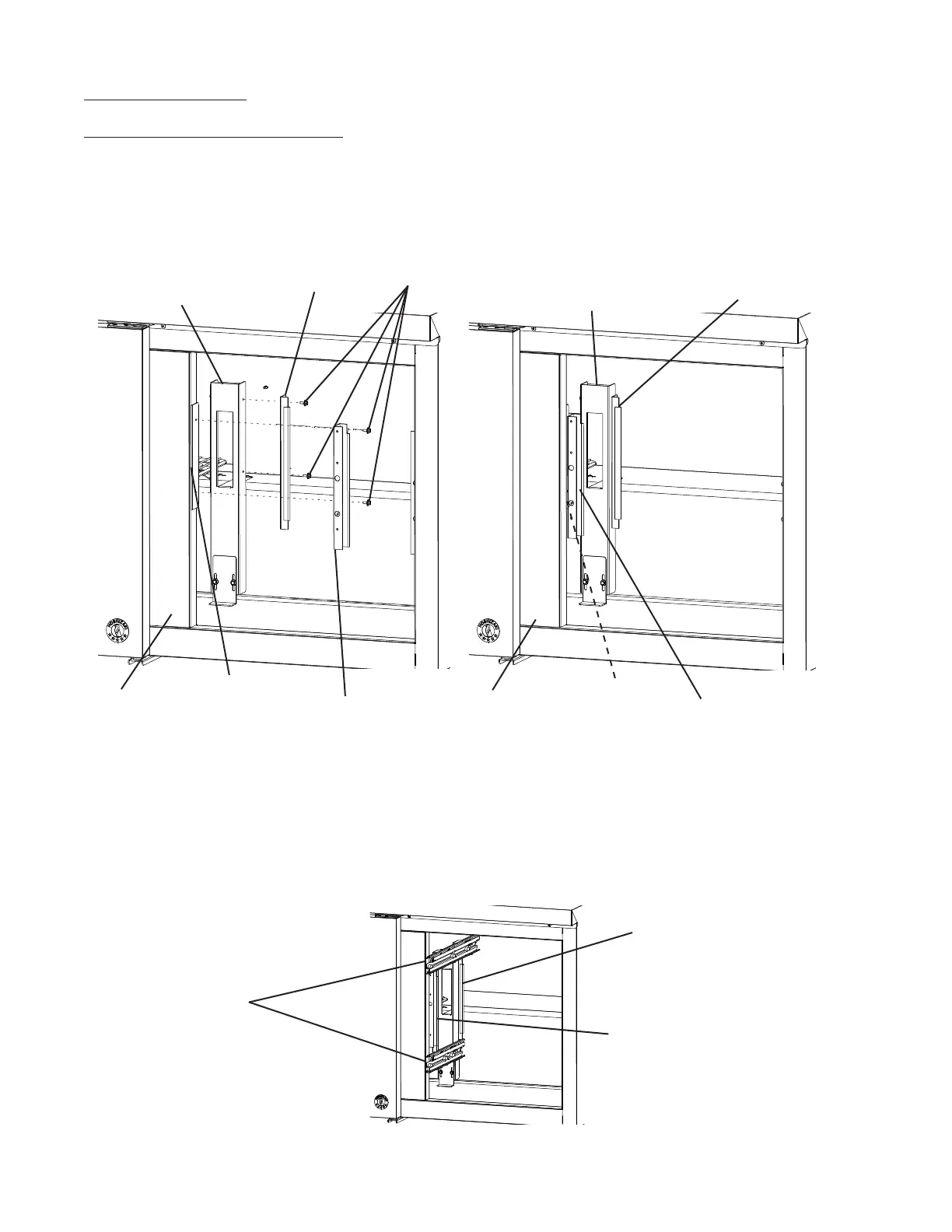

20) Place the left rear bracket in place on the center rear drawer frame bracket with

hex-bolts removed in step 4. Leave loose, do not tighten at this time. See Fig. 33.

21) Place the left front bracket in place on the vertical mullion bracket with the hex-bolts

removed in step 4. See Fig. 36. Leave loose, do not tighten at this time.

Fig. 33

Hex-Bolts

Center Rear

Drawer Frame

Bracket

Left Rear

Bracket

Center Rear

Drawer Frame

Bracket

Left Rear

Bracket

Vertical

Mullion

Vertical

Mullion

Bracket

Left Front Bracket

Vertical

Mullion

Vertical

Mullion

Bracket

Fig. 34

Left Drawer Frame

Left Rear Bracket Lip

Left Front Bracket Lip

22) Place the left drawer frame in the appliance and align under the left rear bracket and

tighten, then align under the left front bracket and tighten. See Fig. 34

Note: Be sure the left drawer frame is under both the left rear bracket lip and left front

bracket lip.
