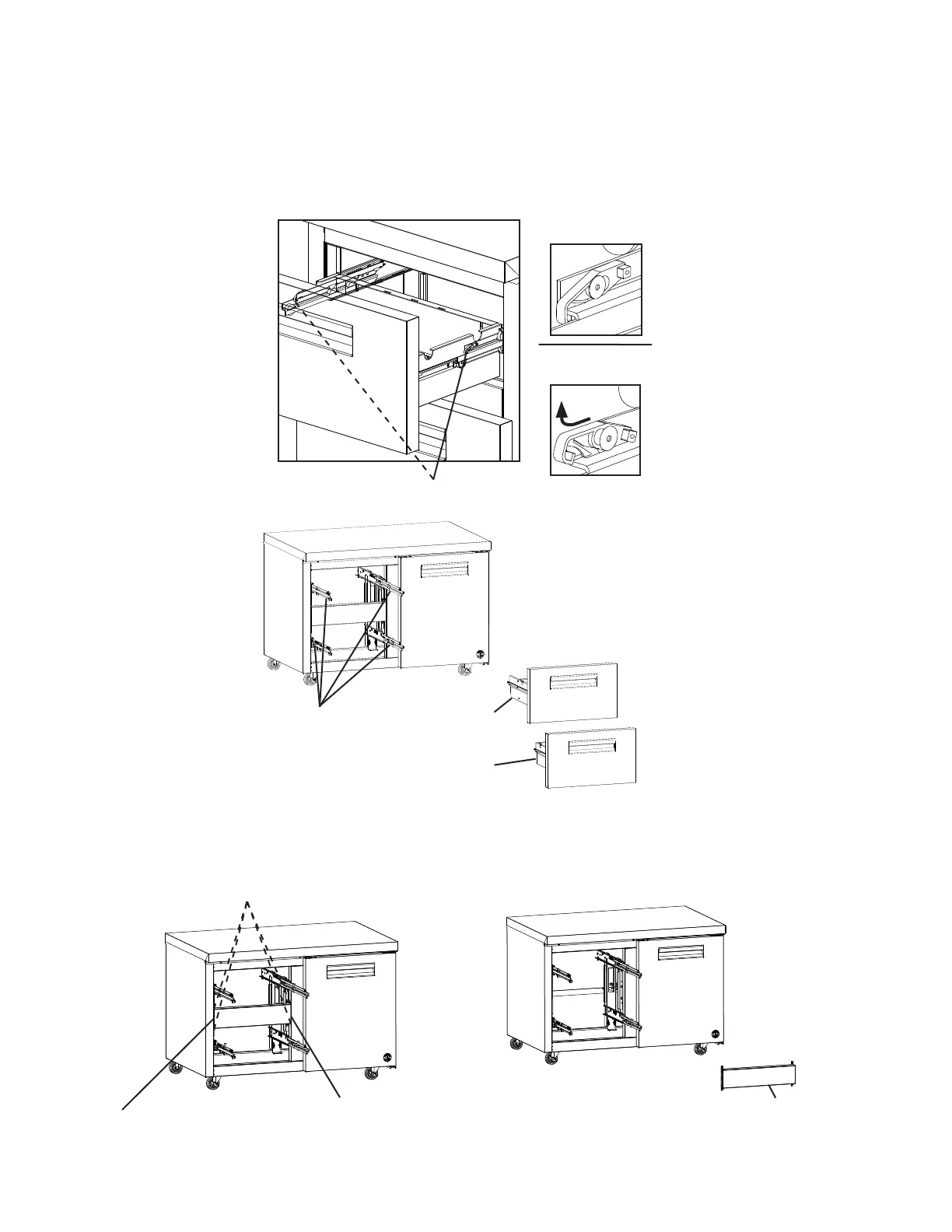

2) Remove the drawers. Pull the drawer out to its fully extended position. Open the safety

clips (one on each side) by sliding them forward, then rotating them up. See Fig. 20.

Lift up on the handle slightly, then pull to disengage the drawer. Be sure to support the

rear and front of the drawer while removing it. WARNING! Be sure to close the safety

clips when reinstalling the drawer.

Safety Clip

Closed

Fig. 21

Horizontal Mullion

Silicone

Horizontal Mullion Screws

Safety Clip

Open

Safety Clips

Drawer

Slides

Upper Drawer

Lower Drawer

Horizontal Mullion Silicone

Horizontal Mullion

3) Remove the 4 horizontal mullion screws, then cut the horizontal mullion silicone loose

and remove the horizontal mullion. See Fig. 21.

Fig. 20
