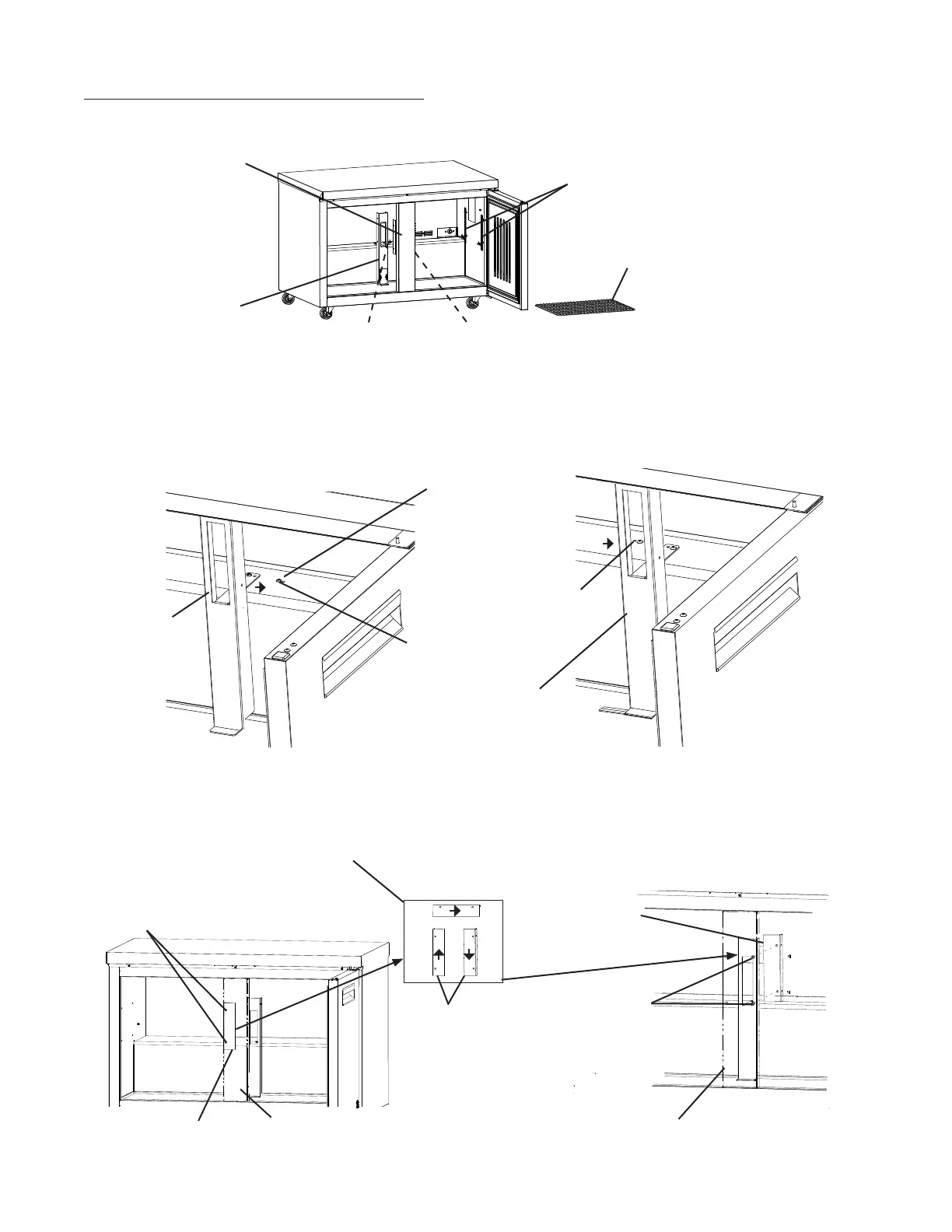

Pilaster and Inner Brackets Relocation

5) Remove the shelf from the door section, then remove the pilasters. See Fig. 23.

Fig. 23

Fig. 24

Fig. 25

Shelf

Vertical Mullion

Pilaster

Right Side Pilasters

Center Rear

Drawer Frame

Bracket

Center Rear

Pilaster

Vertical Mullion

Filler Screw

Center Rear

Drawer Frame

Bracket

New Center Rear

Drawer Frame

Bracket Location

Center Rear

Drawer Frame

Bracket

Vertical Mullion

Filler Screw

Vertical Mullion

Vertical Mullion Bracket Rotation

Vertical Mullion

Left Mounting

Holes

Vertical Mullion

Bracket

Vertical

Mullion

Bracket

Vertical Mullion

Right Mounting

Holes

Vertical Mullion

Bracket

6) Remove the center rear drawer frame bracket and the ller screw. See Fig. 24. Slide the

center rear drawer frame bracket over to the new location and secure it. Place the ller

screw in the former center rear drawer frame bracket hole.

7) Remove the vertical mullion bracket. Rotate 180 degrees and mount it in the vertical

mullion right mounting holes. See Fig. 25.
