5. Install the Rail Dividers and Pans (Prep Table Models)

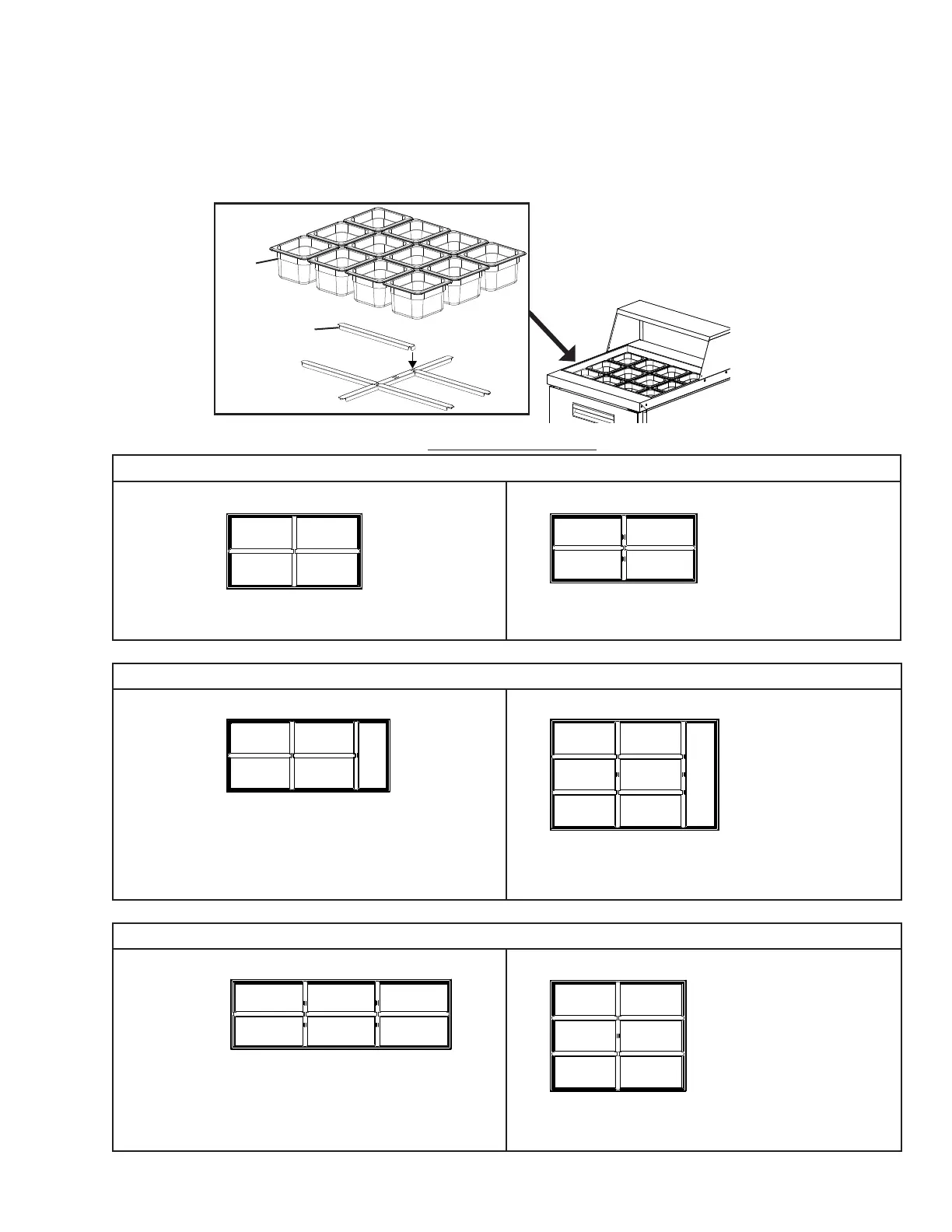

Install the rail dividers and 1/6 size pans included with the appliance. See Fig. 6 and the

table below. The entire rail must always be covered by rail dividers and pans. Otherwise,

the appliance will not cool properly. Use pans with a depth of up to 6" (15 cm). Do not use

damaged rail dividers or pans.

Rail Divider Layout

-8 Models

SR27B-8 SR48B-8, SR60B-8

-10, -15M Models

SR36B-10 SR36B-15M

-12, -12M Models

SR48B-12, SR60B-12, SR72B-12 SR27B-12M, SR48B-12M, SR60B-12M

Front-to-Back: HS-5184 (20-3/4"; 526 mm) Qty 1

Side-to-Side: HS-5185 (12-1/2"; 319 mm) Qty 4

Front-to-Back: HS-5188 (12-5/8"; 322 mm) Qty 1

Side-to-Side: HS-5189 (13-5/8"; 346 mm) Qty 2

Front-to-Back: HS-5187 (13-3/4"; 348 mm) Qty 1

Side-to-Side: HS-5185 (12-1/2"; 319 mm) Qty 2

Front-to-Back: HS-5184 (20-3/4"; 526 mm) Qty 2

Side-to-Side (Outer): HS-5185 (12-1/2"; 319 mm) Qty 2

Side-to-Side: HS-5186 (Center) (12-1/2"; 316 mm) Qty 2

Front-to-Back: HS-5187 (13-3/4"; 348 mm) Qty 2

Side-to-Side (Outer): HS-5185 (12-1/2"; 319 mm) Qty 1

Side-to-Side: HS-5186 (Center) (12-1/2"; 316 mm) Qty 1

Front-to-Back: HS-5188 (12-5/8"; 322 mm) Qty 2

Side-to-Side (Outer): HS-5189 (13-5/8"; 346 mm) Qty 2

Side-to-Side (Center): HS-5190 (13-1/2"; 344 mm) Qty 1

Pans

Rail Dividers

Fig. 6
