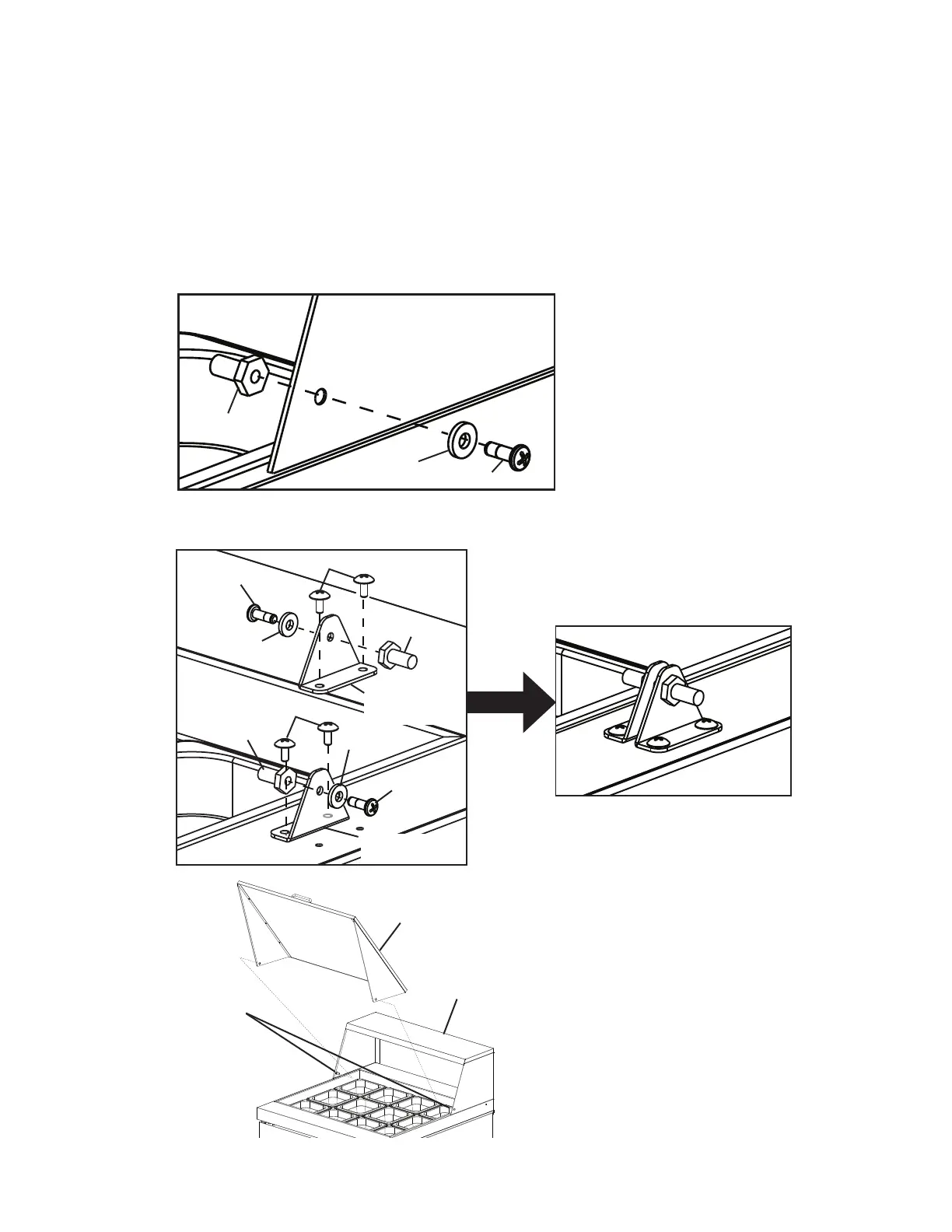

6. Install the Rail Cover (Prep Table Models)

1) Install and tighten the pivot pins, washers, and pivot screws on the rail hood with the

pivot pin shafts facing inward towards the open rail area. See Fig. 8.

2) Models with Two Rail Covers: Install and tighten the pivot pins, washers, and pivot

screws to the center hinge brackets, then secure the center hinge brackets using the

4×8 screws provided. See Fig.9.

3) Install the rail cover(s) by squeezing in slightly on the rail cover side panels and aligning

the holes in the rail cover side panels with the pivot pins. See Fig. 10.

Fig. 8

Pivot Screw

Rail Hood

Pivot Pin

Fig. 9

Fig. 10

Rail Hood

Rail Cover

Pivot Pins

4×8 Screws

Pivot Screw

Pivot Pin

4×8 Screws

Center Hinge

Bracket

For Models with Two Rail Covers

Center Hinge

Bracket

Washer
