5. Install the Rail Dividers and Pans (Prep Table Models)

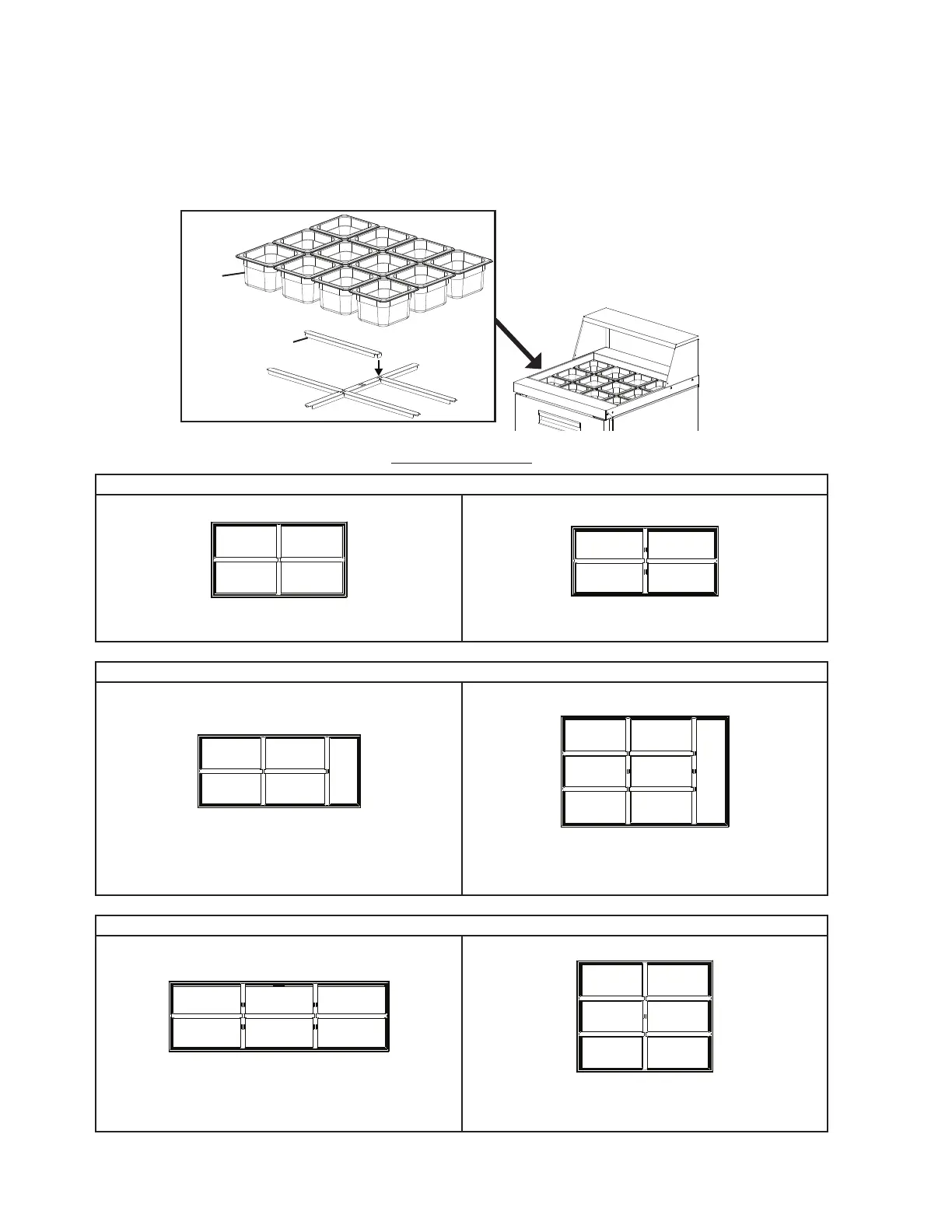

Install the rail dividers and 1/6 size pans included with the appliance. See Fig. 7 and the

table below. The entire rail must always be covered by rail dividers and pans. Otherwise,

the appliance will not cool properly. Use pans with a depth of up to 6"(15cm). Do not use

damaged rail dividers or pans.

Pans

Rail Dividers

Fig. 7

Rail Divider Layout

-8 Models

SR27A-8 SR48A-8, SR60A-8

Front-to-Back: HS-5187 (13-3/4"; 348 mm) Qty 1

Side-to-Side: HS-5185 (12-1/2"; 319 mm) Qty 2

Front-to-Back: HS-5188 (12-5/8"; 322 mm) Qty 1

Side-to-Side: HS-5189 (13-5/8"; 346 mm) Qty 2

-10, -15M Models

SR36A-10 SR36A-15M

Front-to-Back: HS-5187 (13-3/4"; 348 mm) Qty 2

Side-to-Side (Outer): HS-5185 (12-1/2"; 319 mm) Qty 1

Side-to-Side: HS-5186 (Center) (12-1/2"; 316 mm) Qty 1

Front-to-Back: HS-5184 (20-3/4"; 526 mm) Qty 2

Side-to-Side (Outer): HS-5185 (12-1/2"; 319 mm) Qty 2

Side-to-Side: HS-5186 (Center) (12-1/2"; 316 mm) Qty 2

-12, -12M Models

SR48A-12, SR60A-12, SR72A-12 SR27A-12M, SR48A-12M, SR60A-12M

Front-to-Back: HS-5188 (12-5/8"; 322 mm) Qty 2

Side-to-Side (Outer): HS-5189 (13-5/8"; 346 mm) Qty 2

Side-to-Side (Center): HS-5190 (13-1/2"; 344 mm) Qty 1

Front-to-Back: HS-5184 (20-3/4"; 526 mm) Qty 1

Side-to-Side: HS-5185 (12-1/2"; 319 mm) Qty 4
