Left Drawer

Cartridge Frame

Front Screws

Rear Screws

Fig. 37

Right Drawer

Cartridge Frame

Front Screws

Rear Screws

Drawer Relocation

Drawers and drawer slides are removable.

• To remove a drawer: Remove all items from the drawer. Pull the drawer out to its fully

extended position. Open the safety clips (one on each side) by sliding them forward.

See Fig. 35. Lift up on the handle slightly, then pull to disengage the drawer. Be sure

to support the rear and front of the drawer while removing it. WARNING! Be sure to

close the safety clips when reinstalling the drawer.

• To remove a drawer slide (center slide containing rollers): Open the stop levers

(one on each side) by sliding them to the rear. See Fig. 36. Lift up on the drawer slide

slightly, then pull to disengage the drawer slide. WARNING! Be sure to close the stop

levers when reinstalling the drawer. Drawer slides do not require lubrication, but

drawer slides should be kept clean and free of food.

Note: Drawer slides are dishwasher safe.

21) Place a drawer cartridge frame in place and secure to the rear panel with screws

removed in step 4. See Fig. 37.

22) Using a 1/8" drill bit, drill pilot holes in all 4 front mounting holes.

23) Secure the drawer cartridge to the appliance with the screws removed in step 5.

24) Repeat steps 21 through 23 for the opposite side drawer cartridge frame.

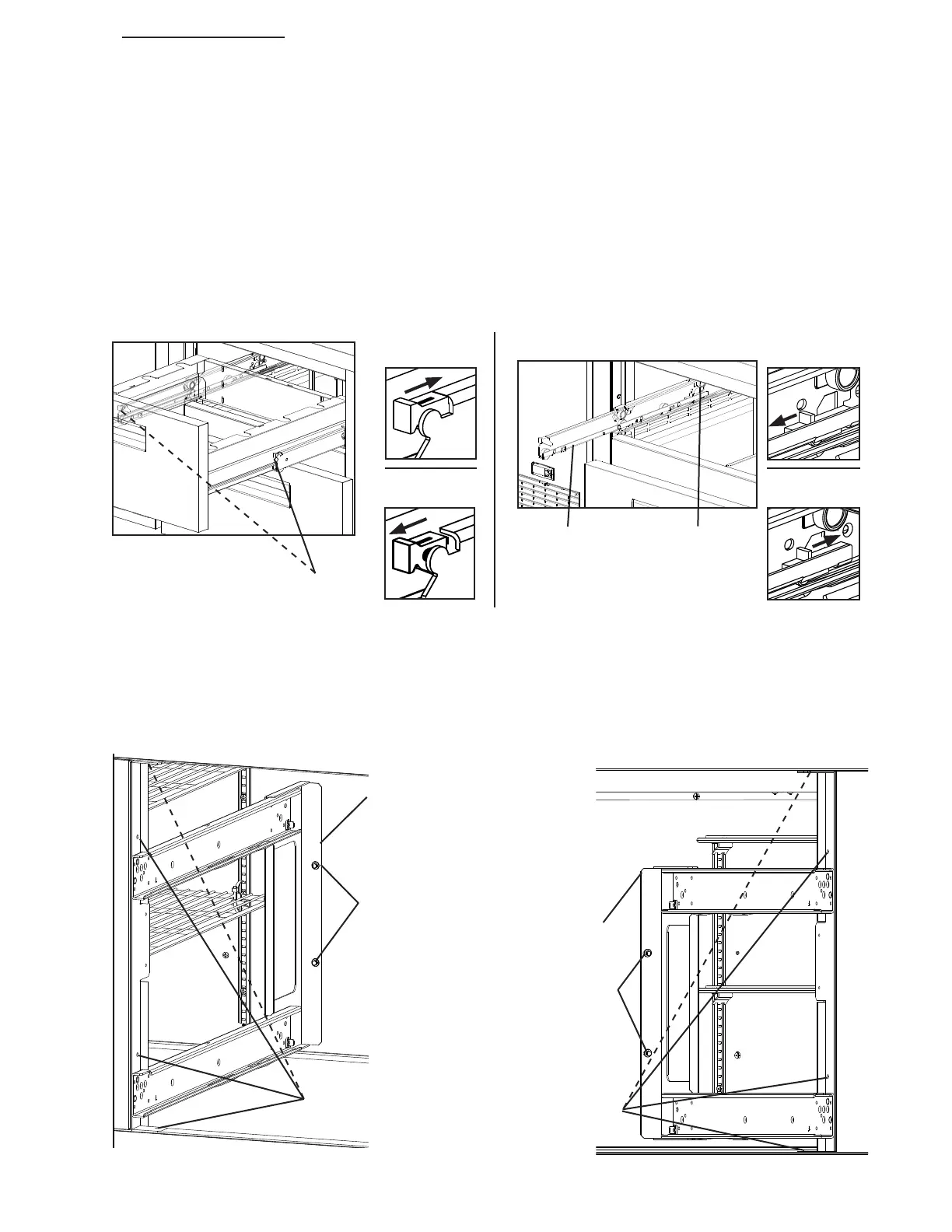

Fig. 35

Safety Clips

Safety Clip

Closed

Fig. 36

Safety Clip

Open

Stop Lever

Drawer Slide

Stop Lever

Closed

Stop Lever

Open
