6. Properly Align Pans and Rail Dividers

NOTICE

The entire rail must be covered by rail dividers and pans (up to 6"(15cm)deep) to

avoid condensation issues and poor cooling performance.

Conrm rail dividers and pans are in place. See Fig.5. For pan size other than 1/3, see

"I.C.6.b) Alternative Pan Sizes" below.

a) Factory Shipped with 1/3 Size Pan and Front-to-Back Rail Dividers

Model Number Pan Size Pan Qty Rail Divider Rail Divider Qty

PR46B(-D2) 1/3 6 Front-to-Back 7

PR60B(-D4) 1/3 8 Front-to-Back 9

PR67B(-D2)(-D4) 1/3 9 Front-to-Back 10

PR93B(-D2)(-D4)(-D6) 1/3 12 Front-to-Back 13

1/3

Size

Pan

Front-to-Back

Rail Dividers

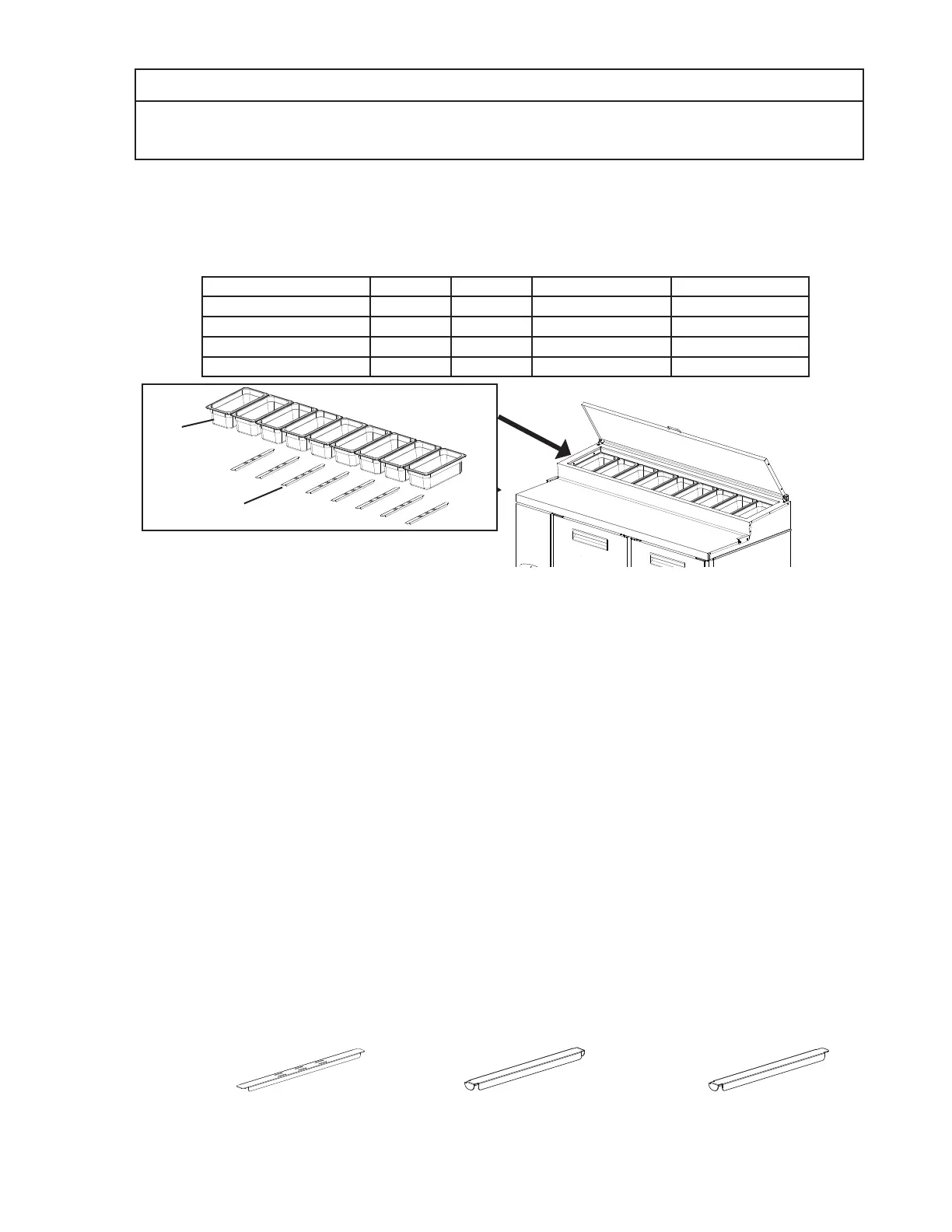

Fig. 5

• Wash the pans before use.

• The entire rail must always be covered by rail dividers and pans to avoid

condensation issues and poor cooling performance.

• Use only pans up to 6" (15 cm) deep. Do not use damaged rail dividers or pans.

• At startup, leave the pans empty and the rail covers closed until the appliance cools

down.

• An extra front-to-back rail divider is included. Use the extra front-to-back rail divider

if a gap remains after all pans and all other rail dividers are in place.

b) Alternative Pan Sizes:

For alternative pan sizes, additional center and outer side-to-side rail dividers are

required. See Fig. 6. NOTICE! The entire rail must be covered by rail dividers and

pans (up to 6" (15 cm) deep). Conrm all rail divider hooks are properly placed

into the front-to-back rail dividers and pans are level. Note: The extra front-to-

back rail divider provided with the appliance may be required in some pan size

combinations to assure that the rail area is fully covered.

Fig. 6

Front-to-Back Rail Divider

Center Side-to-Side Rail Divider

Outer Side-to-Side Rail Divider

Model Shown: PR67B
