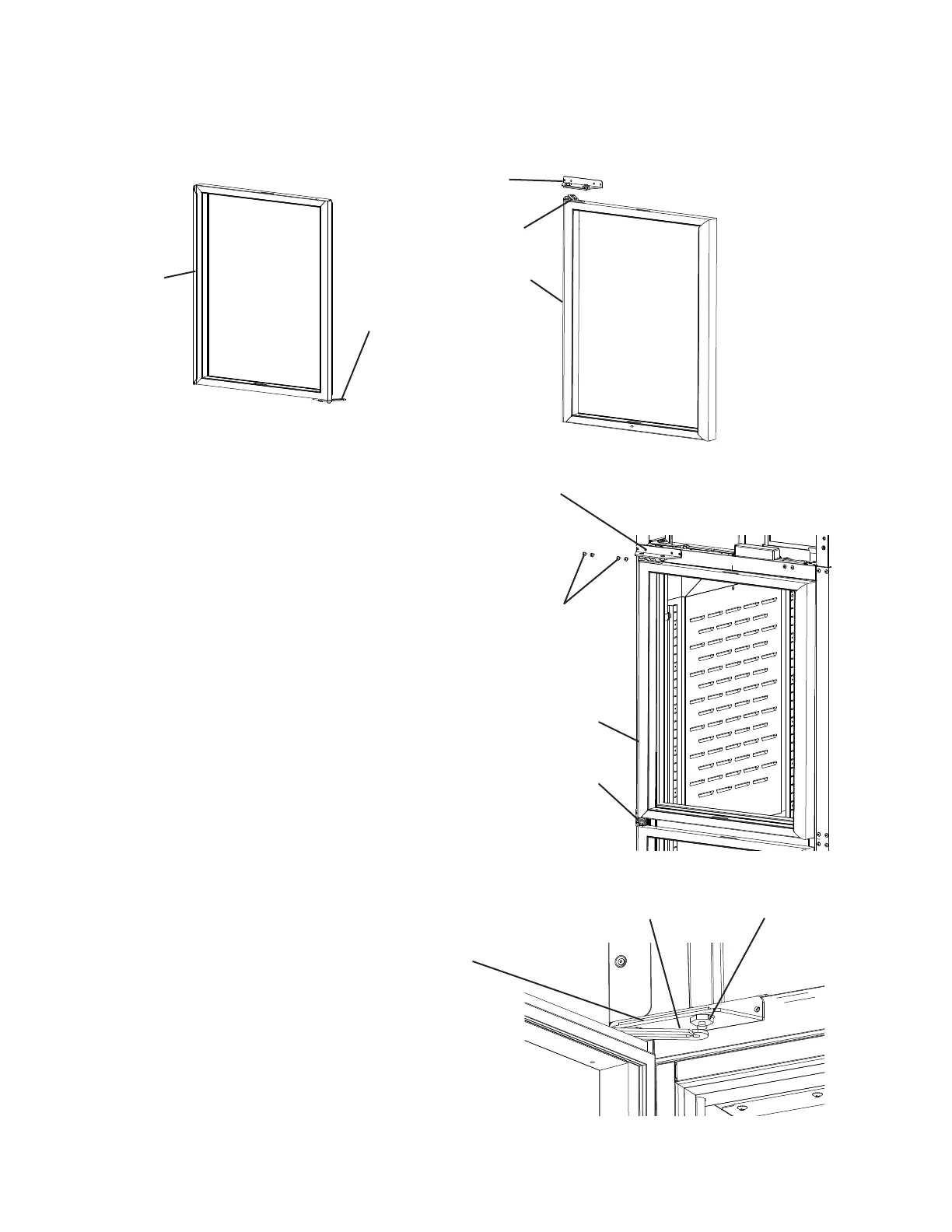

19) While supporting the upper door and upper
hinge bracket, place the upper door onto
the upper center hinge pin on the center
hinge bracket in the closed position, then
secure the upper hinge bracket to the
cabinet. See Fig. 66. NOTICE! Be sure to
reuse the bracket screws for mounting
the bracket as the bracket screws are
5×12 and ller screws are 5×10.
18) Rotate the lower door (making it the upper door) 180 degrees. Rotate the lower hinge
bracket 180 degrees. Conrm the thrust washer is in place on the door, then place the
new upper hinge bracket onto the upper door pin. See Fig. 65.
20) Open the upper door and connect the
upper hinge arm to the slide pin on the
upper hinge bracket, then close the door.
See Fig. 67.
Fig. 65
Fig. 66
Fig. 67
Upper Hinge
Bracket
Upper Hinge
Arm
Upper Door
Upper Hinge
Bracket
Lower Hinge
Arm
Lower Door
Upper Hinge
Bracket 5×12
Mounting Screws
Upper Door
Center Hinge
Pin
Upper Hinge
Bracket
Upper Hinge
Arm
Slide Pin
