Fig. 45
Lower Hinge
Bracket
Lower Hinge
Bracket
Slide Pin
Lower Hinge
Bracket
Bottom Hinge
Bushing
Slide Pin
Backer Plate
Apply Loctite to
Threads Here
Backer Plate
Upper Hinge Bracket
Door (Bottom)

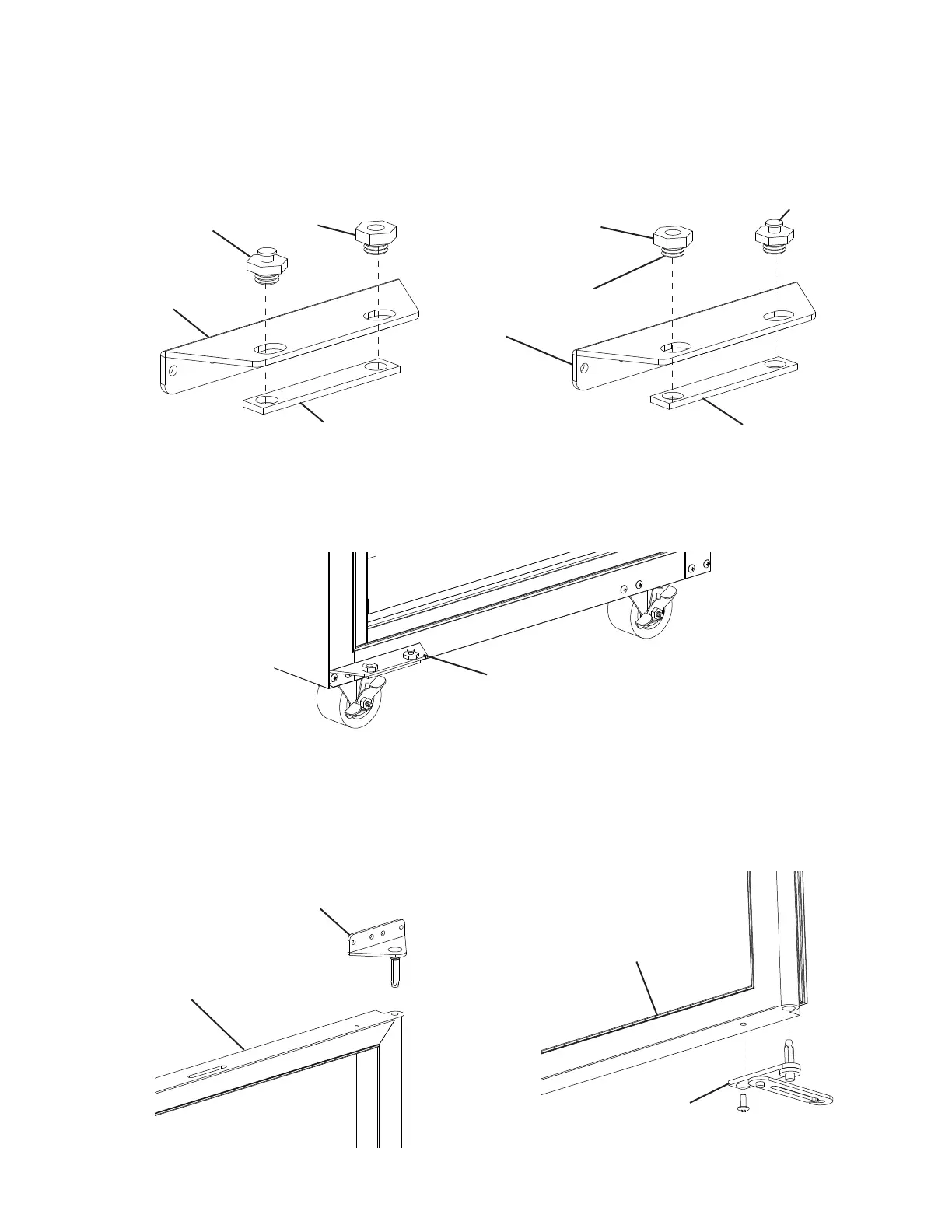

14) Remove the upper and lower hinge brackets from the door. See Fig. 46.
13) Place and secure the new lower hinge bracket in its correct position on the cabinet.
See Fig. 45.
12) Remove the hardware from the lower hinge bracket. Apply Loctite Thread Locker Blue
242 or 243 to the bottom hinge bushing threads then place it and the slide pin in place
on the lower hinge bracket. See Fig. 44. Note: Make sure the ttings are properly
aligned, then start the connection by hand to ensure that it is not cross threaded. Just
snug the ttings, do not tighten the ttings at this time.
Fig. 44
Bottom Hinge
Bushing
Lower Hinge
Bracket
Door (Top)
Fig. 46
