D. DT1A-HS Heated Condensate Pan Installation
WARNING
Failure to install the heated condensate pan in accordance with this manual could
adversely affect safety and result in costly water damage.
1) Remove the heated condensate pan and heated condensate pan bracket from the
accessory bag.
2) Place the heated condensate pan in the heated condensate pan bracket, then using the
4 screws provided in the accessory bag, secure the heated condensate pan bracket to
the rear of the appliance. See Fig. 4.
3) Remove the channel cover from the back of the appliance. See Fig. 5.
4) Remove the heated condensate pan receptacle cover from the heated condensate pan
receptacle. Next, plug the heated condensate pan plug into the heated condensate pan
receptacle. See Fig. 6.

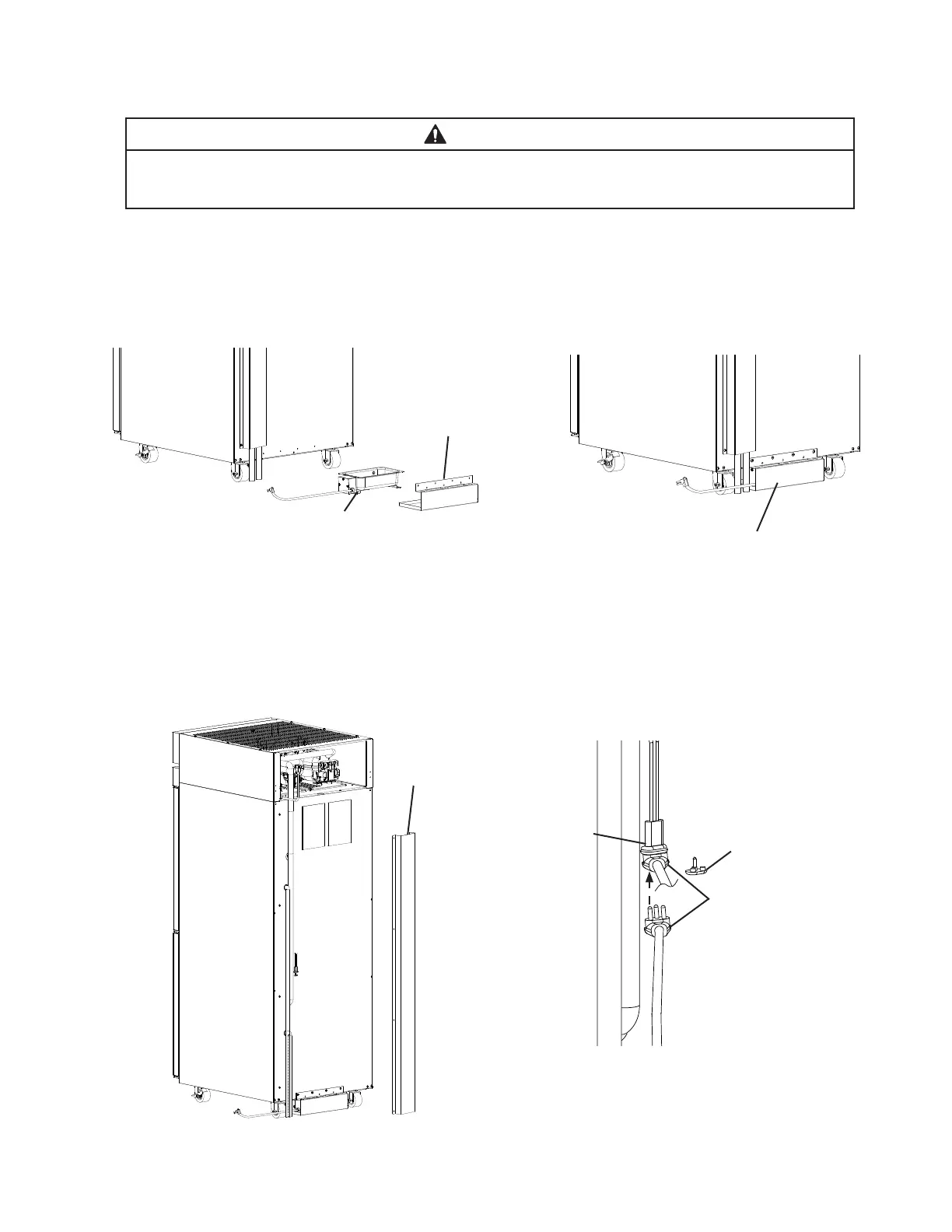

Fig. 4
Heated
Condensate
Pan
Heated
Condensate
Pan Bracket
Heated
Condensate
Pan Assembly
Heated
Condensate
Pan Plug
Heated
Condensate
Pan Receptacle
Cover
Heated
Condensate Pan
Receptacle
Fig. 5
Fig. 6
Channel Cover
