11) Open the icemaker service valves rst, then open the remote condensing unit service
valves.
12) Replace the service valve caps and tighten.
13) Insulate all exposed tubing and ttings.
Hoshizaki Technical Support is available at 1-800-233-1940 for recommendations.

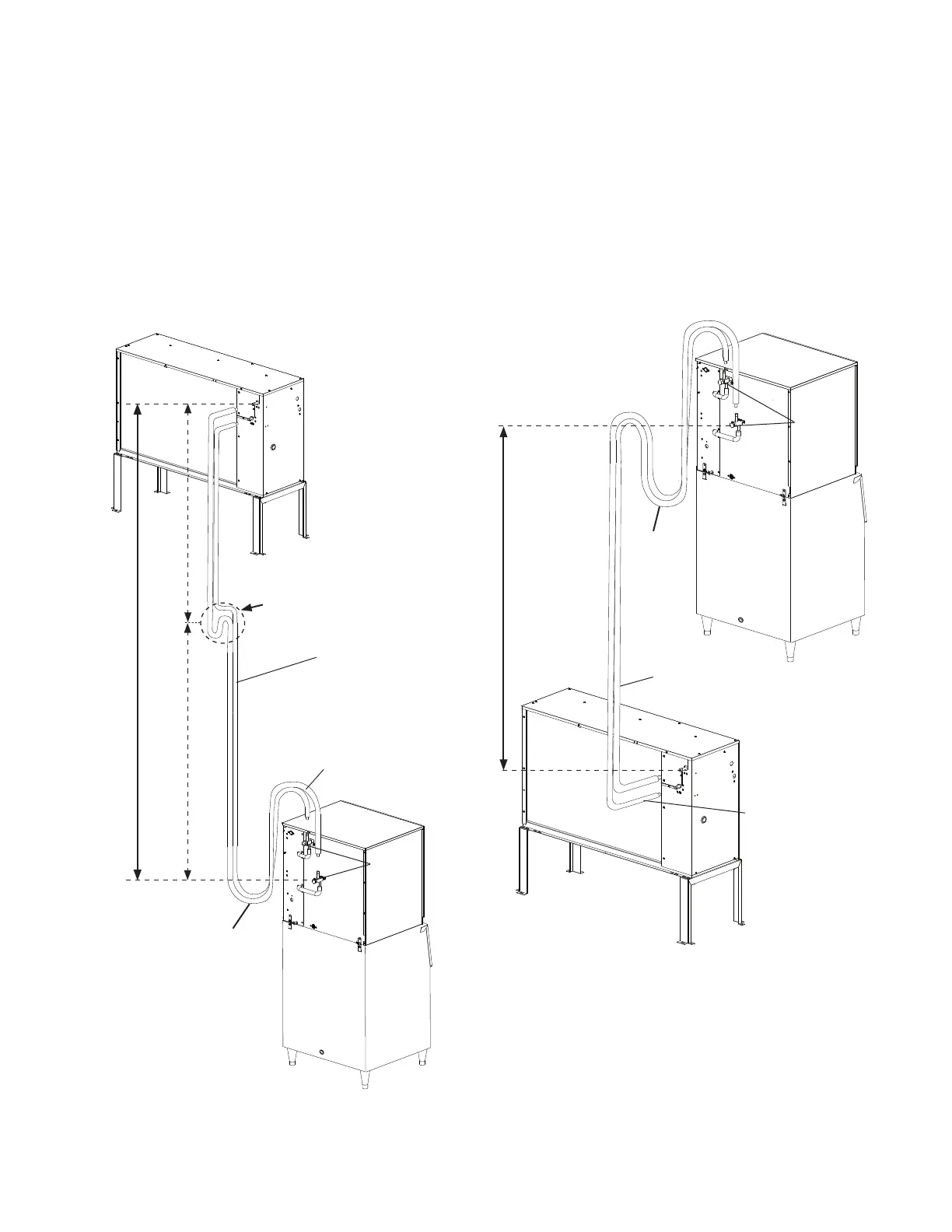

Fig. 14
Suction Line
"S" Oil-Trap
Max. 33 Feet
Max.
16.5
Feet
Max.
16.5
Feet
Remote Condensing Unit
(with compressor)
Bin
Icemaker
Service
Loop
Max. 10 Feet
Remote Condensing Unit
(with compressor)
Icemaker
Service Loop
Bin
Shutoff
Valve
5/8" OD Suction Line
(insulated)
1/2" OD
Liquid Line
(insulated)
1/2" OD
Liquid Line
(insulated)
5/8" OD Suction Line
(insulated)
Shutoff
Valve
