Max.
16.5'
(10 m)
Max.
16.5'
(10 m)

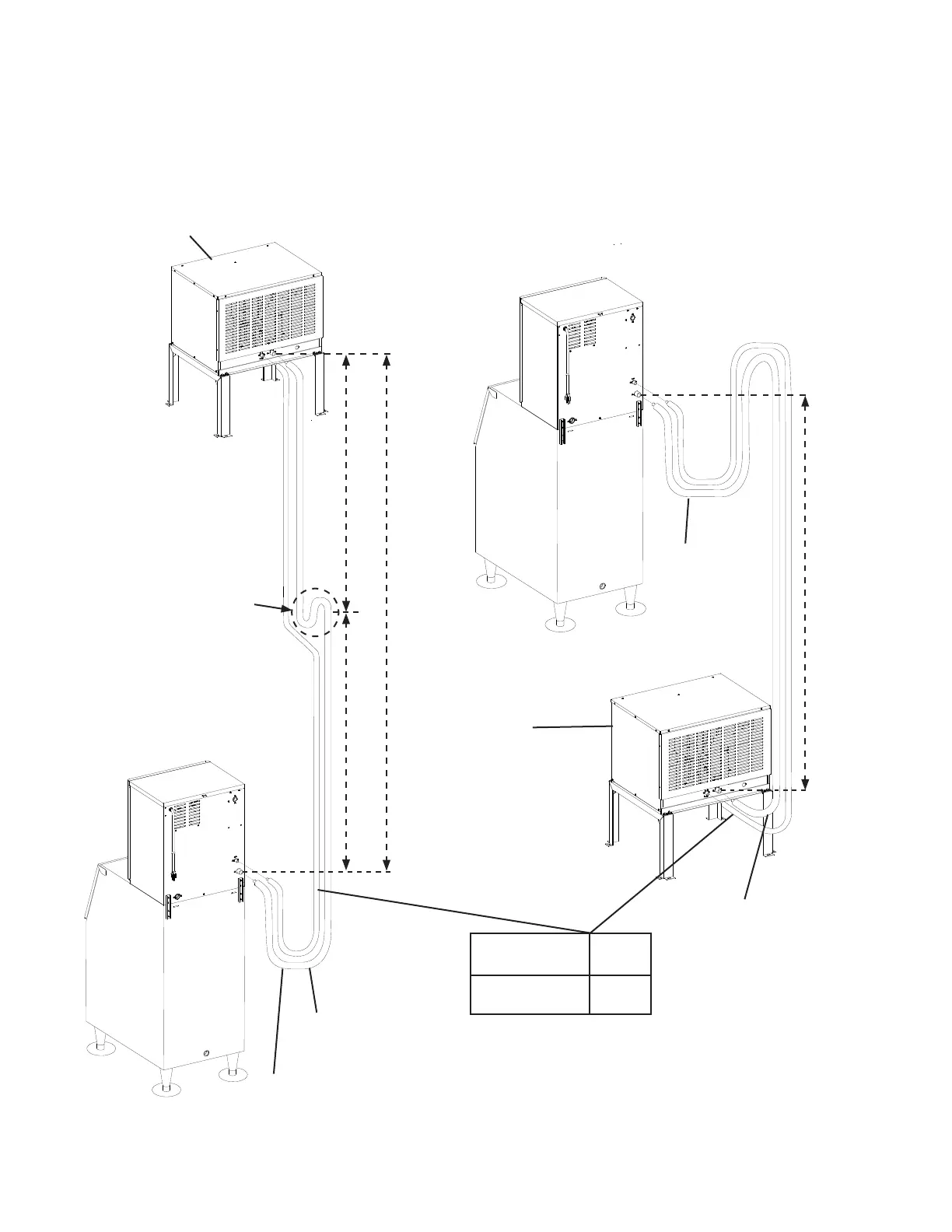

Fig. 8
Remote
Condensing Unit
(with compressor)
Icemaker
Service Loop
Icemaker
Suction Line
"S" Oil-Trap
Service Loop
Remote
Condensing Unit
(with compressor)
5/8" OD Suction Line
(insulated)
Hoshizaki
Icemaker
Liquid
Line
FS-1001MLH-C
FS-1022MLH-C
1/4" OD
Ice
Storage
Bin
Ice
Storage
Bin
Max. 33' (10 m)
Max. 10' (3 m)
5/8" OD Suction Line
(insulated)
12) Replace the valve caps and tighten.
13) Insulate all exposed tubing and ttings.
Hoshizaki Technical Support is available at 1-800-233-1940 for recommendations.
