3. Remote Models (MRJZ(-C)(-SC)(-CB))
NOTICE
• Allow 6" (15-cm) clearance at rear
and sides for proper air circulation
and ease of maintenance and/or
service should they be required. Allow
24"(61-cm) clearance at top to allow
for removal of the auger.
• The dispenser unit/ice storage bin
opening must accommodate the
bottom opening as in the illustration.

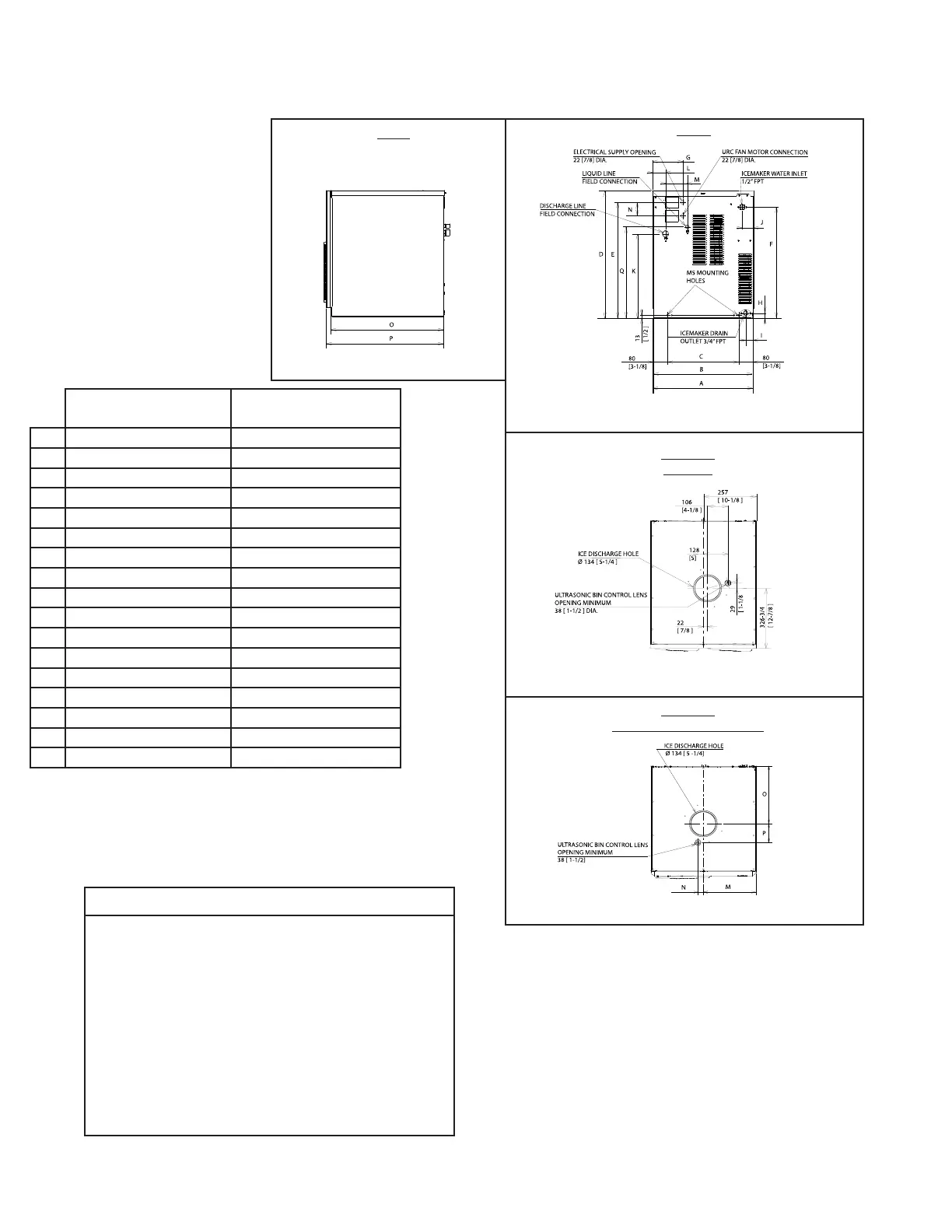

F-1002MRJZ(-C)(-SC) FD-650MRJZ-C
FD-1002MRJZ-C(-CB)
A 560 [22] 560 [22]
B 556 [21-7/8] 556 [21-7/8]
C 395 [15-9/16] 395 [15-1/2]
D 659 [25-15/16] 659 [26]
E 599 [23-9/16] 599 [23-5/8]
F 575 [22-5/8] 575 [22-5/8]
G 169 [6-5/8] 169 [6-5/8]
H 24 [15/16] 23 [7/8]
I 35 [1-3/8] 43 [1-3/4]
J 65 [2-1/2] 62 [2-1/2]
K 434 [17-1/16] 434 [17-1/8]
L 40 [1-9/16] 70 [2-3/4]
M 100 [3-15/16] 60 [2-3/8]
N 70 [2-3/4] 70 [2-3/4]
O 675 [26-5/8] 587 [23-1/8]
P 694 [27-3/8] 607 [23-13/16]
Q ------- 465 [18-3/8]
Units: mm [in.]
Rear
Side
Bottom
F-1002
Model Shown: FD-650MRJZ-C
Model Shown: FD-650MRJZ-C
Model Shown: F-1002MRJZ-C
Bottom
FD-650, and FD-1002
Model Shown: FD-650MRJZ-C
