6. Install the Rail Cover (Prep Table Models)

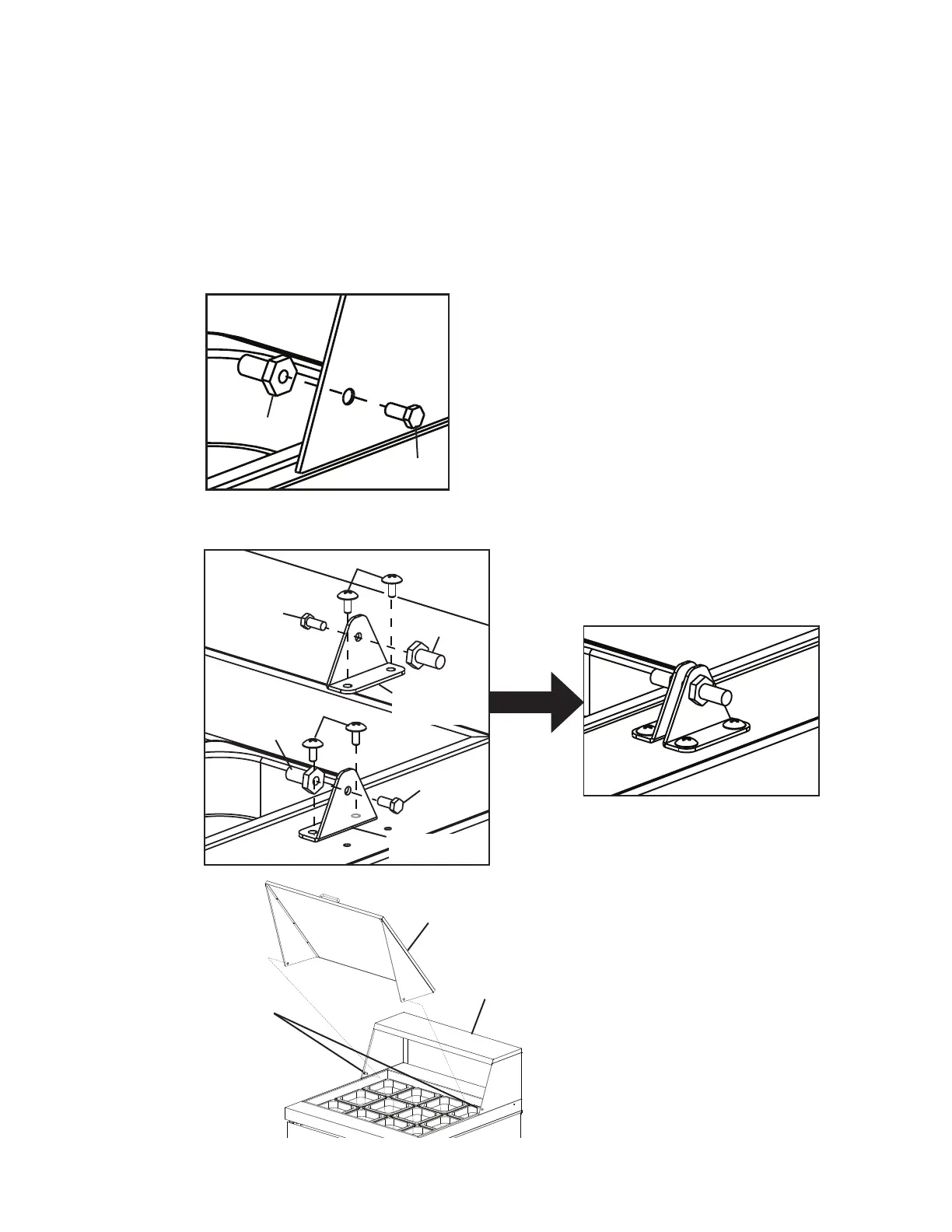

1) Install and tighten the pivot pins and pivot bolts on the rail hood with the pivot pin shafts
facing inward towards the open rail area. See Fig. 8.
2) Models with Two Rail Covers: Install and tighten the pivot pins and pivot bolts to the
center hinge brackets, then secure the center hinge brackets using the 4×8 screws
provided. See Fig.9.
3) Install the rail cover(s) by squeezing in slightly on the rail cover side panels and aligning
the holes in the rail cover side panels with the pivot pins. See Fig. 10.
Fig. 8
Pivot Bolt
Rail Hood
Pivot Pin
Fig. 9
Fig. 10
Rail Hood
Rail Cover
Pivot Pins
4×8 Screws
Pivot Bolt
Pivot Bolt
Pivot Pin
Pivot Pin
4×8 Screws
Center Hinge
Bracket
For Models with Two Rail Covers
Center Hinge
Bracket
