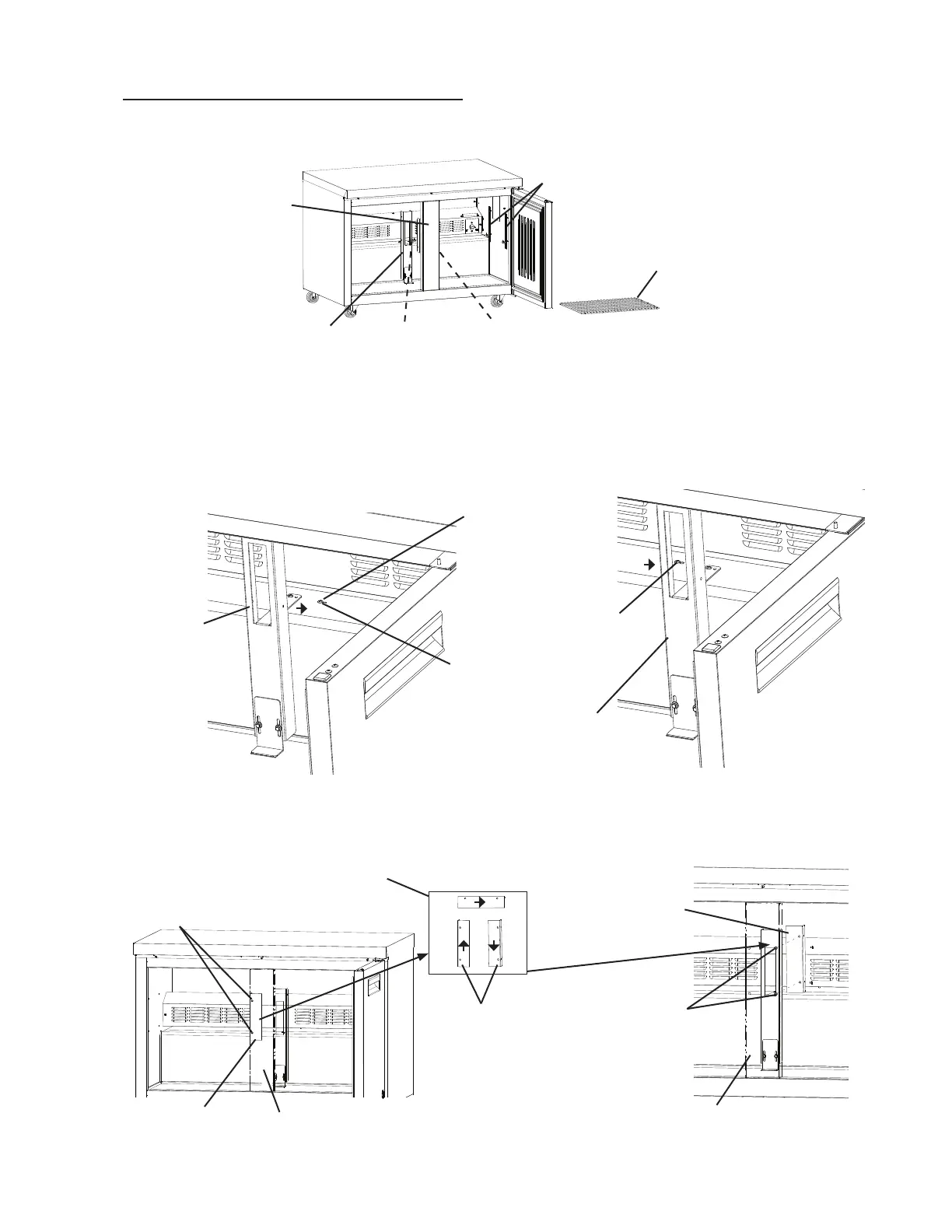

Pilaster and Inner Brackets Relocation
5) Remove the shelf from the door section, then remove the pilasters.
See Fig. 27.
7) Remove the vertical mullion bracket. Rotate 180 degrees and mount it in the vertical
mullion right mounting holes. See Fig. 29.
Shelf
Right Side Pilasters
Fig. 27
Fig. 29
6) Remove the center rear drawer frame bracket and the ller screw. See Fig. 28. Slide the
center rear drawer frame bracket over to the new location and secure it. Place the ller
screw in the former center rear drawer frame bracket hole.
Fig. 28
Center Rear
Drawer Frame
Bracket
Center Rear
Drawer Frame
Bracket
Center Rear
Drawer Frame
Bracket
Vertical Mullion
Bracket
Vertical Mullion Bracket Rotation
Vertical Mullion
Vertical Mullion
Vertical Mullion
Pilaster
Center Rear
Pilaster
Vertical
Mullion
Bracket
New Center
Rear Drawer
Frame Bracket
Location
Vertical Mullion
Bracket
Vertical Mullion
Right Mounting
Holes
Vertical Mullion
Filler Screw
Filler Screw
Vertical Mullion Left
Mounting Holes
