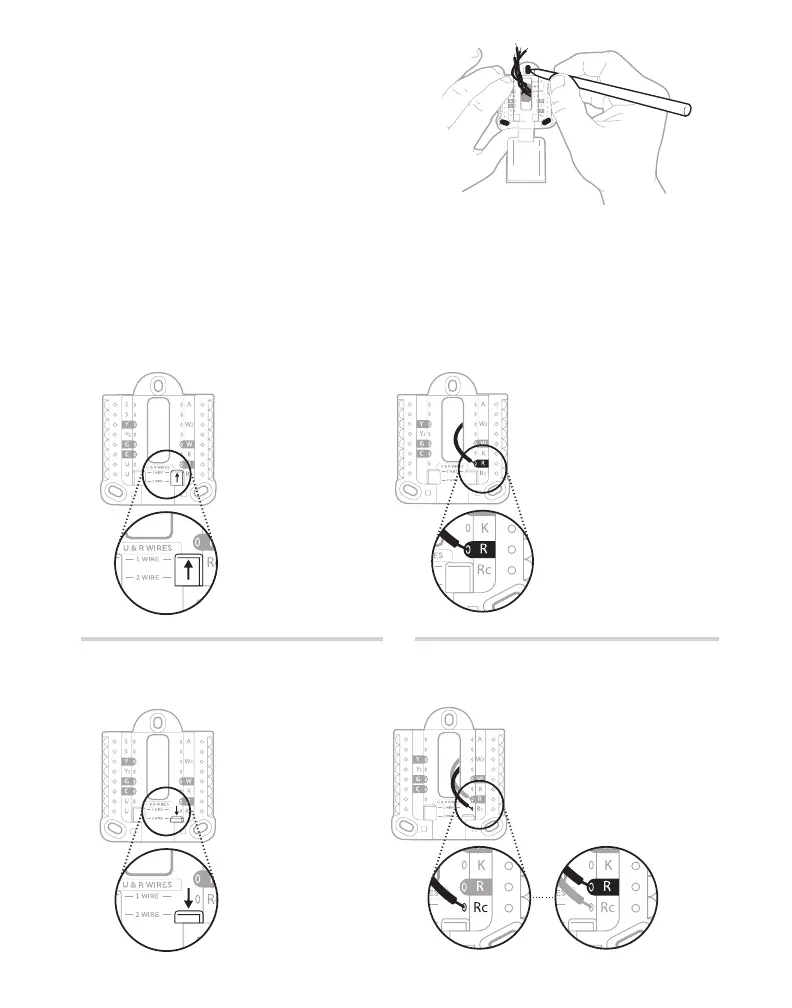

If you have 1 R-wire (R,Rh, or Rc)
1. Set R-switch
to the up
po
sition.
2. Insert your
R-wire (R, Rh
or Rc) into
R-terminal.
M37226
M37228A
If you have 2 R-wires (R or Rh, and Rc)
or
1. Set R-switch
to the down
position.
2. Insert your Rc wire
into Rc-terminal
3. Insert your R
or Rh wire into
R
Terminal.
M37227
M37229A
Insert wires into the inner holes of the terminals on the UWP. The tabs will
stay down once the wire is inserted.
NOTE: Alternate wiring options are shown on the following pages
3 Set R-switch position and insert
R-wire or wires.
Set the R-switch up or down
based on your wiring notes in
Step 7 of the section Removing
the Old Thermostat.
M37225
