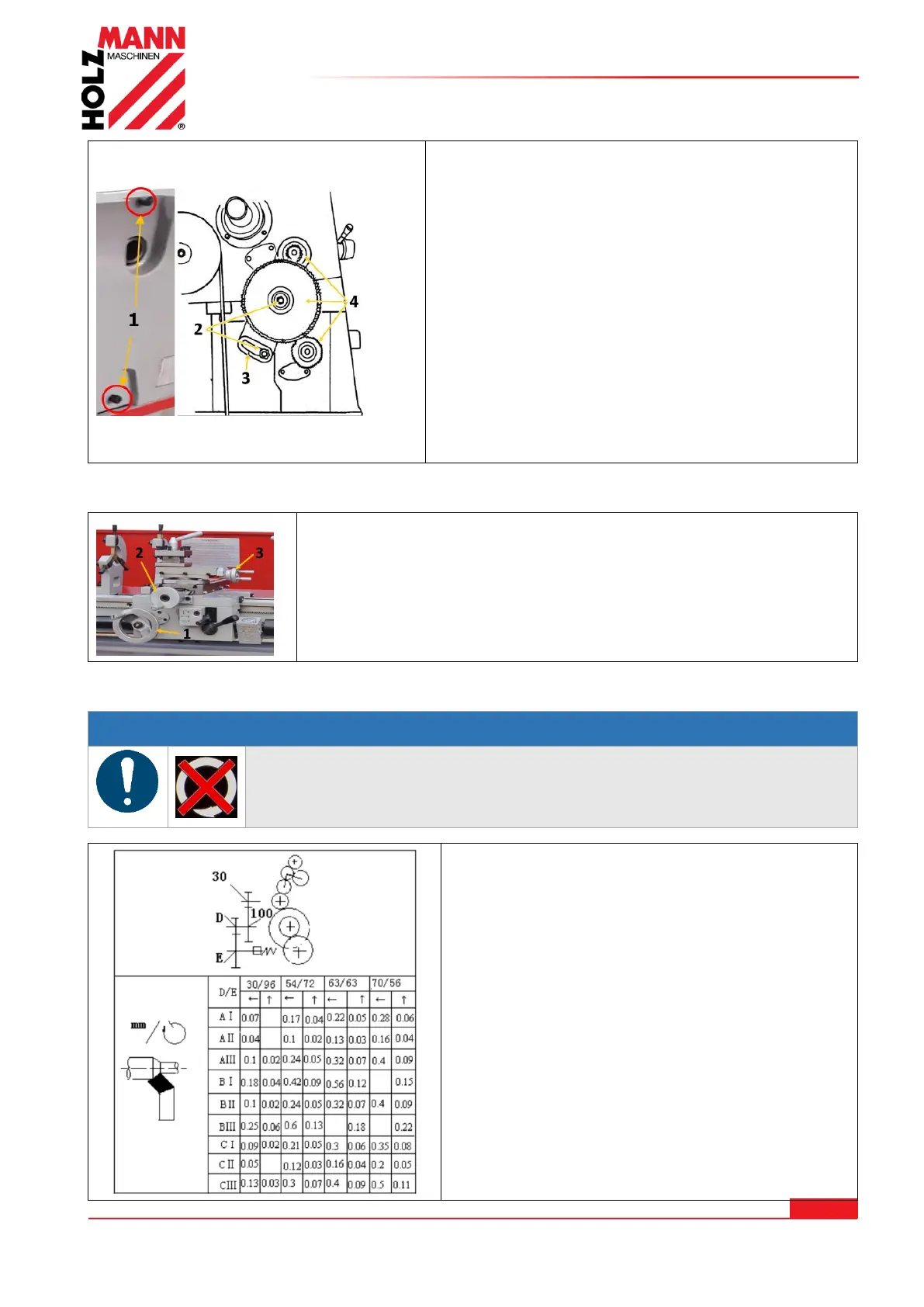

OPERATION
HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at 52
ED750FDQ
1. Disconnect the machine from the power source
and secure it against unintentional start-up.
2. Loose the screws (1) and remove the cover on
the left side of the headstock.
3. Loosen the screws (2) and move the swing
frame (3) out of the way.
4. Change the gear wheels (4) according to the
feed or thread table.
5. Position the swing frame so that the large gear
wheel meshes with the smaller gear wheels.
Then tighten. Make sure that there is a
clearance of 0.005 - 0.007 mm between the
gears. (Adjusting the gears too tightly will result
in excessive noise and increased wear.)
6. Remount the cover (pay attention to the
position switch!) and reconnect the machine to
the power source.
18.5.2 Manual feed
The manual feed of the longitudinal slide is carried out by
means of handwheel (1).
The manual feed of the cross slide is carried out by means of
handwheel (2).
The manual feed of the top slide is carried out by means of
handwheel (3).
18.5.3 Automatic feeds
NOTICE
Disconnect the machine from the mains and wait until the machine has
come to a complete standstill before making any changes to the switching
positions of the selector switches. If necessary, turn the jaw chuck by hand
to assist in engaging a switch.
The feed spindle is switched on via the selector
switch feed direction (C) on the headstock and
thus determines the feed direction
Move the selector lever to the left or right
according to the symbols
Use selector switch feed (D) to set the desired
feed rate or thread pitch
The selectable feed rates for longitudinal feed
range from 0.07 to 0.56 mm/r.
The selectable feed rates for cross feed range
from 0.02 – 0.222 mm/r.
Use the tables on the side of the housing of the
gearbox to set the desired feed rate.
