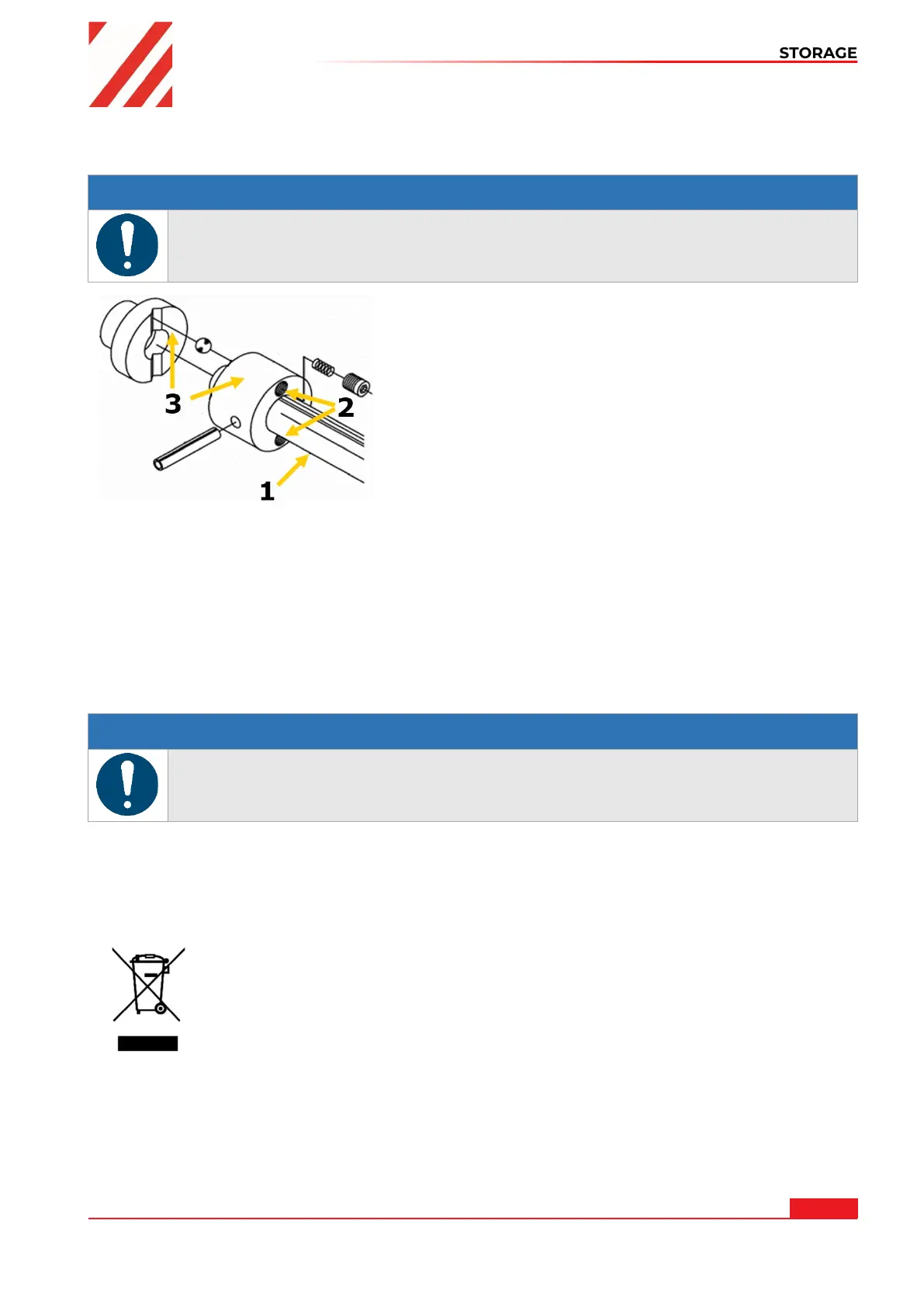

STORAGE
HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at 86
ED1000KDIG | ED1500KDIG
20.1.8 Adjusting the overload clutch on the feed spindle
NOTICE
Never fully tighten the overload clutch set screw beyond the normal setting described
in this procedure. Severe gear damage could result.
The lathe is equipped with a spindle (1) overload clutch (3),
which connects the drive hub to the feed spindle by means
of a set of spring-loaded internal balls. This coupling helps to
protect the lock case from overload and the machine from
damage. The feed screw coupling is set at the factory, and if
only readjusted when there is a problem, the coupling can
be adjusted to the required position.
The clutch slips, for example, if the path of the longitudinal
or transverse slides is obstructed, if the tool collides with a
workpiece shoulder, if the slide lock is actuated from the left
when the feed selector lever is engaged, or if the cut is too
deep.
Adjusting the clutch:
Disconnect the machine from the mains!
If the clutch slips under normal working load and there is no problem with the feed system, the
clutch spring pressure must be increased. To do this, tighten the two set screws (2) one eighth of a
turn and check the clutch again for slippage.
If, for any reason, the clutch becomes jammed or stuck and does not slip if it should, the clutch
spring pressure must be reduced. To do this, loosen the two set screws (2) by one eighth of a turn
and then check again for slippage.
21 STORAGE
NOTICE
Improper storage can damage and destroy important components. Only store packed
or unpacked parts under the intended environmental conditions!
When the machine is not in use, store it in a dry, frost-proof and lockable place to prevent the
formation of rust on the one hand and to ensure that unauthorised persons and in particular
children have no access to the machine on the other hand.
22 DISPOSAL
Observe the national waste disposal regulations. Never dispose of the machine,
machine components or equipment in residual waste. If necessary, contact your
local authorities for information on the disposal options available.
If you buy a new machine or an equivalent device from your specialist dealer, he
is obliged in certain countries to dispose of your old machine properly.
