MAINTENANCE
HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at 83
ED1000KDIG | ED1500KDIG

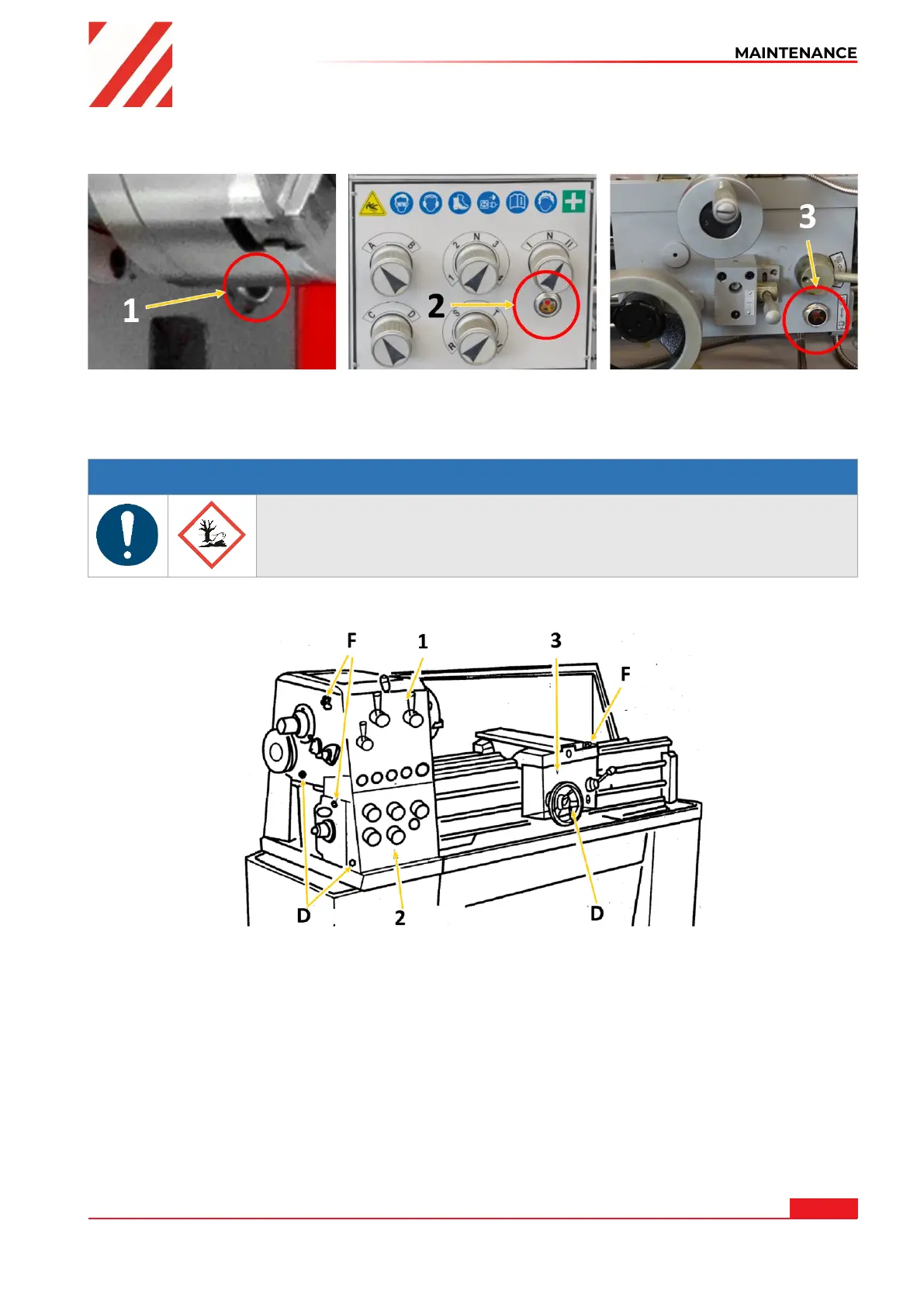

20.1.2 Visual inspection of oil levels
Check oil levels of headstock (1), feed gear (2) and apron (3) before starting work or after every
maintenance and repair. Oil level must reach at least to the middle or top mark.
20.1.3 Oil change headstock, feed gear and apron
NOTICE
Lubricants are toxic and must not be released into the environment. When
changing, use suitable collecting containers with sufficient volume! Follow
the manufacturer's instructions and, if necessary, contact your local
authority for further information on proper disposal.
Supply gear oil (recommended for ISO 12925-1 CKD, DIN51517 Part 3 CLP, US Steel 224, AGMA 9005-
E02) with a viscosity of 220.
Headstock (1)
The bearing of the headstock is in an oil bath. Make sure that the oil level always reaches the mark
of the sight glass. To change the oil remove the cover on the left side of the headstock, drain the oil
by removing the drain plug (D). To refill the oil use the refill opening (F). Remount the cover. Check
the oil level regularly.
First oil change (running-in oil) after 100 operating hours, then change the oil once a year or after
1000 operating hours.
Feed gear (2)
Make sure that the oil level always reaches the mark of the sight glass. To change the oil remove the
cover on the left side of the headstock, drain the oil by removing the drain plug (D). To refill the oil
use the refill opening (F). Remount the cover. Check the oil level regularly.
First oil change (running-in oil) after 100 operating hours, then change the oil once a year or after
1000 operating hours.
