OPERATION
HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at 73
ED1000KDIG | ED1500KDIG

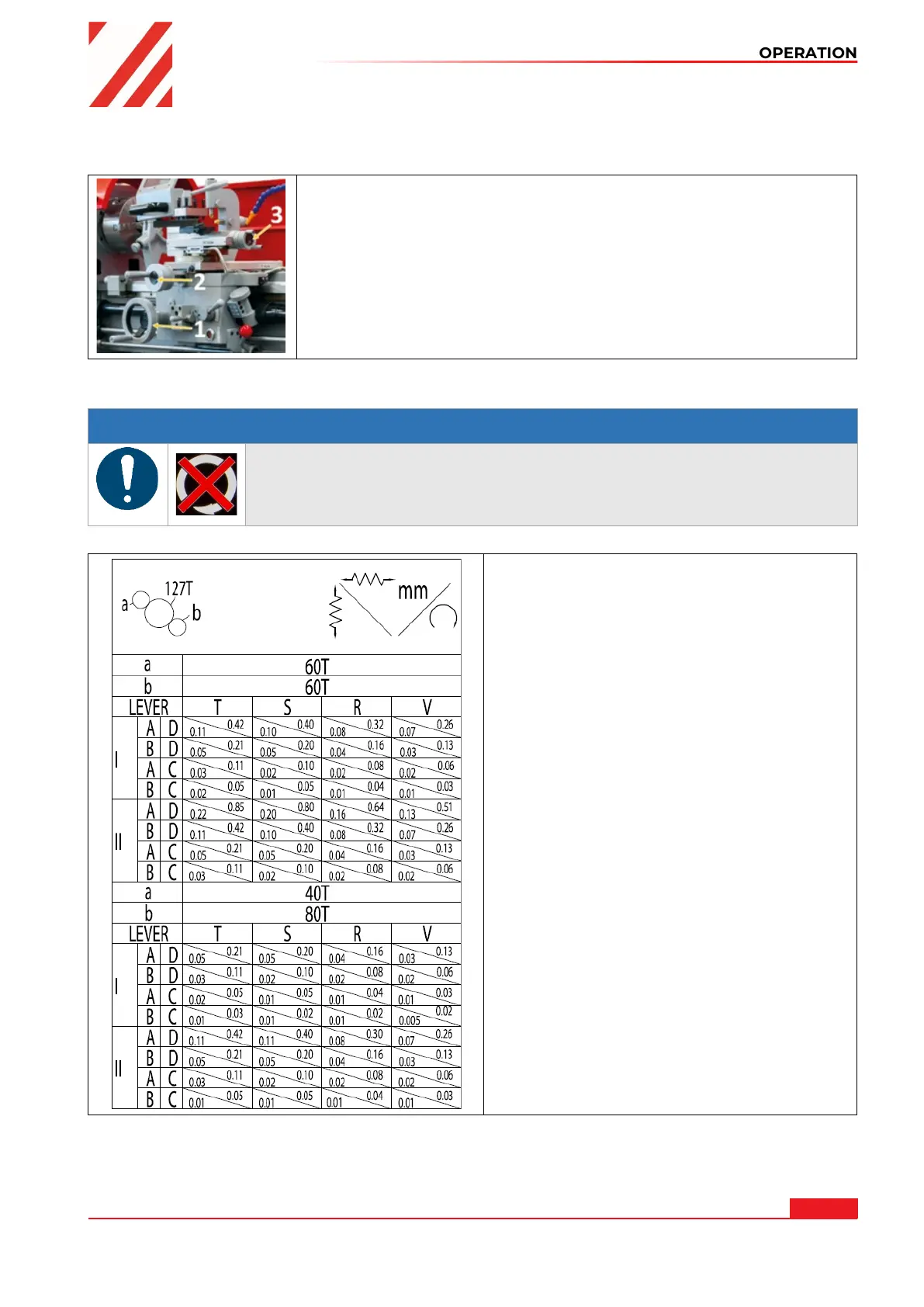

18.5.2 Manual feed
• The manual feed of the longitudinal slide is carried out by
means of handwheel (1).
• The manual feed of the cross slide is carried out by means of
handwheel (2).
• The manual feed of the top slide is carried out by means of
handwheel (3).
18.5.3 Automatic feeds
NOTICE
Disconnect the machine from the mains and wait until the machine has
come to a complete standstill before making any changes to the switching
positions of the selector levers. If necessary, use the intermittent push
button to assist in engaging a lever.
The feed spindle is switched on via the feed
direction selector lever (A) on the headstock
and thus determines the feed direction.
Move the selector lever to the left or right
according to the symbols.
Use selector switches (D, H, I) to set the
desired feed rate or thread pitch.
The selectable feed rates for longitudinal feed
range from 0,02 to 0,85 mm/r.
The selectable feed rates for cross feed
range from 0,005 to 0,22 mm/r.
Use the tables on the side of the
housing of the gearbox to set the
desired feed rate.
L
EVER = selector switch
T = number of teeth; e.g. 60T
