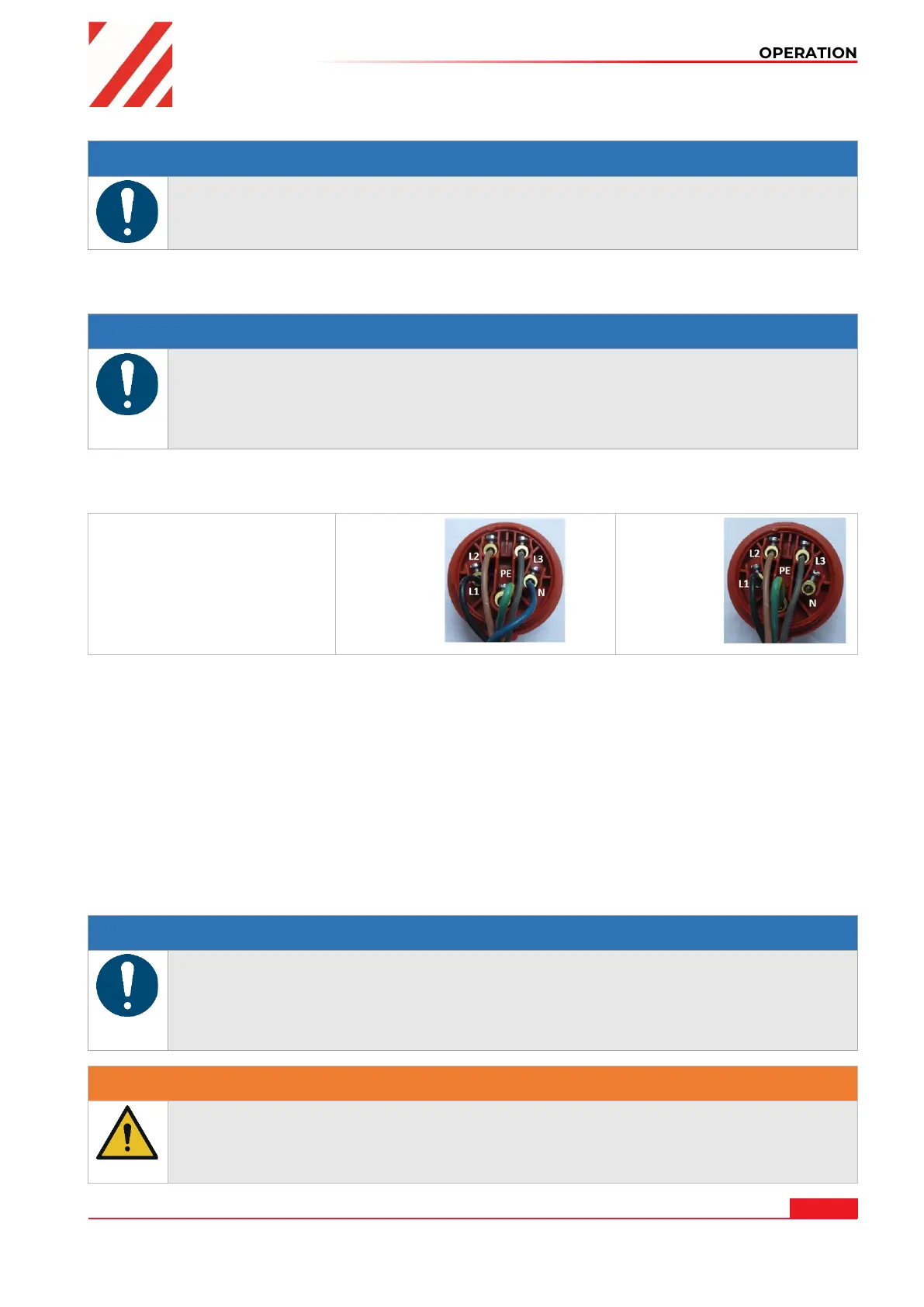

OPERATION
HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at 68
ED1000KDIG | ED1500KDIG
NOTICE
Deviation of the supply voltage and current frequency
A deviation from the value of the supply voltage of ± 5% is permissible.
A short-circuit fuse must be provided in the power supply system of the machine!
3. Find the required cross-section of the supply cable (it is recommended to use a cable type
H07RN, taking measures to protect against mechanical damage) in a current capacity data
sheet.
NOTICE
Rotary current machines must always be connected to 3 phases and a protective wire
(PE). Check the correct running direction of the machine immediately after making
the electrical connection! The jaw chuck must rotate counterclockwise when the gear
lever on the lock case is lowered. If necessary, replace two of the three phases (L1/L2 or
L1/L3)!
4. Connect the supply cables to the corresponding terminals in the input box (L1, L2, L3, N (if
necessary), РЕ). If there is a СЕЕ plug, the connection to the mains is made by an
appropriately supplied СЕЕ coupling (L1, L2, L3, N, РЕ).
Plug connection 400V:
5-wire:
with
N conductor
4-wire:
without
N conductor
18 OPERATION
18.1 Operations preparation
Check Screw Connections
Check all bolted connections and tighten if necessary.
Check Oil Levels
Check the oil levels and top up with oil if necessary.
Check Coolant
Check the coolant level and top up the coolant if necessary.
18.2 Retracting the machine
NOTICE
Never shift the gears of the machine while the machine is in operation and make sure
that both the shift lever tapping (lock nut) and the engaging lever cross feed -
longitudinal feed are disengaged before putting the machine into operation!
Otherwise the carriage may be pushed forward into the chuck or tailstock and cause
serious damage.
WARNING
Before starting the machine, make sure that you have followed all assembly and
adjustment instructions, that you have read the instructions and that you are familiar
with the various functions and safety features of this machine. Disregarding this
warning may result in serious injury or even death!
