16

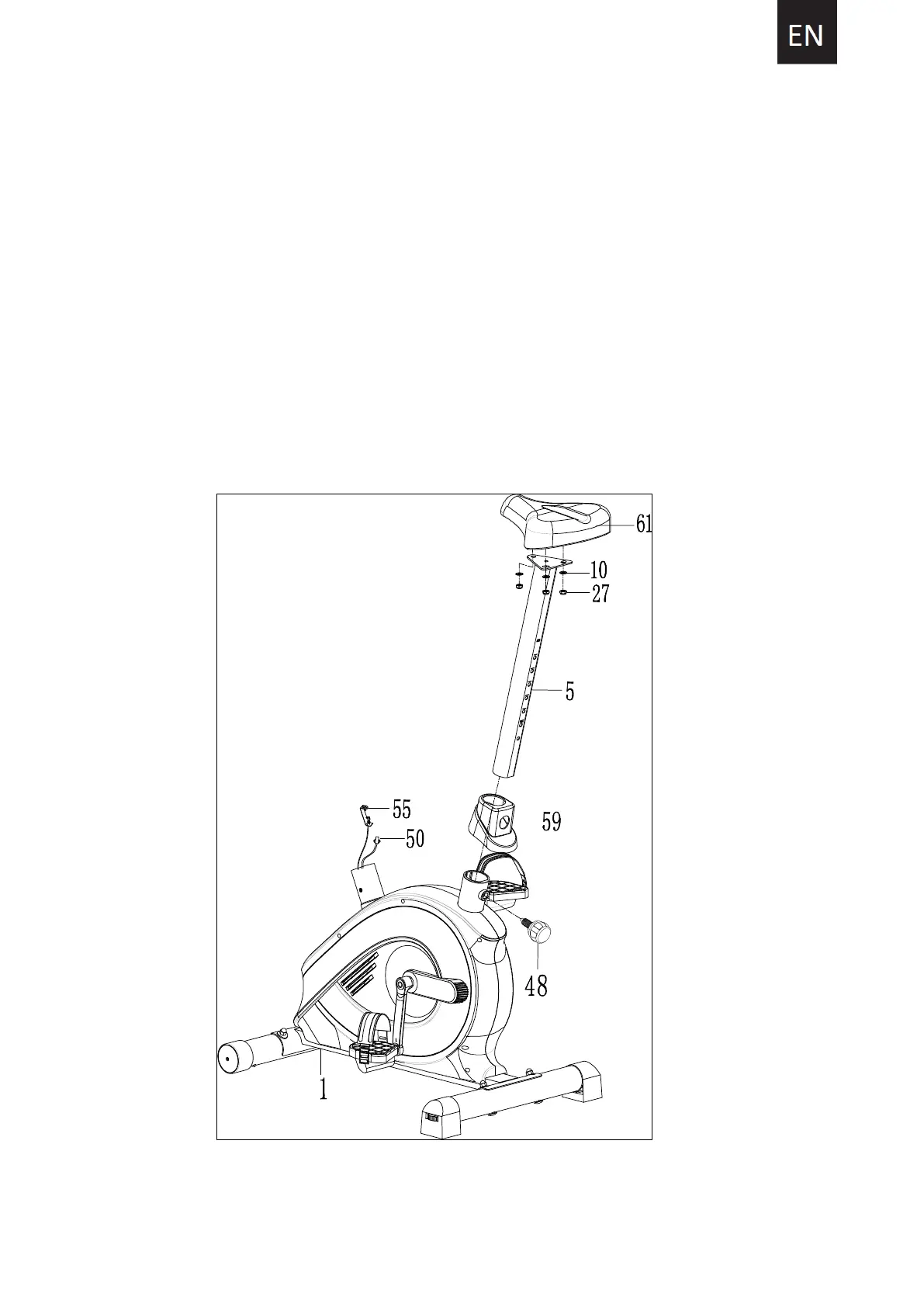

2. Seat Post, Seat Post Cover and Seat Cushion Installation
Slide the Seat Post Cover (59) onto the tube of the Main Frame (1).
Insert the Seat Post(5) into the Seat Post Bushing (53) on the tube of the Main Frame (1)
and then attach the Seat Post Knob (48) onto the tube of the Main Frame (1) by turning it in
a clockwise direction and lock the Seat Post (5) in the suitable position.
Remove three M8 Nylon Nuts (27) and three Ø16xØ8x1.5 Washers (10) from underside of
the Seat Cushion (61).
Guide bolts on underside of the Seat Cushion (61) through holes on top of the Seat Post (5),
attach with three M8 Nylon Nuts (27) and Ø16xØ8x1.5 Washers (10) that were removed.
