- 10 -
• English
Operating and Installation Instructions 1.0SI SERIES S210
4 Electrical Connections
The following section describes how to make the electrical connections and how to mount the cover
plate.
Caution! The manufacturer's specification of protection classes IP 44 resp. IP 66
(EN60529) for the overall construction only applies if the instructions in this section are
followed during installation.

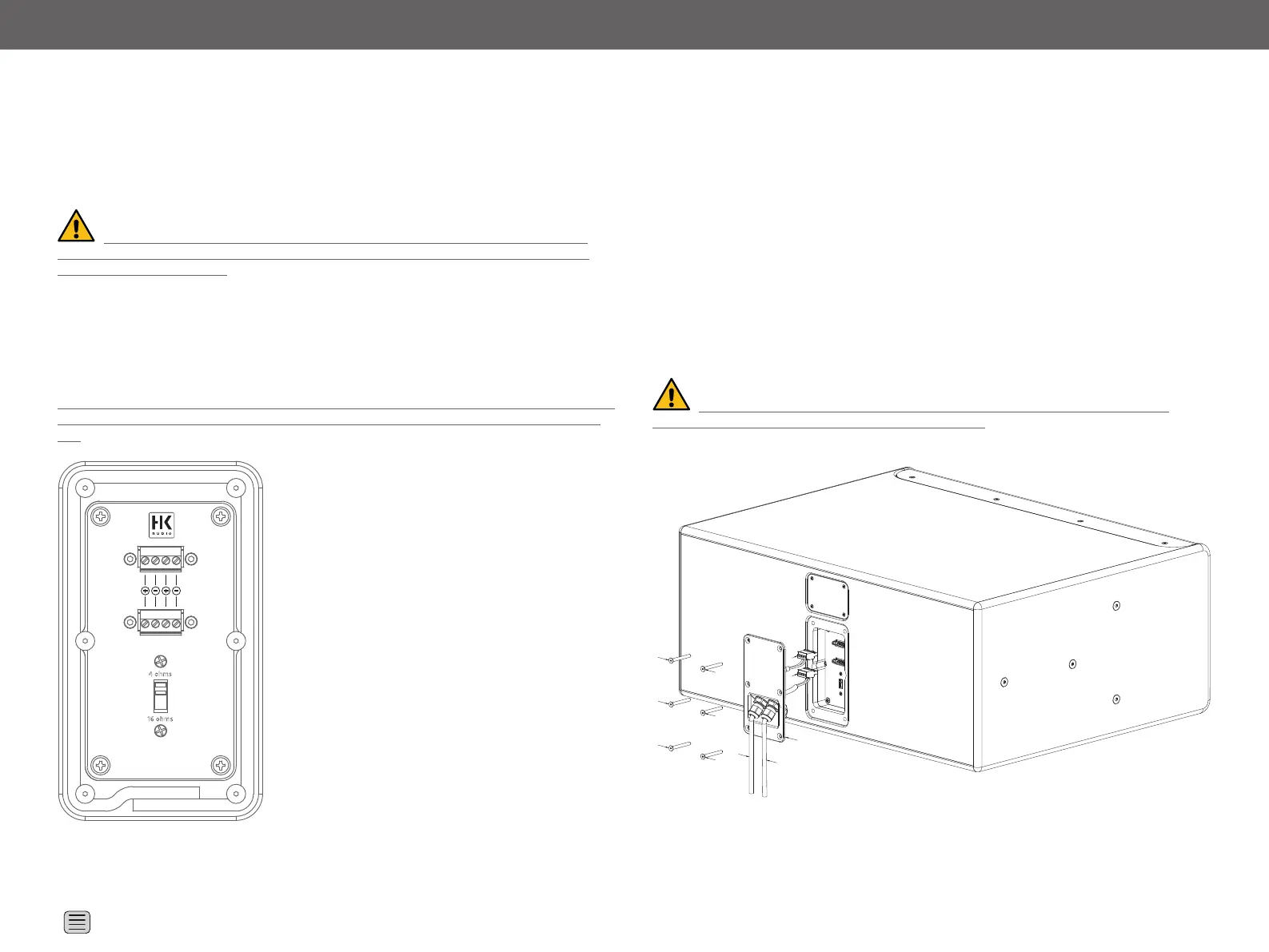

4.1 Electrical Connections for S210 V und S210 P
Two 4-pole connectors are available for wiring the S210 V or S210 P. These always have two poles and
are electrically connected in parallel.
Before starting the cabling, the speaker cable (not yet stripped) must be pushed through the
opened PG gland of the enclosed cover plate. Further notes on mounting the cover plate in
4.2.
4 ohms
16 ohms
Only one conductor may be connected to each clamping point. It is not permissible to insert several
conductors into the same clamping point, as these are not designed for this and could become loose in
the long term.
As a general rule, we recommend that all connection cables be provided with (gas-tight) crimped wire
end sleeves to prevent the oxidation of the conductors in the long term. Non-crimped (bare) conductors
form an oxide layer in the long term, which worsens the contact resistance at the terminals.
In practice, it has proven useful to connect one connection cable per connector, because this makes
the actual assembly more convenient in confined spaces or when the cables are pulled in dierent
directions. However, all conductors can also be inserted to only one connector, as they are electrically
connected in parallel (as described above).
4.2 Mounting the Cover Plate
As described in 4.1, the connecting cable must be pushed through the opened PG gland(s) before
making the electrical connections. The sealing material (Isozell) enclosed with the cover plate must be
glued all around in the areas provided for this purpose on the back before installation. Make sure that it
is glued neatly. Under no circumstances may the sealing material protrude to the side and/or be visible
from the outside.
Note: It is not permissible to apply the sealing material (Isozell) directly to the
speaker enclosure. This will result in a lack of tightness.
2
3
3
2
1
5
5
3
3
4
4
4 Electrical Connections
