- 21 -
• English
Operating and Installation Instructions 1.0SI SERIES P10

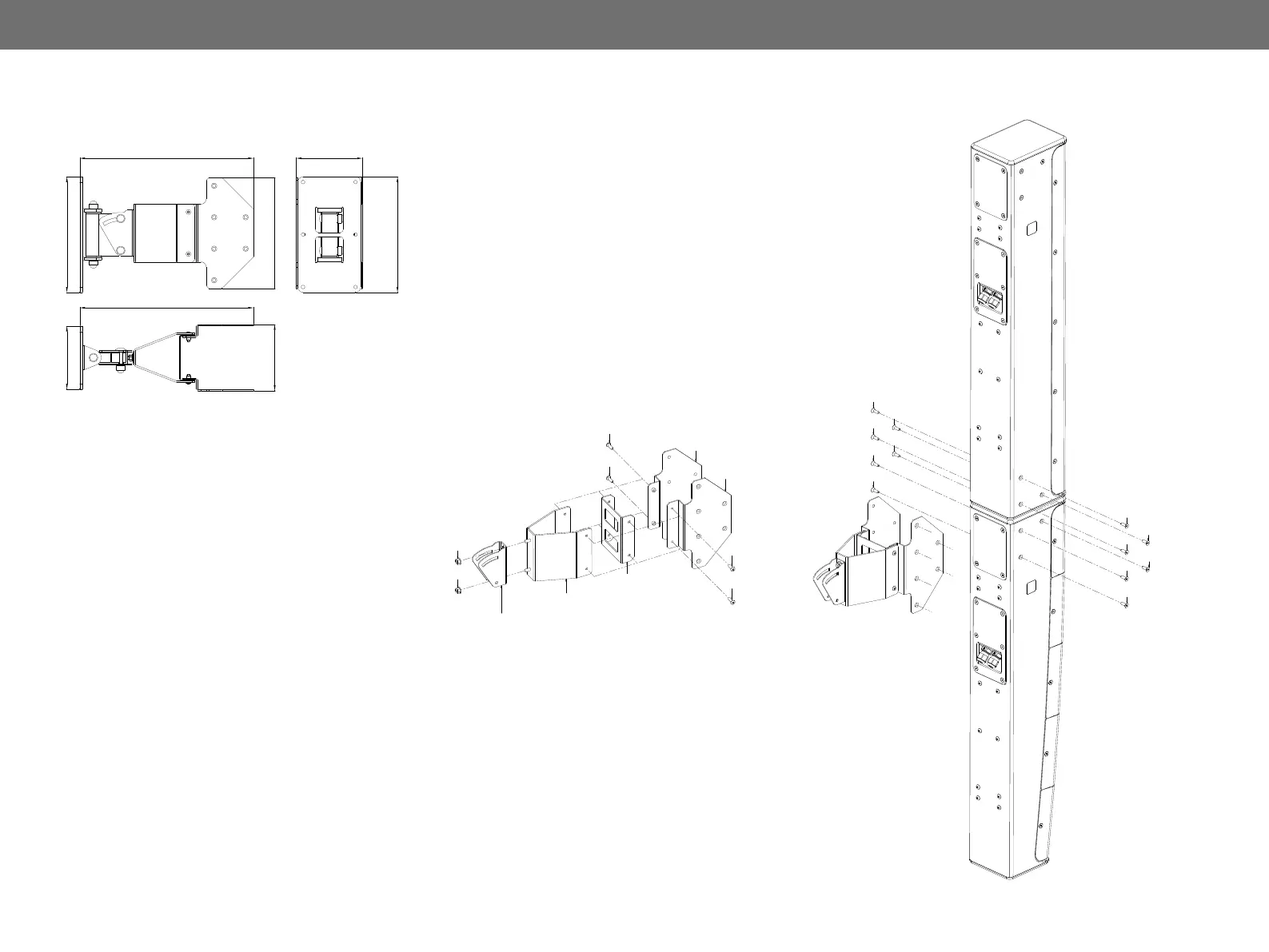

5.4 Swivel and tilt bracket for two loudspeakers
331
126
220
211
220
331
120
126
1.) The delivery includes a pre-assembled mounting adapter for
attachment to the speakers (see positions 1 to 3).
2.) The swivel bracket is to be screwed to the mounting adapter,
for which two self-locking M6 nuts must be used.
3.) The mounting adapter must then be attached to the
loudspeaker enclosures. For this purpose, the M5 countersunk
screws provided in the respective enclosures must be used.
This assembly step is easiest with the enclosures lying on the
floor, whereby the screws should be screwed crosswise.
4.) Now the upper M8 carriage bolt with washers placed on both
sides must be inserted into the slotted hole at the head end of
the swivel bracket. It is first loosely screwed with the M8 nut.
5.) Then the loudspeaker can be hooked into the swivel and tilt
bracket mounted on the desired surface (e.g. wall) with the
help of the previously inserted M8 carriage bolt. With the help
of the second M8 carriage bolt, which is inserted into the lower
hole, the second connection is made.
6.) Now the desired vertical tilt angle can be set by tightening all
screws. Furthermore, the original assembly instructions of the
manufacturer enclosed with the delivery apply.
7.) Finally, the M8 protective caps can be fitted onto the carriage
bolts.
1
1
2
3
4
5
5
5
5
6
6
7
7
7
7
7
7
7
7
7
7
7
7
5 Mounting instructions for mechanical accessories
