PREMIUM PR:O passive 2.0

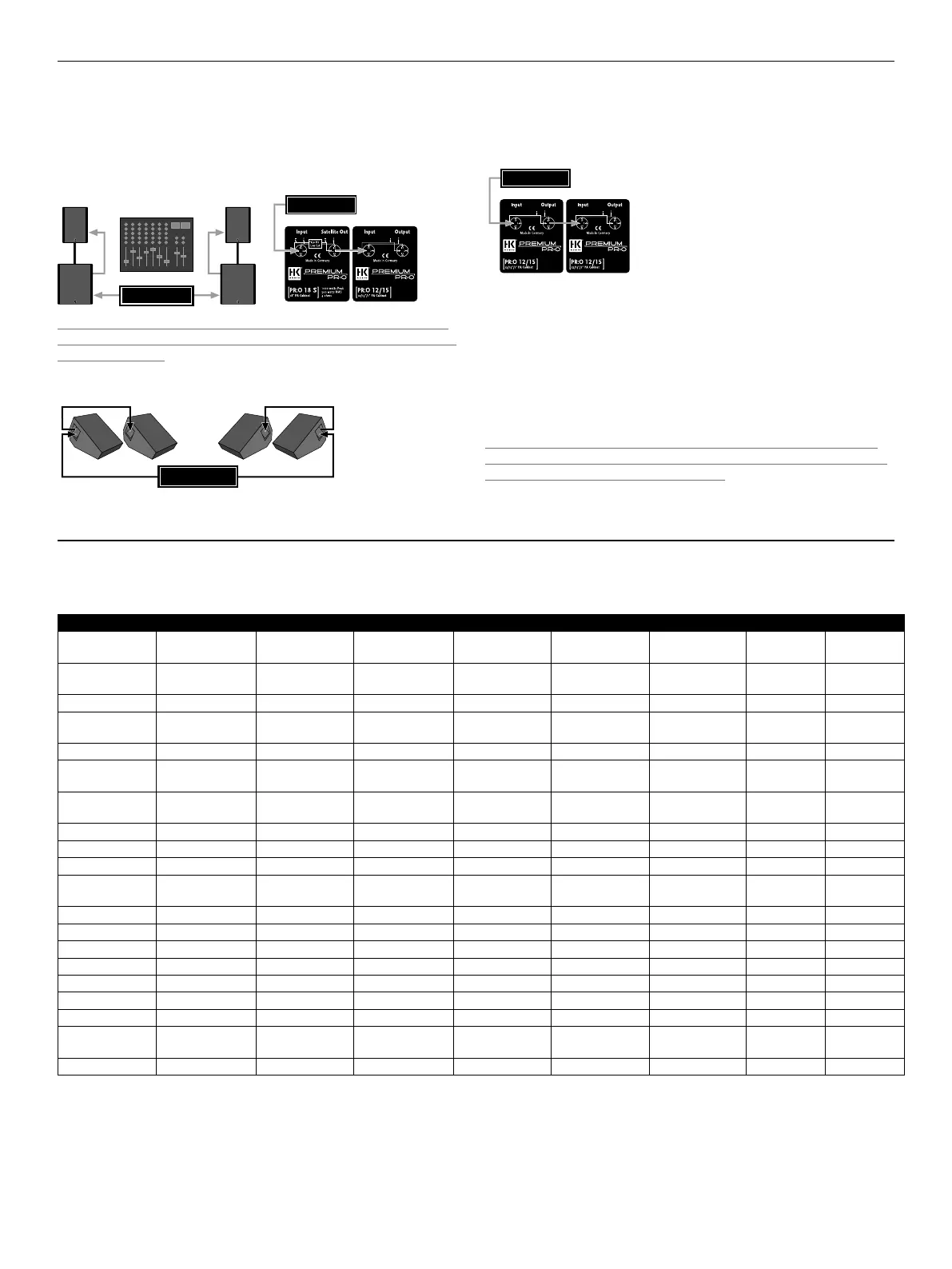

2.2 PR:O 8 / 10 X / 12 / 15 / 15 X in Satellite Mode with the

PR:O 18 S or the PR:O 210 S

First connect the speaker output of the powered mixer or power amp to the

subwoofer’s input, and then connect the subwoofer’s SATELLITE OUT to

the PR:O 8, PR:O 10 X, PR:O 12, PR:O 15 and PR:O 15 X full-range cabinet’s

input (IN).

Power Mixer

Poweramp

Note: The nominal impedance of systems consisting of a combination

of PR:O 18/210 S and PR:O 8, PR:O 10 X, PR:O 12, PR:O 15 and PR:O 15 X

cabinets is 4 ohms!

2.3 PR:O 10 X, PR:O 12 M and PR:O 15 X

Monitor Amp

Connect the monitor power amp’s speaker output to the PR:O 10 X, PR:O 12

M und PR:O15 X monitor’s input (IN). Depending on the type of power amp

or powered mixer that you are using, several PR:O 10 X, PR:O 12 M und PR:O

15 X monitors can be connected in parallel to one power amp channel.

Poweramp

Note:

• When two PR:O 10 X, PR:O 12 M and PR:O15 X monitors are -connected in

parallel, overall impedance is 4 ohms.

• When three PR:O 10 X, PR:O 12 M and

PR:O 15 X monitors are connected in parallel, overall impedance is 2.7

ohms.

• When four PR:O 10 X, PR:O 12 M and PR:O 15 X monitors are connected in

parallel, overall impedance is 2 ohms.

Caution: Do not allow the overall nominal impedance of the connected

monitors to fall below the power amp channel’s minimum impedance! If

it does, you risk destroying the power amp!

4 Technical Speciﬁ cations

Model PR:O 8 PR:O 10 X PR:O 12 PR:O 12 M PR:O 15 PR:O 15 X PR:O 210 S PR:O 18 S

Frequency response

+/- 3 dB

89 Hz – 19 kHz 95 Hz – 19 kHz 68 Hz – 19 kHz 70 Hz – 19 kHz 60 Hz – 19 kHz 60 Hz – 19 kHz 60 Hz – 150 Hz 48 Hz – 150 Hz

Frequency response

-10 dB

63 Hz – 19 kHz 80 Hz – 19 kHz 60 Hz – 19 kHz 63 Hz – 19 kHz 53 Hz – 19 kHz 53 Hz – 19 kHz 40 Hz – 150 Hz 38 Hz – 150 Hz

Max SPL @ 10% THD* 122 dB 126 dB 128 dB 128 dB 128 dB 128 dB 126 dB 129 dB

Axial sensitivity

1 W @ 1m*

97 dB 99 dB 104 dB 104 dB 104 dB 104 dB 101 dB 104 dB

Power handling, peak 1200 W 1200 W 1200 W 1200 W 1200 W 1200 W 1500 W 1,500 W

Power handling,

program

600 W 600 W 800 W 800 W 800 W 800 W 1,000 W 1,000 W

Power handling, nom.

(RMS)

300 W 300 W 400 W 400 W 400 W 400 W 500 W 500 W

Speaker 1x 8" 1x 10" 1x 12" 1x 12" 1x 15" 1x 15" 2x 10" 18"

HF driver 1" 1" 1" 1" 1" 1" - -

Impedance 8 ohms 8 ohms 8 ohms 8 ohms 8 ohms 8 ohms 4 ohms 4 ohms

HF protection

(passive)

Dyn. protective circuit Dyn. protective circuit Dyn. protective circuit Dyn. protective circuit Dyn. protective circuit Dyn. protective circuit - -

Horn dispersion 80° x 80° CD horn 90° x 60° CD horn 60° x 40° CD horn 60° x 40° CD horn 60° x 40° CD horn 60° x 40° CD horn - -

X-over frequency 2.5 kHz, 12 dB/oct. 2.2 kHz, 12 dB/oct. 2 kHz, 12 dB/oct. 2 kHz, 12 dB/oct. 2 kHz, 12 dB/oct. 2 kHz, 12 dB/oct. 150 Hz, 12 dB/oct. 150 Hz, 12 dB/oct.

Connectors 2x Speakon NL4 2x Speakon NL4 2x Speakon NL4 2x Speakon NL4 2x Speakon NL4 2x Speakon NL4 2x Speakon NL4 2x Speakon NL4

Angles up - 30° - 30° - 45°

Pole mount MonoTilt 3° DuoTilt 3°/7° DuoTilt 3°/7° - DuoTilt 3°/7° DuoTilt 3°/7° 2x M20 1x M20

Rigging/ pick points 3x M8 3x M8 3x M8 - 3x M8 3x M8 - -

Casters - - - - - - - Optional 100 mm

Dimensions (W x

H x D)

27 x 42 x 27.5 cm 32 x 48.5 x 30 cm 41 x 58 x 37 cm 39 x 56 x 38 cm 47.5 x 62 x 41.5 cm 47.5 x 62 x 45 cm 36 x 61 x 53 cm 53 x 61 x 64 cm

Weight 10 kg / 22.1 lbs 12.9 kg / 28.4 lbs 18.5 kg / 40.8 lbs 16.5 kg / 36.4 lbs 22.5 kg / 50.8 lbs 22 kg / 48.5 lbs 26 kg / 57.3 lbs 40 kg / 88.2 lbs

Recommended power output: Use amps that deliver between 600 and 800 watts RMS per channel @ 4 ohms to drive PREMIUM PR:O enclosures. Ensure the amp’s peak power

output is at least 1,200 watts per channel @ 4 ohms to leave enough headroom for dynamic musical signals.

*) All measurements taken under half-space conditions. **) Active x-over frequency at 24 dB/ octave
